M2T, M2TND, M2T/E01, M2TND/E01, M2T/E02, M2T/E06

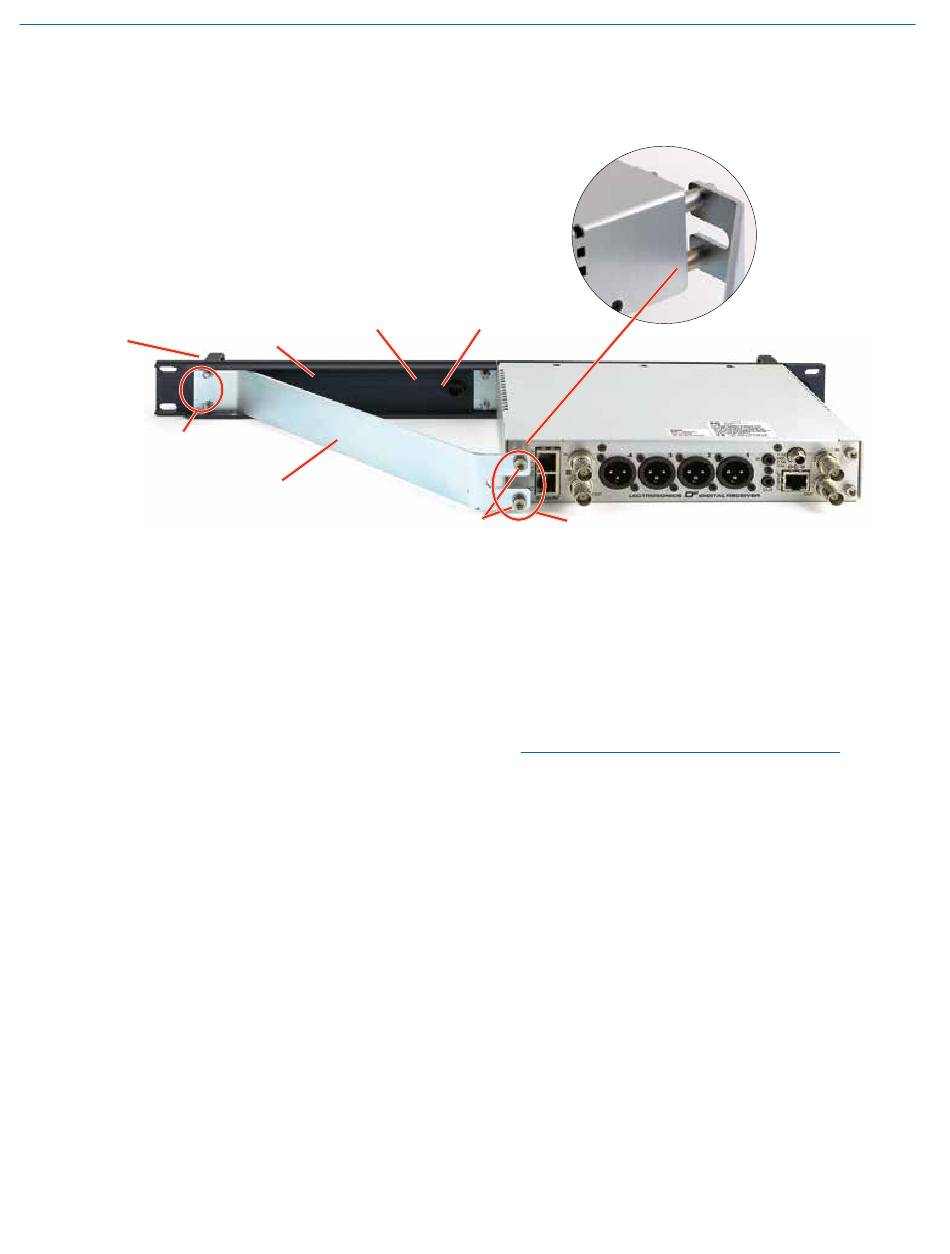

DSQD Rear View
Rack Handle
(Part #27082)
STEP 9
(rear)
Installing One DSQD into a Single Rack
The process to install the DSQD is the same as for the
M2T transmitter through Step 7. The DSQD looks similar
to the M2T in the frontal view. Follow the steps for the
M2T, then resume at Step 8:
8. Use the Hex Wrench to remove the two (2) in-
board Cap Screws from the rear of the DSQD. Put
them aside and save for later use or spares; you
will not need them for this installation. Install the
Support Bracket (Part #27077) to the rear panel
of the DSQD, using the two (2) long mounting
screws, threaded with Spacer Tubes, and firmly
tighten with the Hex Wrench. See rear view image
and call-out photo above. The kit is designed
to handle the M2T and the DSQD with a shorter
chassis, so the spacers are included.
9. Insert two (2) Cap Screws (Part #28885) through
the Rack Handle (Part #27082) holes and install
the Rack Handle onto the right side Front Fill
Panel (Part #27081) through the holes in the
panel, and into the nuts on the Support Bracket
(Part #27076). Firmly tighten the Cap Screws
using the long leg of the Hex Wrench.
10. Unless also installing a Front Mounted Antenna,
insert the Hole Plug (Part #35959) into the open
antenna hole in the Front Fill Panel (Part #27081)
by aligning the flat sides of the plug with those of
the bracket hole and pushing into place until flush.
18
STEP 10
(rear)
Front Fill Panel
(Part #27081)
Support Bracket
(Part #27077)
Long Screws
(Part #28950)
Front Tie Bracket
(Part #25991)
STEP 8
The DSQD with Front Fill Panel is now ready for
installation into a rack.
NOTE: As with the M2T, if the supplied rubber
foot/feet are installed on under side of the
DSQD, it will not fit in a single rack space.
Spacer Tubes
(Part #28951)
