Installing two M2T, M2T/E01, M2T/E02,
M2T/E06 Transmitters into a Single Rack
Space
The M2T, M2T/E01, M2T/E02, M2T/E06 transmitter oc-
cupies a half rack space, and comes with hardware to
mount two transmitters into a single rack space.

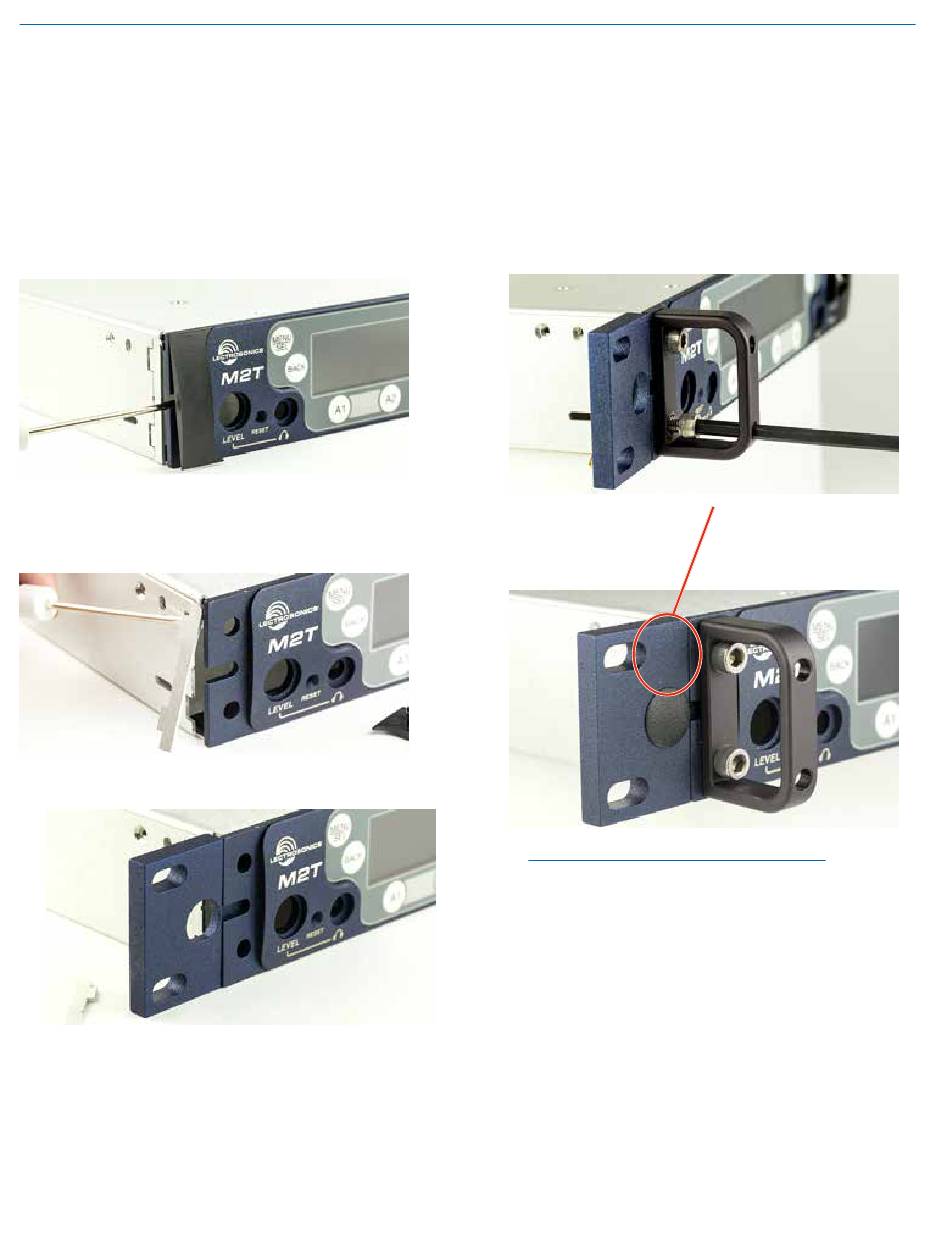

1. Remove the Trim Cap (Part #P1330) from both
sides of the front panel on both transmitters.
2. Remove the breakaway tabs on both sides of the
chassis side panels. Use a flat blade screwdriver
to pry the tabs outward and snap them off of the
chassis.
3. Insert the flange bracket (Part #27076) into the
open slot in the side of the chassis cover panel.
14
4. Insert two (2) cap screws (Part #28885) through the
rack handle (Part #27082) holes and install the rack
handle onto the flange bracket through the holes in
the unit's front panel. Firmly tighten the cap screws
using the hex key (Allen wrench) as shown.
5. If antennas will NOT be mounted on the front
panel of the transmitters, install the hole cap (Part
#35959) by aligning the flat on the cap with the flat
on the opening.
NOTE: The retaining nuts on the panel and
tie brackets are "tensioning lock nut" types
designed to prevent the screws from coming
loose due to vibration. You will usually feel
resistance as you tighten the screws - this is
normal.
