- Page 1 EOS Shark Heater for Sauna Cabins Installation and Operating Instructions...
-
Page 2: Documentation
E-Mail: info@eos-sauna.de Web: www.eos-sauna.de D-35759 Driedorf Original installation instructions EN Copyright for these installation instructions remains with EOS Saunatechnik GmbH. Copyright as per DIN ISO 16016: The copying and distribution of this document, as well as the use and commu- nication of its contents without express authorisation, are not permitted. -
Page 3: Table Of Contents
Table of contents Documentation ............................. 2 General safety instructions.......................4 Identification ..........................9 2.1. Requirements for operation ...................9 2.2. Nameplate ..........................9 2.3. Intended use ........................9 2.4. Foreseeable misuse ......................10 2.5. General instructions .......................10 2.6. Scope of delivery ......................11 2.7. Technical data ........................12 Installation ...........................13 3.1. -
Page 4: General Safety Instructions
General safety instructions 1. General safety instructions Safety levels Safety instructions and important operating instructions are classified. Please familiarise your- self with the following terms and symbols: WARNING Warning Indicates a hazardous situation which, if not avoided, could result in death or serious injury. - Page 5 General safety instructions 1.1 Mounting and electrical installation These installation instructions are intended for qualified personnel familiar with the laws and regulations applicable to electrical installations at the installation site. Observe the following general safety instructions during mounting, configuration and commissioning of the product. Risk to life and limb and risk of fire ►...
- Page 6 General safety instructions Sauna cabin and sauna heater ► The sauna cabin must be constructed with proper material and built in a professional man- ner, and the output of the sauna heater must be suited for the cabin. The sauna heater may only be used in sauna cabins made of suitable, low-resin ƒ...
- Page 7 General safety instructions 1.2 Operator instruction The operator of the sauna cabin must be instructed in the general safety instructions dur- ing commissioning. The operator must be given a copy of the operating instructions. Risk of electric shock ► A risk to life and limb from electric shock and fire arises in the event of improper repair work.
- Page 8 Children must be supervised to ensure they do not play with the unit. ƒ 1.3 Standards and regulations For an overview of the standards that were observed during design and construction of the sauna heaters, please refer to the individual product’s technical data sheet that can be downloaded from www.eos-sauna.com.
-
Page 9: Identification

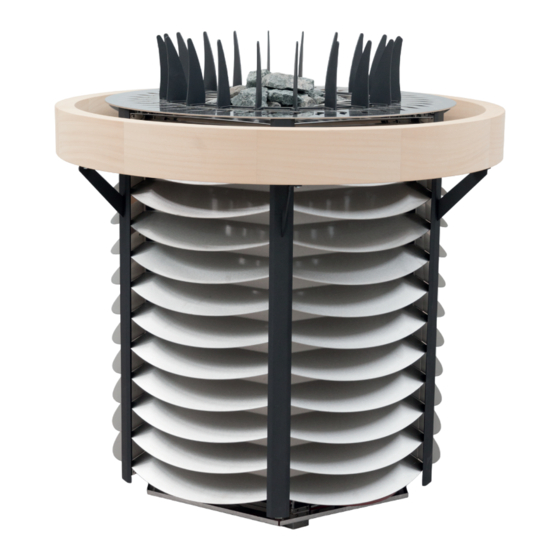

Identification 2. Identification EOS Shark is an electrically heated sauna heater for Finnish mode available in a variety of output capacities. 2.1 Requirements for operation The heater must be operated together with an EOS control unit that is specified in the technical data of these instructions. -
Page 10: Foreseeable Misuse
Identification 2.4 Foreseeable misuse The following are considered instances of foreseeable misuse: ƒ The unit is operated without knowledge of or compliance with the safety instructions. The requirements for operation, servicing and maintenance are not met. ƒ The unit is operated by children under 8 years of age. ƒ... -
Page 11: Scope Of Delivery
Identification 2.6 Scope of delivery Please verify upon delivery that all components included in the standard scope of de- livery are available. Missing parts shall be reported to your local dealer (supplier). Standard delivery includes: Sauna heater Warning sign for wall mounting and nameplate to attach on the sauna heater Sauna stones, 50 kg, Calibre 50–100 mm 2 x Connecting cable, 8 m, pre-mounted Installation instructions... -
Page 12: Technical Data
4 x 1.5 mm² All line cross-section specifications are the minimum cross-sections for the copper line. Depending on the installation location and structural conditions, forced ventilation must be provided! With EOS Compact D18, no LSG 10 power extension unit is required. -
Page 13: Installation
Installation 3. Installation This chapter describes how to install the EOS Shark sauna heater. Prior to installing the heater, air inlets and outlets must be installed in the cabin. It may be necessary to install additional fans in the inlets/outlets. -
Page 14: Unpacking And Setting Up The Sauna Heater
Minimum distances and dimensions A. Cabin ceiling Temperature sensor C. Heater guard D. Shark heater 3.2 Unpacking and setting up the sauna heater Remove the transport packaging. Remove the transport locks and protective foils from the product. Separate the transport packaging, transport locks and protective films and dis- pose of them properly. - Page 15 Installation WARNING Risk of fire due to insufficient ventilation The sauna heater may overheat if the air supply is insufficient. There is a risk of death due to fire. Ensure that the air inlets and outlets provide sufficient ventilation. Install a fan if ►...
-
Page 16: Temperature Sensor
Installation ► Air supply at the side /at the rear When installing near the cabin wall, the air intake must be located as shown. Please note the minimum dimensions (see Technical Data section). A. Air inlet min. Cabin wall Possible positions of the air intake 3.4 Temperature sensor The installation of the temperature sensor with the safety temperature limiter (STL) is... - Page 17 Installation A. Centre line Temperature sensor with C. Side with connection box D. Warning sticker Temperature sensor installation - view from above WARNING Risk of fire due to incorrect temperature sensor position Overheating can occur if the temperature sensor with the safety temperature limiter is installed in the incorrect position;...
-
Page 18: Heater Guard Rail Installation (Optional)
The heater guard rail must be mounted at least around the upper edge of the heater. It prevents accidental contact with hot parts of the heater. A suitable heater guard rail for the Shark heater is available as an optional accessory. See 2.6 Scope of Delivery, Optional Accessories C. -
Page 19: Electrical Installation
IEC and EN standards. For safety reasons, this timer limits the operation time. This timer is typically integrated in all EOS sauna control units. The operation time of a public sauna must be limited so that the heating ƒ... - Page 20 Electrical installation Connection overview ► Saunasteuergerät Saunaofen Leistungsschaltgerät Control unit Sauna heater Power extension unit Boîtier de commande Poêle de sauna Extension de puissance Netz / Mains / Réseau / Terminal diagram Connection diagram ► Sensor/ Saunasteuergerät / Control unit / Limiter Saunaofen / Sauna heater Boîtier de commande / Пульт...
- Page 21 Electrical installation Connection overview 12 - 18 kW to Compact D18 ► Saunasteuergerät Saunaofen Control unit Sauna heater Boîtier de commande Poêle de sauna Netz / Mains / Réseau / Terminal diagram to Compact D18 Connection diagram 12 - 18 kW to Compact D18 ►...
-
Page 22: Internal Wiring
Electrical installation 4.4 Internal wiring 12 kW 15 kW 18 kW (Gr) (Gr) (Gr) L1 L2 L3 L1 L2 L3 L1 L2 L3 L1 L2 L3 L1 L2 L3 L1 L2 L3 (Gr) (Gr) (Gr) 21 kW 24 kW (Gr) (Gr) L1 L2 L3 L1 L2 L3... -
Page 23: Commissioning
Commissioning 5. Commissioning Before the heater can be commissioned (switched on), it must be filled with sauna stones, which are available as optional accessories. The heater is switched and controlled via the control unit. A power extension unit (LSG), if available, will be switched together with the sauna control unit. WARNING Fire hazard Objects placed on the heater could catch fire. -
Page 24: Starting The Heater
Commissioning ► Filling the rock store Wash the stones under running water. WARNING! Sauna stones that are stacked too tightly obstruct the flow of air. The heater could overheat. Place the stones loosely. Fill the stones into the rock store up to the top edge. Leave sufficient space between stones. -
Page 25: Water Splash
Commissioning 5.4 Water splash Before the first water splash can begin, the cabin must be sufficiently heated. The tem- perature in the cabin is controlled from the control unit via the temperature sensor. The control panel indicates when the desired temperature has been reached. WARNING Fire hazard from overheating Incorrectly diluted sauna essences, essential oils or herbs can catch fire. -
Page 26: Service
Service 6. Service This sauna heater is made of low-corrosion material. To ensure a long service life, take care of and perform regular maintenance on your sauna heater. Ensure that openings in the intake area and heat reflectors are never blocked. These can easily become blocked with lint and dust as fresh air is drawn in. -
Page 27: Sauna Stones
Service 6.2 Checking and replacing the sauna stones Heating and cooling can cause the sauna stones to become brittle, or aggressive in- fusions can corrode them and cause them to disintegrate over time. This causes small particles to break free from the stones making the gaps between the stones smaller. This means that hot air can no longer rise between the stones. -
Page 28: Maintenance
Maintenance 7. Maintenance 7.1 Replacing the heating elements The following description explains how to replace a heating element. The connec- tion terminals for the connection cable are located in the middle on the detachable sides of the sauna heater. Staffing required: Qualified electrician Personal protective equipment: Safety gloves... - Page 29 Maintenance Loosen the six screws (C) of the cover and the eight screws (D) of the stone cage. (F2) Opening the connection ► Remove the complete cover (E). Now loosen the screws (F1) at the bottom side of the bar (F), and remove the screws (F2) at the top from the side.
- Page 30 Maintenance Replacing heating elements ► Identify the defective heating ele- ment by measurement. 10. Disconnect both flat plugs from the defective heating element. 11. Loosen the two fastening nuts (K1) and the serrated washers of the defective heating element (K2). 12.
-
Page 31: Troubleshooting
Troubleshooting 8. Troubleshooting Error Reason Solution It takes the heater a long One or more than one heating Have a technician replace the time to heat up the cabin. element is defective. tubular heating element. There is not enough space Reshuffle the stones. -
Page 32: Disposal
ƒ Used paper/cardboard/wood ƒ Plastic foil Electronic waste ► Electronic waste must be disposed of at the designated local collection point for elec- tronic waste. Additional disposal instructions for commercial users (DE only) You can find further disposal instructions under www.eos-sauna.com/recycling... -
Page 33: General Terms And Conditions Of Service
General Terms and Conditions of Service 10. General Terms and Conditions of Service (T&C, Dated 08-2018) 10.1 Scope Unless otherwise agreed in writing for specific instances, these terms and conditions of service apply to service operations, including checking and remedying complaints. All our existing or future legal relationships shall be governed solely by the following terms and conditions of service. - Page 34 Complaints in respect of our products shall be reported to the responsible distributor and shall be handled exclusively by said distributor. The manufacturer’s General Terms and Conditions of Business, in the version available at www.eos-sauna.com/agb, shall apply in addition to the foregoing terms and conditions of service.
- Page 36 made in Germany Stand 40/2023 Print-no. 2902 4949 IPx4 All rights reserved.
