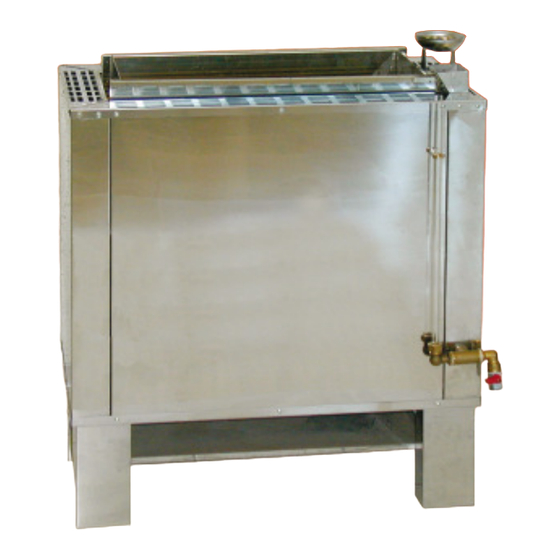

- Page 1 Bi-O Star Supplementary sheet for manual Saunaheater 34.G MADE IN GERMANY Druck Nr. 29342620en 25.09...
- Page 2 Mount upper bracket with screwed-in tap- ping screw. Now, insert glass tube top down and press Please consider all important installation it into upper bracket (Fig 2). instructions of this instruction manual. Additionally, this heating device has an evaporator element. Please note that it is necessary to use a control unit for the operation with wet hot air.
- Page 3 Bi-O-Star 21 - 30 kW with 2 Vapo- Kräuterschale risers at 2 kW Glass tube vaporiser power 4 kW In the case that 2 vaporisers are being operated at the same time, it is necessary to note that both vaporisers are laterally shif- ted, in order to guarantee that no vaporiser bag runs dry.
- Page 4 Please cut the length of the silicone-hose value comparison at the sensor, or which will that in connection between the two connec- be determined via a clock pulse. tion-pieces, left and right, the centre of the Please note that the relative humidity values hose does not drop down.
-
Page 5: Technical Specifications
your sauna bath, you can add water into the Decalcifying the Vaporiser storage tank after the control unit had been Please ask your local supply company put to „Stop“ 5 minutes before or has been for the hardness of your water. Within the operated for 5 minutes in the mode „Finnish hardness degree I (1-7 German Degrees Sauna“. -
Page 6: Connection Diagram
Connection diagram 15 - 18 kW 21 - 30 kW 4 kW 2 kW 2000W 2000W 2000W Connection control panel Connection con- C o n n e c t i o n trol panel circuitbraeker device Connecting Connecting Connecting Connecting Vaporicer Connecting Capacity...
