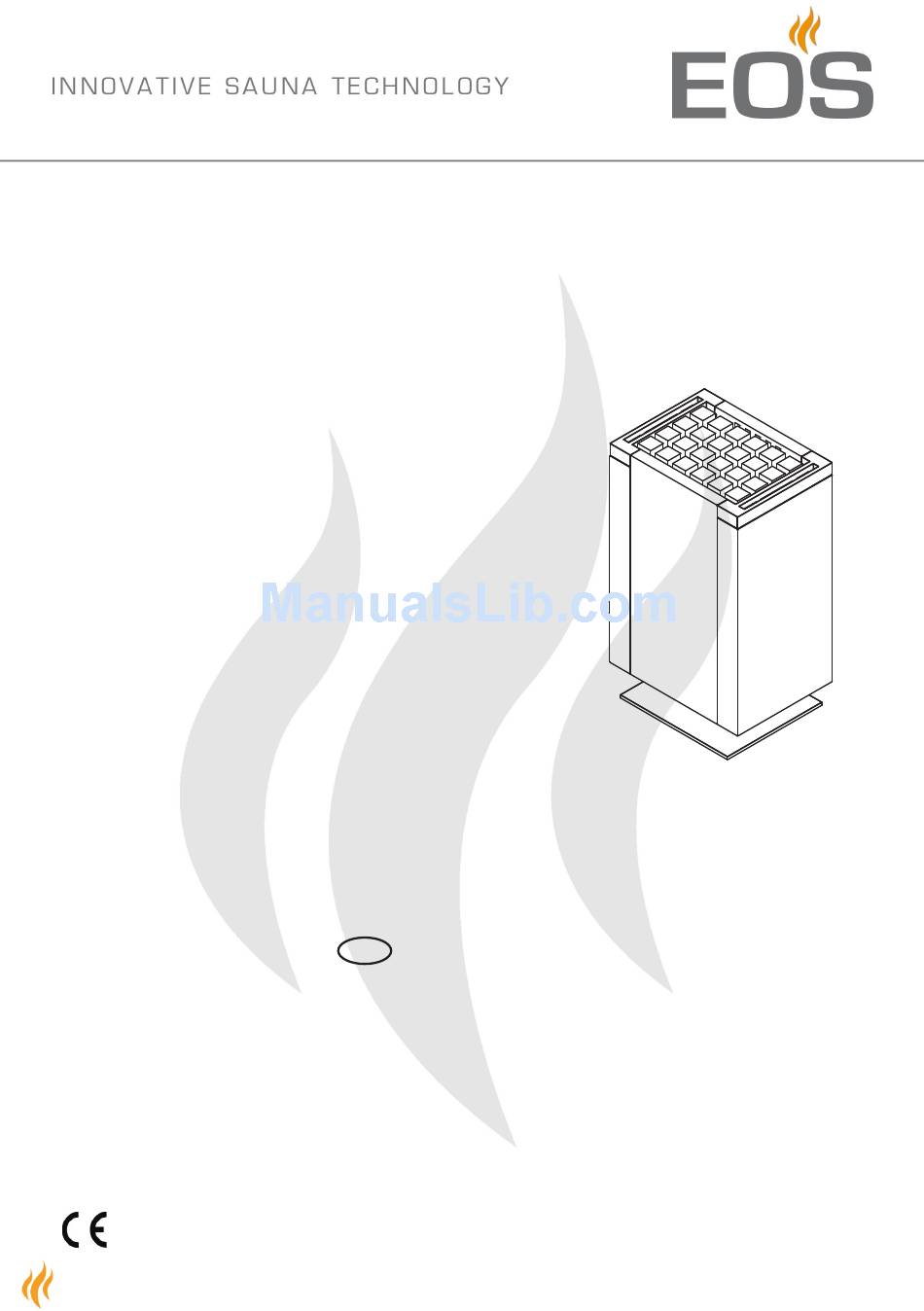

- Page 1 Mythos S34 / S45 sauna heater Installation and operation manual MADE IN GERMANY Image above shows optional equipment. print no. 29344483en / 05.13...
-
Page 2: Table Of Contents
English Contents Intended use..............................3 General notes ..............................3 Important notes ............................4 Electrical connection Example of connections for Mythos S35 and S45 ................6 Example of connections for Mythos S35 Vapor and S45 Vapor ..........7 Installation Scope of delivery ..........................8 Specifications ............................8 Minimum clearances ...........................8 Heater foot sealing installation .......................9 Cable connections ..........................9 Installation of „Cubic“... - Page 3 General information Dear customer You have purchased a high-quality technical de- Please check whether the unit has arrived in per- vice with which you will have years of sauna fun. fect condition. Any transport damages should be This sauna heater was designed and inspected immediately reported to the freight forwarder according to the current European safety stan- delivering the goods or you should contact the...
-
Page 4: Intended Use
Important notes required heating output may be installed in the sauna cabin. Unprofessional installation • Please provide air intake and vent • may cause a fire hazard! Please openings in each sauna cabin. read these installation instruc- The air intakes must always be tions carefully. - Page 5 sauna heater. Please see the table for the mi- nimum cross-section of the con- Caution: The high sauna he- nection cable and the suitable • ater temperatures generated du- cabin size in relation to the power ring operation can cause burns. input in kW.
-
Page 6: Electrical Connection
Electrical connection tion and instructions provided by the cabin manufacturer. Using the above-mentioned wiring diagram and the information on the wiring circuit ad- hered to the respective control system, your Please take precautions • electrician will be able to connect the system when cleaning components with without further instructions. -
Page 7: Example Of Connections For Mythos S35 And S45
Example of connections for Mythos sauna heaters 7,5 - 9 kW 7,5 kW 9 kW 7,5 kW 9 kW 400 V AC 3N 400 V AC 3N Saunasteuergerät control unit U V W N PE U V W N Netz / Main 12 - 15 kW Saunasteuergerät control unit... -
Page 8: Example Of Connections For Mythos S35 Vapor And S45 Vapor
Example of connections for Mythos Vapor heaters (optional) 7,5 - 9 kW 7,5 kW 9 kW optional 7,5 kW 9 kW 400 V AC 3N 400 V AC 3N Saunasteuergerät control unit ECON / EMOTEC U V W N PE U V W N Netz / Main 12 - 15 kW... -
Page 9: Installation
Installation Minimum clearances Scope of delivery The minimum height of the sauna cabin must be 1.90m on the inside. • 1 sauna heater incl. foot During the installation of the sauna heating • 1 set sauna stones (S35 - 35 kg / S45 - 45 kg) unit, make certain that the vertical clearance between the upper edge of the sauna heating Specifications... -
Page 10: Heater Foot Sealing Installation
Cable connections Installation of Cubic stones (optional) The connection terminal block is located at the rear side in the lower part of the heater. To access the terminal block proceed as fol- lows (Illust. 3): • Remove 2 fastening screws at the top inner side of the rear wall panel. -
Page 11: Dry Finnish Sauna Operation
Dry Finnish sauna operation In this mode the vaporizer is not in use. It is imperative to ensure that there are no herbs or essence in the holder, because they could dry out and catch fire. Essences or any other kind of additives to be added to the water shall be used only according to the manufacturers instructions. -
Page 12: Sauna Rocks
Sauna rocks Maintenance and care Sauna stones are a natural product. Check the All sauna heating units are made of low-corro- sauna stones at regular intervals. Aggressive sion material. To enjoy your sauna heating unit sauna essensces can weaken the sauna stones for a long time you should ensure maintainance and cause them to break apart over time. -
Page 13: Special Installation Advice
For the installation of sauna heaters, please Installation of the sauna heater and control pay attention to the DIN VDE 0100 part 703 ! unit must be undertaken only by an authorized electrician. Without a documented proof of This standard makes the following statement such installation a warranty is generally void. -
Page 14: Service Address
Outside of Germany please contact your spe- cialist dealer in case of warranty claims. Direct Service Address: warranty processing with our service depart- ment is in this case not possible. EOS Saunatechnik GmbH Adolf-Weiß-Straße 43 Equipment commissioning date: 35759 Driedorf-Mademühlen, Germany Tel: +49 (0)2775 82-514... -
Page 15: Handling Procedures For Return Shipments (Rma) - Details For All Returns
Handling procedures for return shipments (RMA) - Details for all returns ! Dear customer we hope that you will be satisfied with the purchased EOS product. In the rear case if you may have a claim and will need to return a product, please follow the procedures specified below.
