- Page 1 6 DEALER MANUAL FOR H500F (RM G060.350.DC) CONTENT 6.1 Introduction 6.3 Drive Unit Installation 6.2 Specifications 6.3.1 List of Tools to be used 6.2.1 Outline and geometric size 6.3.2 Motor Installation 6.4 Maintenance 6.2.2 Surface 6.2.3 Storage Information BF-DM-C-RM G060-DC-EN November 2019...
- Page 2 6.1 INTRODUCTION • Scope Applies only to electrically powered pedelecs developed or licensed by Bafang. It is suitable for fat bikes or all terrain bikes, which have been developed for off road on gravel or sand use. The engine is not suitable for sport competi- tions.

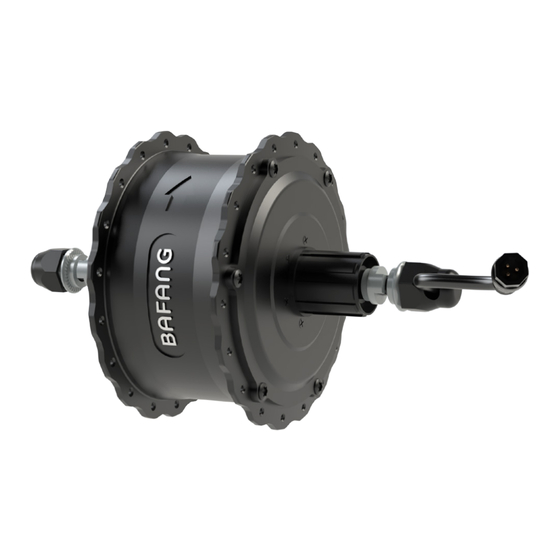

- Page 3 6.2 SPECIFICATIONS Motor model: RM G060.350.DC Rated power (W) Rated voltage (V) Waterproof IP65 Certification CE - EMC Outdoor Temperatures -20℃~45℃ 6.2.1 Outline and geometric size OLD: 175mm Shaft length: 235mm Motor cable length: L=250mm 6.2.2 Surface Shockproof black coating 6.2.3 Storage Information The pedelec should be stored in a ventilated dry room.
- Page 4 6.3 DRIVE UNIT INSTALLATION 6.3.1 List of Tools to be used Use of the Tools Tools To tighten/loosen the M5*8 screws onto the disc brake. Internal hex wrench To tighten/loosen the M12 flange nuts. Open spanner 6.3.2 Motor Installation First mount the cassette on the cassette Insert the motor into the frame.
- Page 5 Tighten clockwise M12 flange nuts with Mount the shaft end sheath on both sides open spanner at both sides of the motor. of the shaft ends. (torque requirement: 47-60 N.m.) 6.4 MAINTENANCE • Maintenance must be carried out by autho- rized personnel with the correct equipment.
- Page 6 BF-DM-C-RM G060-DC-EN November 2019...
