6 DEALER MANUAL FOR H600 (FM G370.250.D) CONTENT 6.1 Introduction 6.3 Drive Unit Installation 6.2 Specifications 6.3.1 List of Tools to be used 6.2.1 Outline and geometric size 6.3.2 Motor Installation 6.4 Maintenance 6.2.2 Surface 6.2.3 Storage Information BF-DM-C-FM G370-D-EN November 2019... -
Page 2: Introduction
6.1 INTRODUCTION • Scope Applies only to electrically powered pedelecs developed or licensed by Bafang. It is suitable for city, trekking and road bikes, which have been developed for road use. The engine is not suitable for sport competitions. • Identification... -
Page 3: Specifications

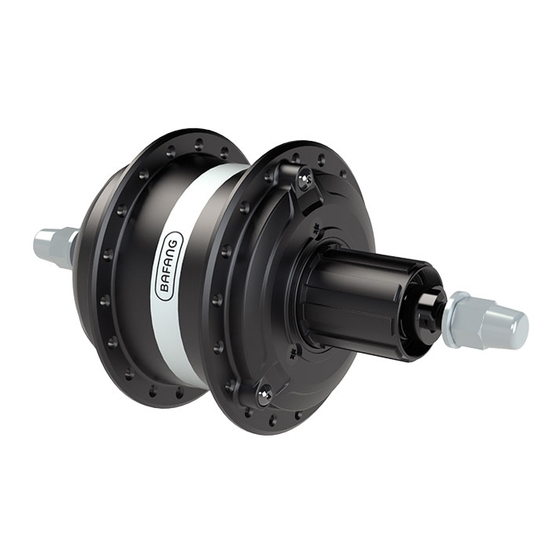

6.2 SPECIFICATIONS Motor model: FM G370.250.D Rated power (W) Rated voltage (V) 36 / 43 Waterproof IP65 Certification Outdoor Temperatures -20℃~45℃ 6.2.1 Outline and geometric size OLD: 100mm Shaft length: 142mm Motor cable length: L=250mm (optional) 6.2.2 Surface Shockproof black and silver coating 6.2.3 Storage Information The pedelec should be stored in a ventilated dry room. -
Page 4: Drive Unit Installation
6.3 DRIVE UNIT INSTALLATION 6.3.1 List of Tools to be used Use of the Tools Tools To fasten BC3/8 cap lock-nuts Open-end wrench To fasten the screws on disk brake Internal hexagonal wrench 6.3.2 Motor Installation First place the brake disc on to cable side Mount one 2mm washer on both sides of of the motor and tighten with six M5*8 the frame. -
Page 5: Maintenance
6.4 MAINTENANCE • Maintenance must be carried out by autho- rized personnel with the correct equipment. • Do not disassemble the motor. • Do not use thinners or other solvents to clean the components. Such substances can damage the surfaces. •... - Page 6 BF-DM-C-FM G370-D-EN November 2019...
