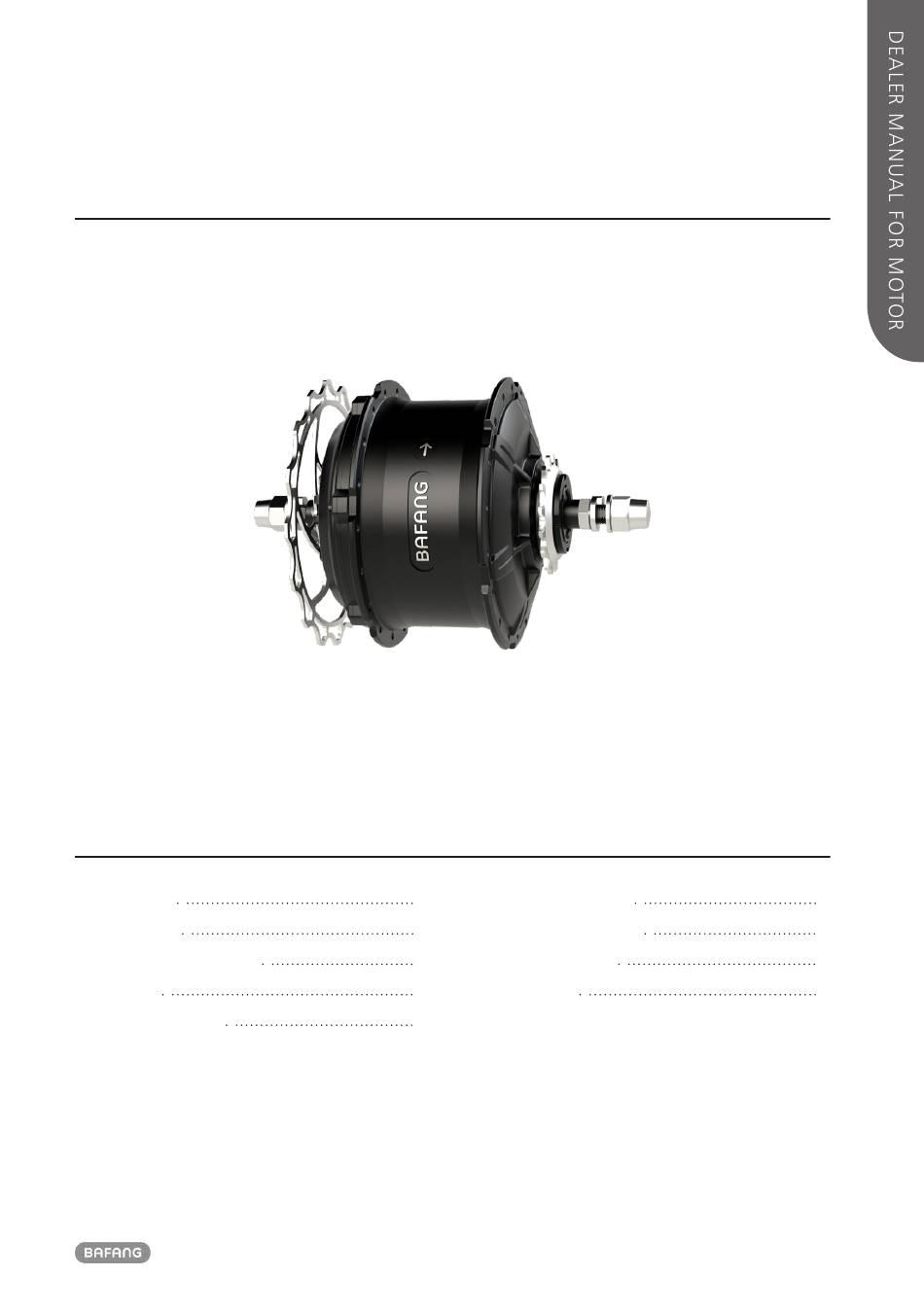

6 DEALER MANUAL FOR H550 (RM G06A2.750.D) CONTENT 6.1 Introduction 6.3 Drive Unit Installation 6.2 Specifications 6.3.1 List of Tools to be Used 6.2.1 Outline and Geometric Size 6.3.2 Motor Installation 6.4 Maintenance 6.2.2 Surface 6.2.3 Storage Information BF-DM-C-RM G06A2-D-EN July 2022... -
Page 2: Introduction
6.1 INTRODUCTION • Scope Applies only to electrically powered pedelecs developed or licensed by Bafang. It is suitable for fat bikes or all terrain bikes, which have been developed for off road on gravel or sand use. The engine is not suitable for sport competi- tions. -
Page 3: Specifications
6.2 SPECIFICATIONS Motor model: RM G06A2.750.D Rated power (W) Rated voltage (V) Waterproof IP66 Certification CE - EMC Outdoor Temperatures -20℃~45℃ 6.2.1 Outline and Geometric Size OLD: 175mm Shaft length: 230mm Motor cable length: L=250mm 6.2.2 Surface Shockproof coating and color according to customer's order. -
Page 4: Drive Unit Installation
6.3 DRIVE UNIT INSTALLATION 6.3.1 List of Tools to be Used Use of the Tools Tools To tighten/loosen the M12 flange nuts. Open spanner To tighten/loosen the screws onto the disc brake. Internal hex wrench 6.3.2 Motor Installation First place the disc brake on to the motor Mount stop pins and washers on both sides and tighten with six screws. -
Page 5: Maintenance
6.4 MAINTENANCE • Maintenance must be carried out by autho- rized personnel with the correct equipment. • Do not disassemble the motor. • Do not use thinners or other solvents to clean the components. Such substances can damage the surfaces. •...
