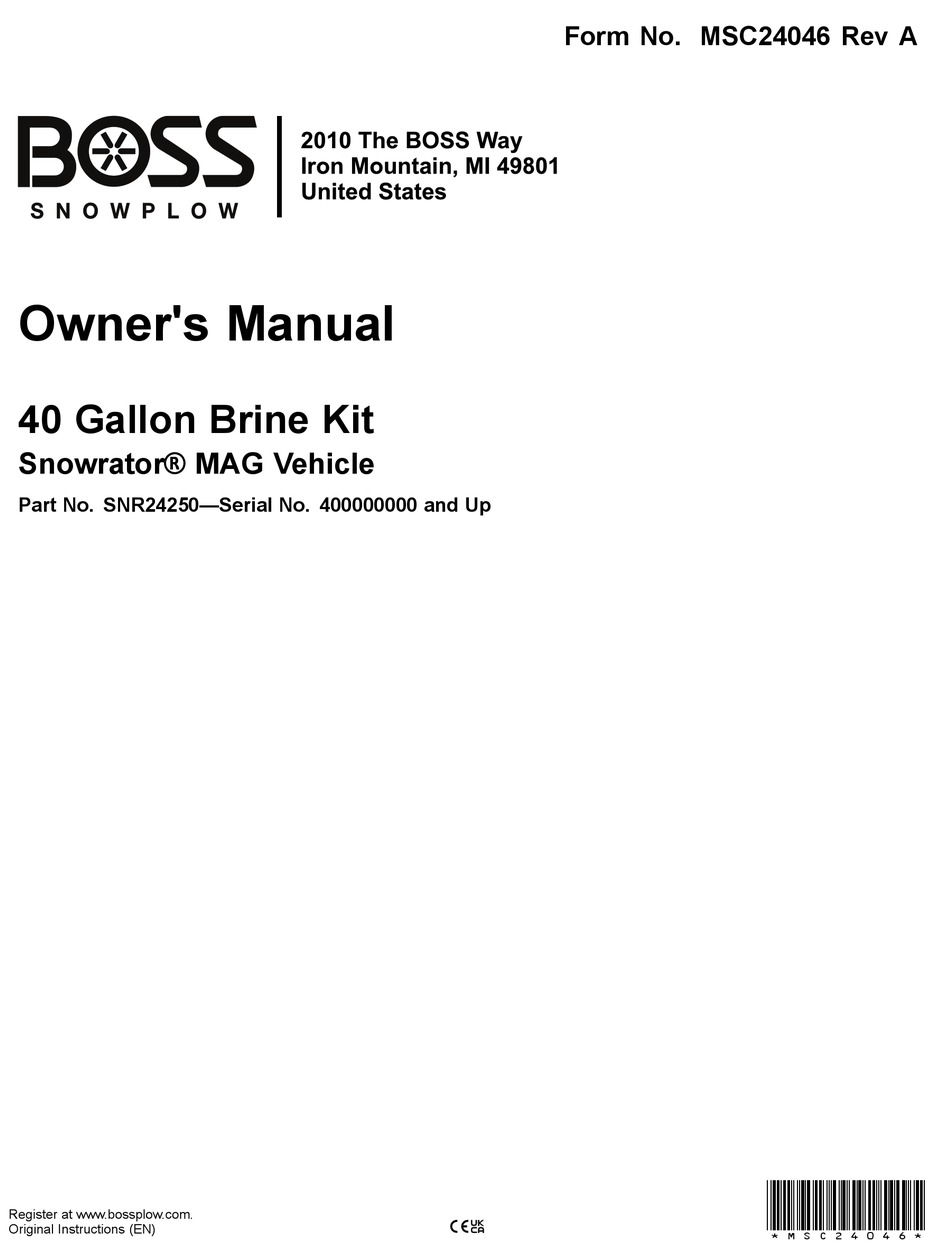

- Page 1 Form No. MSC24046 Rev A Owner's Manual 40 Gallon Brine Kit Snowrator® MAG Vehicle Part No. SNR24250—Serial No. 400000000 and Up *MSC24046* Register at www.bossplow.com. Original Instructions (EN)
- Page 2 BOSS Products limited consumer warranty and BOSS Date Products commercial warranty policies are located at Purchased www.bossplow.com. Model No. Patents www.ttcopats.com. Serial No. Blade Crate Introduction Serial No. This manual identifies potential hazards and has Note: This Brine Kit attaches to the Snowrator MAG. safety messages identified by the safety-alert symbol The Brine Kit is intended to be used by professional, (Figure...
-
Page 3: Table Of Contents
Contents Safety Improper use or maintenance by the operator or Safety ............... 3 owner can result in injury. To reduce the potential Preparation............3 Operation............3 for injury, comply with these safety instructions and always pay attention to the safety-alert Safety and Instructional Decals ...... -
Page 4: Safety And Instructional Decals
• This sprayer is restricted to the use of salt mix only. Do not run other materials through the spreader. • Do not attempt to mount or remove the spreader with material in it. • Do not store material in the spray tank. Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. -
Page 5: Setup
Mounting the Brine Tank to the Setup Machine Installing the Brine Tank Release the quick pins to open the hood. Assembly Preparing the Machine Park the machine on a level surface. Lower the attachment. Move the motion-control levers to the N EUTRAL position. - Page 6 Lift the brine tank assembly and align it with the Route the hose to the left side of the machine, hood. as shown below. Install the brine tank to the hood with the 4 hex-head flange bolts (1/2 x 1-1/4 inches) and 4 hex-flange nuts (1/2 inch).
- Page 7 Apply pipe sealant to the barb fitting and install it Secure the hose holder bracket to the right into the brine tube. pump cover with the 2 hex-head flange screws (5/16 x 1 inch). Install the hose to the brine tube and secure it with the hose clamp.
- Page 8 Secure the wand holder to the top of the dashboard with the 2 hex-head flange screws (5/16 x 1 inch) that were previously removed. g449057 Figure 17 g449045 Figure 15 Installing the Spray Wand Assembly Connect the spray hose to the spray wand. g449056 Figure 16 Apply pipe sealant to threads on the spray hose...
-
Page 9: Installing The Controller
Installing the Controller Remove the cushion from the machine. Remove the upper latch from the left side cover. g383797 Figure 20 g428939 Figure 18 Insert the controller into the opening and secure it with 4 bolts (#10) and nuts. 1. Upper latch 2. - Page 10 g428950 Figure 22 Install the upper latch to the left side cover. g428939 Figure 23 1. Upper latch 2. Side cover Install the cushion onto the machine.
-
Page 11: Product Overview
Product Overview g293836 Figure 25 1. Blast button 4. Slow button 2. Power button 5. Fast button 3. Speed LEDs • Power button—turns the sprayer controller on or off. Press once to turn the controller on. Press again to turn the sprayer pump on or off. Hold the button to turn the controller off. -
Page 12: Operation
Operation Sprayer Safety • Do not aim the hand sprayer at any person or animal. • Do not place your hand or any other part of your body in front of the spray nozzle. • Do not leave the equipment under pressure when you are not present. - Page 13 Adjusting the Flow Rate of the Sprayer Use the fast or slow buttons on the controller to control the flow rate. You can press and hold the Blast button to momentarily increase the flow-rate of the sprayer. The table below is for reference only, actual results may vary.
- Page 14 Using the Spray Wand Note: Do not drive while spraying with the spray wand. Drive to the location where you will be spraying. Stop the machine. Press the power button on the controller 1 time to turn the controller on. Squeeze the handle on the spray wand to begin spraying.
-
Page 15: Maintenance
Maintenance Note: Determine the left and right sides of the machine from the normal operating position. Important: Refer to the machine Owner’s Manual for additional maintenance procedures WARNING Failing to properly maintain the machine could result in premature failure of machine systems, causing possible harm to you or bystanders. -
Page 16: Brine Machine Maintenance
Brine Machine Cleaning Maintenance Flushing the System Servicing the In-Line Filter Service Interval: Before storage Screen Important: Use only clean water when cleaning the system. Service Interval: Every 50 hours Important: You must always drain and flush out Clean the area around the in-line filter cap. the system before storage or downtime exceeding 1 week. -
Page 17: Storage
Storage Storing the Brine Tank Assembly Remove grime from the external parts of the tank. Remove the brine solution from the tank. Flush the system; refer to Flushing the System (page 16). Check and tighten all fasteners. Repair or replace any part that is damaged or missing. -
Page 18: Troubleshooting
Troubleshooting Problem Possible Cause Corrective Action The pump does not prime. 1. There is a leak in the plumbing 1. Check for the leak and repair as between the pump and tank. necessary. 2. The filter is clogged. 2. Clean the filter. The boom spray pattern is uneven or is 1. - Page 19 Notes:...
