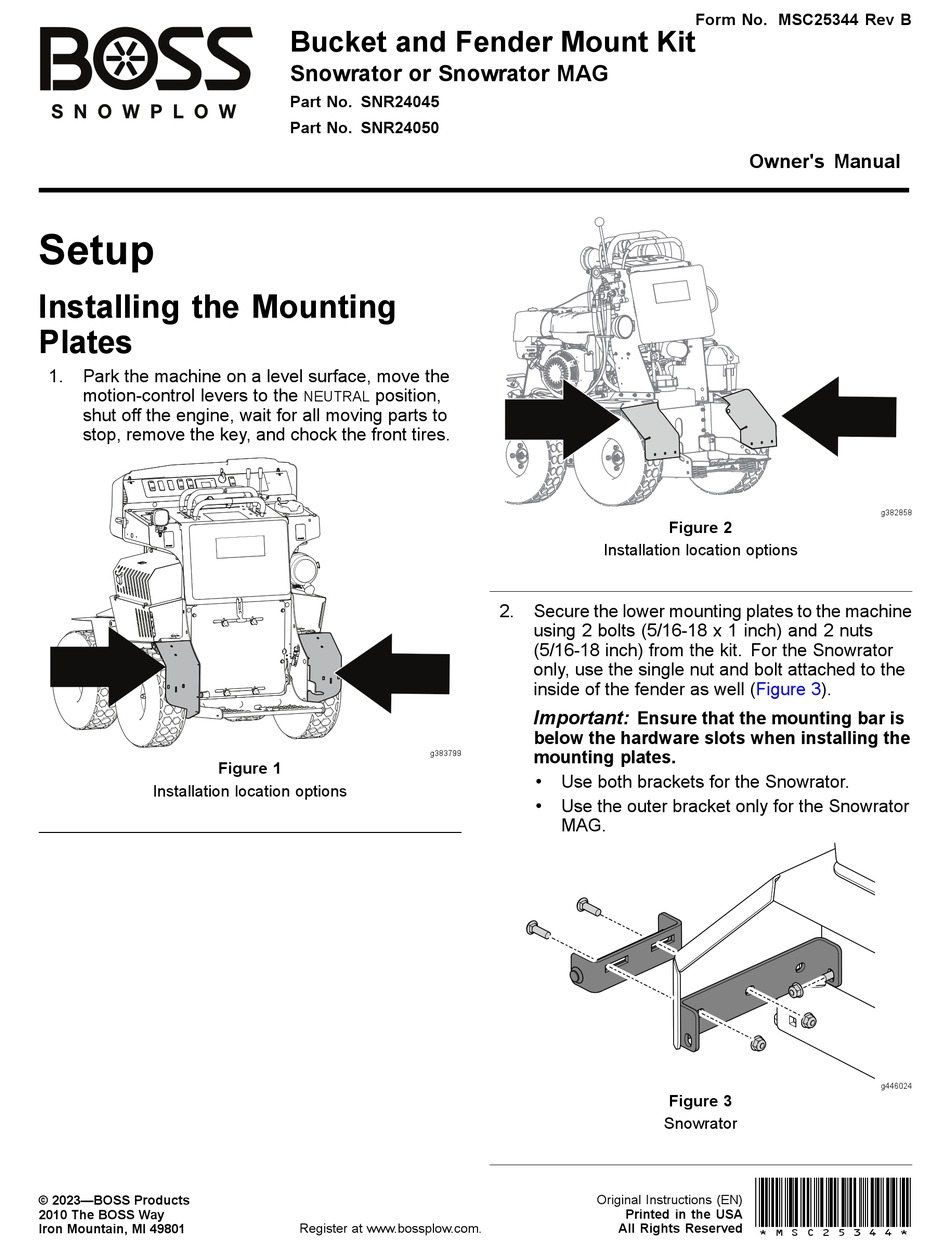

Boss Snowplow SNR24045 Owner's Manual

Setup

Installing the Mounting
Plates
1. Park the machine on a level surface, move the
motion-control levers to the
shut off the engine, wait for all moving parts to
stop, remove the key, and chock the front tires.
Installation location options
© 2023—BOSS Products
2010 The BOSS Way
Iron Mountain, MI 49801

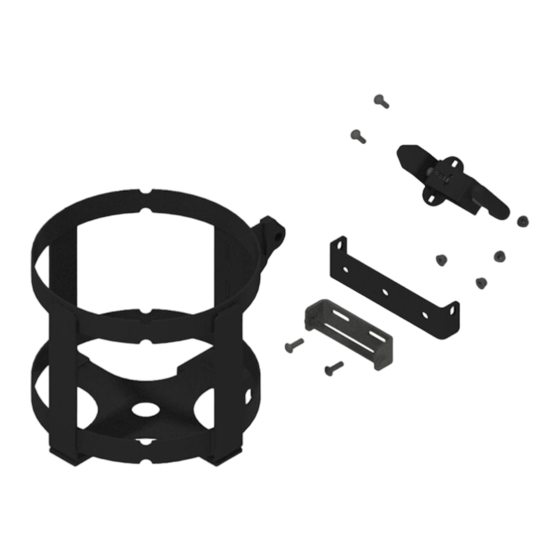

Bucket and Fender Mount Kit
Snowrator or Snowrator MAG
Part No. SNR24045
Part No. SNR24050
position,
NEUTRAL
Figure 1
Register at www.bossplow.com.
Installation location options
2. Secure the lower mounting plates to the machine
using 2 bolts (5/16-18 x 1 inch) and 2 nuts
(5/16-18 inch) from the kit. For the Snowrator
only, use the single nut and bolt attached to the
inside of the fender as well
Important:
below the hardware slots when installing the
g383799 mounting plates.
•
Use both brackets for the Snowrator.
•
Use the outer bracket only for the Snowrator
MAG.
Original Instructions (EN)
Form No. MSC25344 Rev B
Owner's Manual
Figure 2
(Figure
Ensure that the mounting bar is
Figure 3
Snowrator
*MSC25344*
Printed in the USA
All Rights Reserved
g382858
3).
g446024
