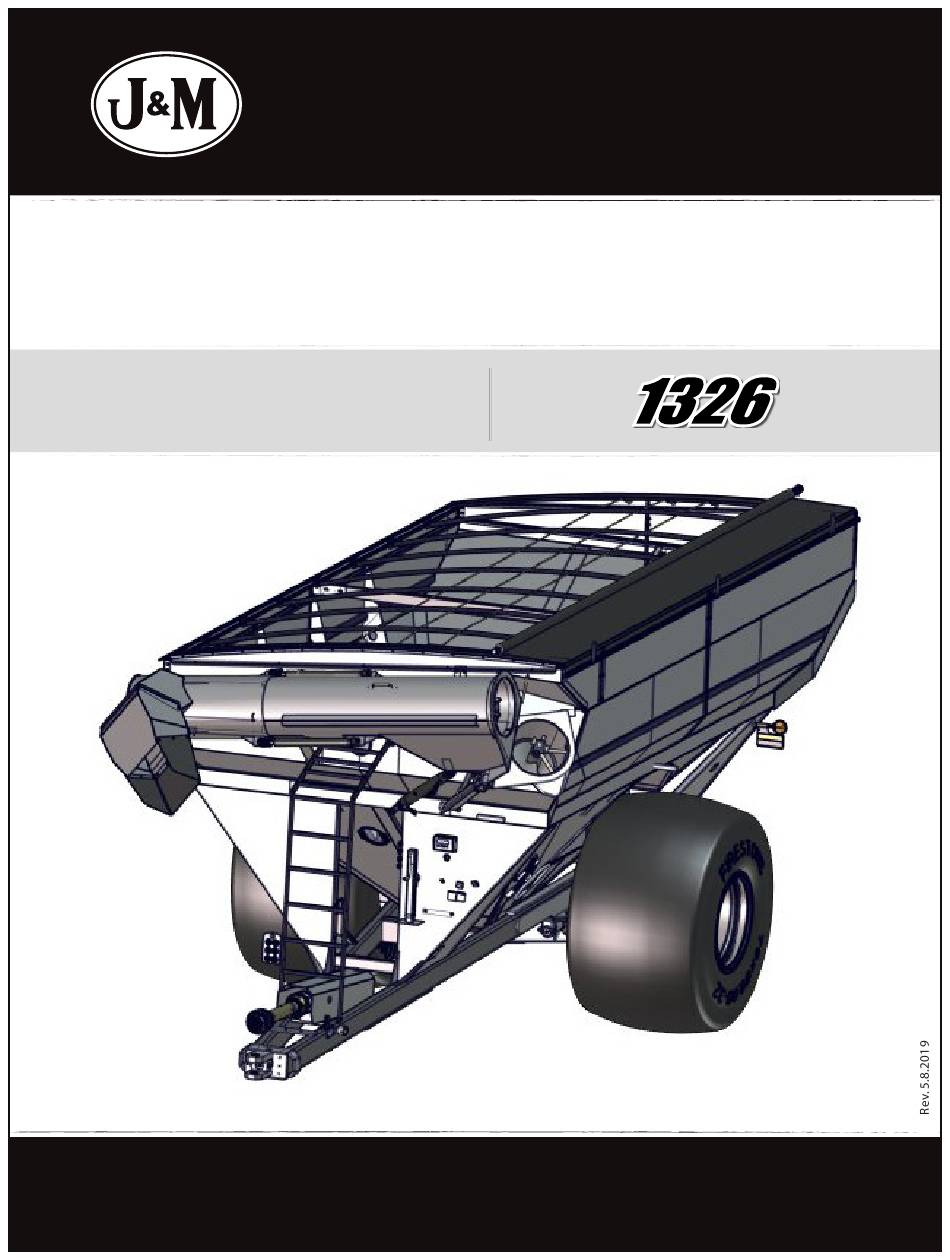

- Page 1 Manual GRAIN CART MODEL O P E R A T O R ’ S M A N U A L J&M Manufacturing Co, Inc 284 Railroad Street - P.O. Box 547 | Fort Recovery, OH 45846 | Ph: (419) 375-2376 | Fax: (419) 375-2708 www.jm-inc.com...
- Page 2 Stance Rear Opposite Auger Side Auger Side Front...
- Page 3 Dealer Pre-Delivery Instructions Grain Cart WHEEL NUTS Check ALL wheel nuts for correct torque setting. (3/4”-400 Ft-Lbs, 22mm-640 Ft-Lbs) Tighten as needed. Re-Check wheel nut torque settings during initial break in period (during 1st, 2nd, 3rd loads, etc.), then periodically afterwards (every 10 hours of use for first 40 hours).
- Page 4 Dealer Pre-Delivery Instructions Grain Cart GEARBOX Check the gearbox oil level. For the process of checking the oil in your gearboxes, refer to “Lubrication Service Schedule” in this manual. Add SAE 80W-90 lubricant as necessary. LIGHTING & SAFETY FEATURES Check the tractor lighting system for functions. Plug the grain cart wire harness into the tractor receptacle and check the cart lighting for correct functions.
-
Page 5: Table Of Contents
Table Of Contents 6 ....................To the Dealer 7 . -
Page 6: To The Dealer
Use only genuine J&M service parts. Substitute parts may void warranty and may not meet standards required for safety and satisfactory operation. Record the model number and serial number of your equipment in the spaces provided: Model No:1326 Serial No: ________________________... -
Page 7: General Information
General Information TO THE OWNER: The purpose of this manual is to assist you in operating and maintaining your grain cart in a safe manner. Read it carefully. It furnishes information and instructions that will help you achieve years of dependable performance and help maintain safe operating conditions. If this machine is used by an employee or is loaned or rented, make certain that the operator(s), prior to operating: 1. -
Page 8: Specifications And Dimensions
10 Bolt or 20 Bolt Spindles 6” Diameter Tongue Weight Empty 2,400 lbs. Loaded 4,800 lbs. Total Weight 16,100 lbs. (approx.) DIMENSIONS Model 1326 1’-6” 21’-10” 8’-6” 25’-6” 34’-5” 14’-2” 7’-6” 12’-3” 1’-5” 10’-0” 11’-9” 11’-4” Walking Tandem Dual Wheels... -
Page 9: Bolt Torque Chart
Bolt Torque Chart Always tighten hardware to these values unless a different torque or tightening procedure is listed for specific application. Fasteners must always be replaced with the same grade as specified in the manual parts list. Always use the proper tool for tightening hardware. -
Page 10: Decals
Decals ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED! Replace Immediately If Damaged or Missing IMPORTANT: Install new safety signs if the old signs are destroyed, lost, painted over or cannot be read. When parts are replaced that have safety signs, make ... - Page 11 Decals Description Part No. Operating Instructions Decal JM0018044 Warning, High Pressure Fluid Hazard Decal 4” x 4” JM0010163 Warning, Do Not Adjust Or Service Decal JM0014979 Warning, Keep Hands Away Decal JM0018039 Warning, Keep Lug Nuts Tightened Decal 1-5/8” x 4” JM0010150 Danger, Keep Hands and Clothing Away Decal JM0018035 Danger, Keep Off Ladder Decal...
-
Page 12: Safety Rules
Safety Rules ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED! Safety is a primary concern in the design and manufacture of our products. Unfortunately, our efforts to provide safe equipment can be erased by an operator’s single careless act. In addition, hazard control and accident prevention are dependent upon the awareness, concern, judgment, and proper training of personnel involved in the operation, transport, maintenance and storage of equipment. -
Page 13: Initial Operation And Maintenance
Initial Operation and Maintenance WARNING BE CERTAIN THAT ALL POWER IS SHUT OFF BEFORE SERVICING THE GRAIN CART. Before the grain cart is put into service: Have the safety instructions been read and clearly understood by the operator(s) of this machine? Has the gearbox been properly filled with SAE 80W-90 gearbox lubricant? Have all nuts, bolts, bearings and braces been properly fastened? Has the PTO been checked for proper overlap? -
Page 14: Operating Instructions
Operating Instructions VERY IMPORTANT: Under no circumstance is it recommended to tow a loaded grain cart in excess of 8 mph. WHEEL NUTS: Are the wheel nuts properly fastened? Torque to 640 Ft.-Lbs. for standard 22mm wheel studs and nuts. Torque to 400 Ft.-Lbs. -
Page 15: Adjusting Row Spacing For Walking Tandem Duals
Operating Instructions 6) Run the auger system EMPTY before loading grain into the tank for actual use. Make certain that the slip clutch is operating and that the upper and lower augers are properly engaged. 7) Connect the lighting 7-prong connector end on the main wiring harness to the tractor electrical outlet. Make sure that all flasher and turn indicator lights are working properly before incidental highway travel. -
Page 16: Lubrication Service Schedule
8 hours of use. Lubricate the springs and retaining bolts on the bearing before prolonged storage of the grain cart. Gearbox Lubricant Model Ounces Input Shaft Output Shaft 1326 1-3/4” 2” Roll Tarp U-Joint Once Annually... -
Page 17: Routine Maintenance
Routine Maintenance WARNING BE CERTAIN ALL POWER IS SHUT OFF WHEN SERVICING THE GRAIN CART • Repack the bearings in the hub assembly once a year or as needed. Use a good quality LS EP2 Severe Duty, High Shock Load, Lithium based Grease. -
Page 18: Adjusting The Lower And Upper Flighting
Adjusting the Lower and Upper Flighting WARNING MAKE SURE THAT ALL POWER IS SHUT OFF BEFORE ADJUSTING THE FLIGHTING ASSEMBLY. LOWER FLIGHTING - If the drive-dog and hanger assembly are becoming excessively hot during unloading, the lower flighting and/or hanger may need adjusting. The hanger bushing assembly has elongated holes where it attaches to the outer tube assembly. Loosen the two 1/2”... -
Page 19: Removing Dirt From The Restrictors On The Hydraulic Cylinder
Removing Dirt from the Restrictors on the Hydraulic Cylinder WARNING MAKE SURE THAT ALL POWER IS SHUT OFF AND THE UPPER AUGER TUBE IS IN THE DOWN POSITION BEFORE REMOVING THE RESTRICTORS Remove restrictors from the 90 degree street elbow on the tip spout hydraulic cylinder. Remove dirt from the fitting to allow hydraulic oil to flow through the restrictor. -
Page 20: Hub & Spindle Assembly 250-10 (Single Wheels)
Hub & Spindle Assembly 250-10 (Single Wheels) Torque Values 22mm Studs 640 Ft.-Lbs. Description Part No. G250-10 Hub, Spindle, and Bearings Assembly with 22mm Studs, Races and Nuts (HSA-1075-22) JM0019927 1”-8 Gr5 Z Centerlock Hex Nut JM0002149 1”-8 x 8” Gr5 Z Hex Bolt (165450) JM0001487 Spindle, 6”... -
Page 21: Hub & Spindle Assembly 550-20 (Single Wheels-20 Bolt Hubs)
Hub & Spindle Assembly 550-20 (Single Wheels-20 Bolt Hubs) Torque Values 22mm Studs 640 Ft.-Lbs. Description Part No. G550-20 Hub, Spindle, and Bearings Assembly with 22mm Studs, Races, and Nuts JM0034272 1”-8 Gr5 Z Centerlock Hex Nut JM0002149 1”-8 x 8” Gr5 Z Hex Bolt JM0001487 Spindle, 6”... -
Page 22: Hub & Spindle Assembly W-881 (Walking Tandem Dual Wheels)
Hub & Spindle Assembly W-881 (Walking Tandem Dual Wheels) Torque Values 3/4" Studs 400 Ft.-Lbs. Description Part No. W-881 Hub Assembly Complete with 3/4” Studs and Nuts (less seal and spindle) JM0050402 1”-8 Gr5 Z Centerlock Hex Nut JM0002149 1”-8 x 7” Gr5 Z Hex Bolt JM0016689 Spindle, 4-1/2”... -
Page 23: Power Take-Off (Pto) Shaft Assembly - Comer
Power Take-Off (PTO) Shaft Assembly - Comer Description Part No. Description Part No. Complete Collar Yoke, 1-3/4” (28428) JM0025180 20 Spring (14022) JM0025162 Complete Collar Yoke, 1-3/8” (28426) JM0025181 21 Flanged Yoke (18016) JM0025163 Cross Journal Set (18130) JM0025144 22 Bushing (19019) JM0025164 Outer Yoke (18133) JM0025145... -
Page 24: Power Take-Off (Pto) Shaft Assembly - Weasler
Power Take-Off (PTO) Shaft Assembly - Weasler Red lines indicate where to measure length. Front Half Back Half Description Part No. Back Half Weasler PTO (1-3/4”) (Auto Clutch) 25-3/4” JM0018513 Back Half Weasler PTO (1-3/4”) (Auto Clutch) (XL) 31-3/4” JM0030331 Front Half Weasler PTO (1-3/4”) (Auto Clutch) 25”... -
Page 25: 130 Degree Gearbox Assembly (Weasler)
130 Degree Gearbox Assembly (Weasler) Takes 3 Quarts (96 Ounces) of SAE 80W-90 Gearbox Lubricant. Description Part No. 1/2”-14 NPT Pipe Plug for Weasler Gearbox (72-20007) JM0025068 1/2” NPT Bushing 1/8” NPT Relief Plug (72-20011) JM0025067 2” Output Shaft & Gear Assembly for Weasler Gearbox (74-60125) JM0025058 3/8”-16 UNC x 2-1/2”... -
Page 26: Hitch And Jack Assembly
Hitch and Jack Assembly Description Part No. 1-1/2” Pin adapter for Grain Cart Clevis Hitch Tang JM0014203 1-1/4” Pin adapter for Grain Cart Spade Hitch JM0019032 Hitch Weldment JM0017978 Grain Cart Draw Bar JM0017976 1-1/4” Pin adapter for Grain Cart Spade Hitch JM0019032 1-1/2”... -
Page 27: Driveline Assembly
Driveline Assembly Description Part No. 97” Drive Shaft Guard (1326, 1401) JM0017577 PVC (Cut to Length) JM0027151 190” x 1-3/4” Drive Shaft (DS-134190) JM0026235 5/8”-11 x 1-3/4” Gr5 Z Hex Bolt JM0016681 1-3/4” 4 Bolt Flange Bearing, 5/8” Bolt Hole (UCF-20928) JM0018774 5/8”-11 Gr5 Z Centerlock Hex Nut... -
Page 28: Upper & Lower Auger Assembly
16 3/8”-16 x 1” Gr8 Z Hex Bolt JM0001485 17 22” Hanger Bushing Assembly (HBA-22) JM0019656 18 Lower Auger Liner for 1325, 1326, 1400, 1401 with 22” Diameter Auger (LAL-22135) JM0026576 19 Indicator Rod 22” JM0019396 20 Auger Gate Cover (See Grain Cart Assembly) ------------- 21 3-3/4”... -
Page 29: Lift Cylinder
Lift Cylinder Description Part No. Hydraulic Hose 1/4” x 160” JM0024898 1-1/4”-7 Gr5 Z Hex Nut JM0001700 Heavy Duty Pac Man Weldment JM0021417 3” x 24” Welded Cylinder JM0019644 1/2” Male - 3/8” Female NPT 90 degree Street Elbow JM0010292 PC-37 Check Valve JM0018233 3/8”... -
Page 30: Lights And Wiring
Lights and Wiring Ground (White Wire) Field Light (Black Wire) Tail Light (Brown Wire) Amber Flashing Amber Flashing & Turn Signal & Turn Signal (Yellow Wire) (Green Wire) Description Part No. Red Oval LED Tail Light JM0034389 LED Amber Light (Circular) JM0018819 Extendable Amber Light Assembly (Left Side) JM0018817... -
Page 31: Auto-Gate Shut-Off Assembly
Auto-Gate Shut-Off Assembly AUTO GATE ACTIVE Description Part No. 1/4”-20 x 3-1/2” Gr5 Z Hex Bolt JM0046621 1/4”-20 Gr5 Z SF Hex Nut JM0001630 Auto-Gate Hydraulic Valve JM0026247 1/2” Male ORB x 3/8” Female NPT Swivel; 90 Degree Elbow JM0027285 3/8”... -
Page 32: 5-Point Scale System For Single Wheel Bolt On Axles
5-Point Scale System for Single Wheel Bolt on Axles GT 400 GT 560 Description Part No. 2-7/8” Digi-Star Weigh Bar, 1” Pin Hole (278WB-T1) JM0000355 GT 400 Digi-Star Scale Display Monitor JM0019040 GT 560 Digi-Star Scale Display Monitor JM0044177 1/4”-20 x 3/4” Gr5 Z Hex Bolt JM0001507 GT 560 Scale Monitor Display Bracket JM0046976... -
Page 33: 5-Point Scale System For Tracks
5-Point Scale System for Tracks GT 400 GT 560 Description Part No. 2-7/8” Digi-Star Weigh Bar, 1” Pin Hole (278WB-T1) JM0000355 GT 400 Digi-Star Scale Display Monitor JM0019040 GT 560 Digi-Star Scale Display Monitor JM0044177 1/4”-20 x 3/4” Gr5 Z Hex Bolt JM0001507 GT 560 Scale Monitor Display Bracket JM0046976... -
Page 34: 5-Point Scale System For Walking Tandem Dual Wheels
5-Point Scale System for Walking Tandem Dual Wheels GT 400 GT 560 Description Part No. 2-7/8” Digi-Star Weigh Bar, 1” Pin Hole (278WB-T1) JM0000355 GT 400 Digi-Star Scale Display Monitor JM0019040 GT 560 Digi-Star Scale Display Monitor JM0044177 1/4”-20 x 3/4” Gr5 Z Hex Bolt JM0001507 GT 560 Scale Monitor Display Bracket JM0046976... -
Page 35: Walking Tandem Dual Wheel Assembly
Walking Tandem Dual Wheel Assembly Description Part No. 1”-14 Gr8 YZ Hex Nut JM0019926 1-1/4” x 8” x 14” Walker Frame Clamp Plate (114814CP) JM0010145 1”-14 x 7-1/2” Gr8 YZ Hex Bolt JM0019925 Walker Main Frame Weldment (Left)(FW-1L) JM0019922* Walker Main Frame Weldment (Right)(FW-1R) JM0010082* 1-3/4”... -
Page 36: Miscellaneous
Miscellaneous Description Part No. 1/4” x 43” Hydraulic Hose 43inch4M3k-4G-6MPX-4G-6MP JM0024904 1/2” x 43” Hydraulic Hose 43inch8M3k-8G-8MPX-8G-6MP JM0024906 Steel Grate (1326, 1401) JM0017930 Universal Ladder Bracket JM0016922 4 Rung Ladder Assembly (LA-1050) JM0018805 Hose Holder Bracket for Standard Grain Cart (HHB-1C) -
Page 37: Sideboards
JM0009596* High Sideboard Corner 13” (1312, 1412, 1522, 1326, 1401)(TTE-1325HSC) JM0009700 Back Half High Sideboard 153” x 13-1/4” (1312, 1412, 1522, 1326, 1401) (TTE-1325HSR) JM0017484* High Sideboard Splice 13” x 4” (1312, 1412, 1522, 1326, 1401)(TTE-1325HSP) JM0009702 High Sideboard Brace Plate 12-1/2” (1312, 1412, 1326, 1401) JM0021202 10 48”... -
Page 38: Door Wheel Assembly
Inspection Windows Description Part No. 1 3/8”-16 Gr5 Z Centerlock Hex Nut JM0001512 2 Inside Window Clip - Deep JM0000253 3 Outside Window Clip - Shallow JM0000256 4 3/8”-16 x 3/4” Gr5 Z Hex Bolt JM0001663 5 Window Seal 3/4” ‘S’ Strip JM0000254 6 Standard Inspection Window JM0000255... -
Page 39: Spring Return Assembly
Spring Return Assembly 11 12 Description Part No. 1/4”-20 Gr5 Z Centerlock Hex Nut JM0001505 Aluminum Spacer for Spring Return (1-3/8” x 2-3/16”) Rectangular JM0002445 1-1/4” Idler Pulley (1/4” ID) JM0002439 Large Spring Return Pully Spacer (2 Holes) JM0018897 1-5/8” Idler Pully (Long Spring Return) JM0012970 1/4”-20 x 1”... -
Page 40: Roll Tarp Assembly
Roll Tarp Assembly... - Page 41 11 3/8”-16 x 1” Gr5 Z SF Hex Bolt JM0002092 12 Endcap Prop - Lower 19” (ABS-2) JM0000179 13 1/4” x 2” x 29” Bar with 120° Bend for Crank Handle (1312,1326,1522) JM0048492 14 1/2”-13 Gr5 Z Centerlock Hex Nut JM0001511...
