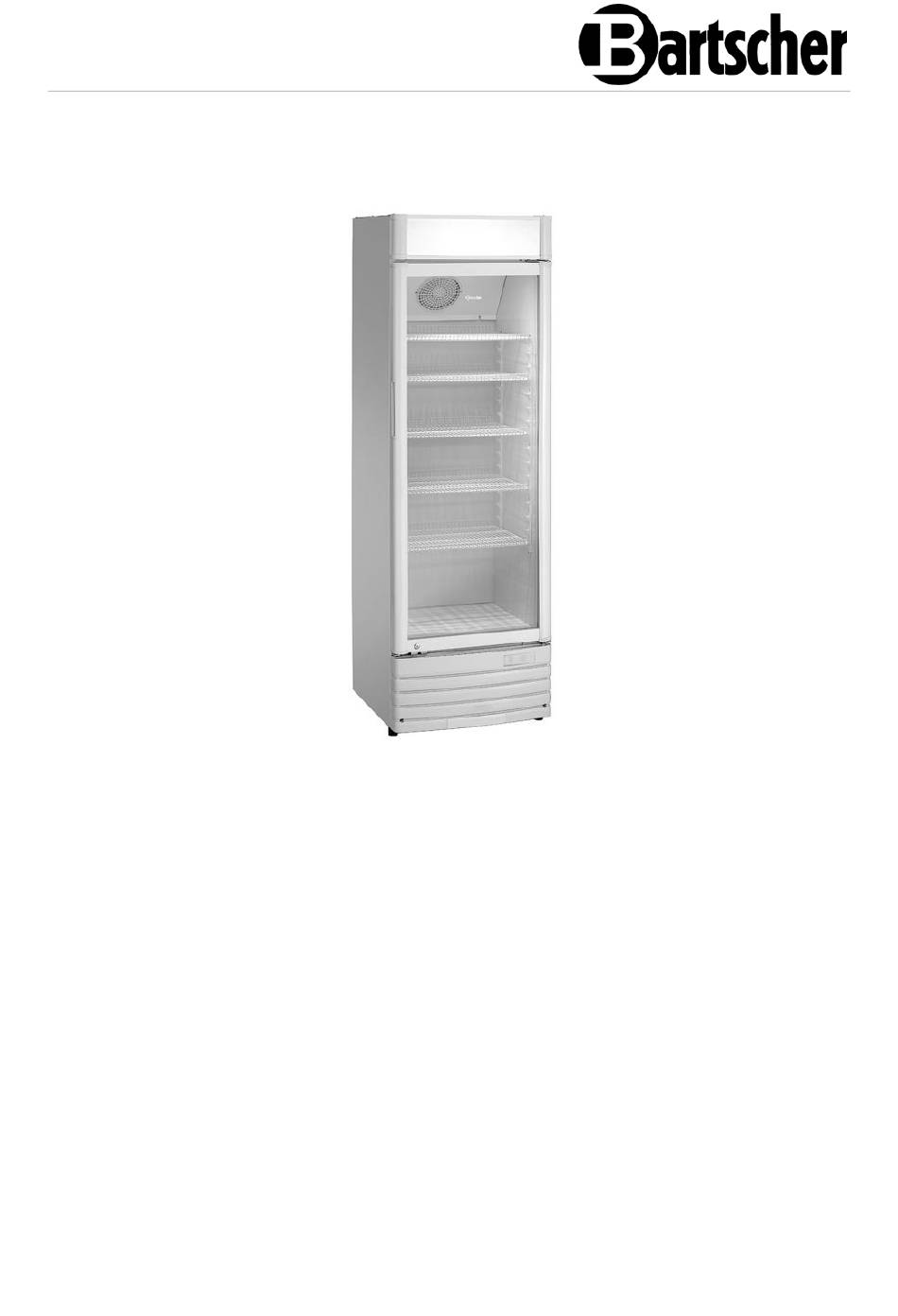

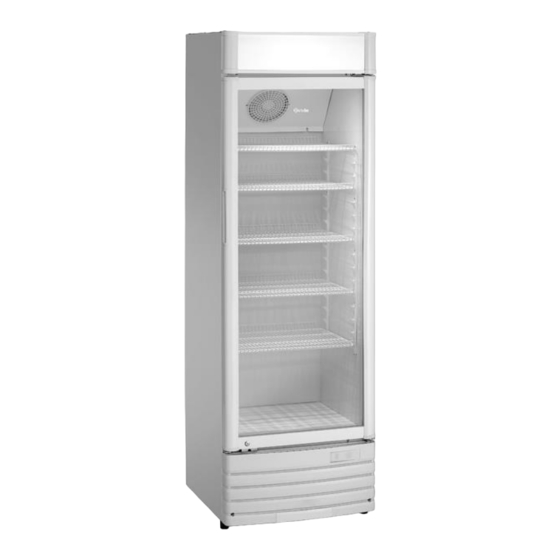

- Page 1 302L WB 700811...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2021-07-22...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 6 Unintended Use ..................6 General information ..................7 Liability and Warranty ................7 Copyright Protection ................7 Declaration of Conformity ................ 7 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hinweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
- Page 7 Safety Improper Use • Unintended or prohibited use may cause damage to the appliance. • The appliance may only be used when its technical condition is flawless and allows for safe operation. • The appliance may only be used when all connections are executed according to rules of law in force.
-
Page 8: Intended Use
Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Cooling and preparation of suitable beverages and food products. The appliance is intended for operation in maximum ambient temperature of 30°C and relative humidity of 55%. -
Page 9: General Information
General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 10: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 11: Technical Data
Technical Data Technical Data Technical Specifications Glass-doored refrigerator 302L Name: 700811 Art. No.: Material: steel, painted / glass / ABS plastic Inner material: ABS plastic Volume, in l: Temperature range, min.–max., in °C: 0 - 10 Ambient temperature, min.–max., in °C: 16 - 30 Amount of coolant, in kg: R600a / 0,052... - Page 12 The set includes: 1 thermometer for hanging inside More information on the appliance is available in our website www.bartscher.com or, pursuant to the Regulation (EU) 2019/2024, in our product data base at https://energy-label.ec.europa.eu/. Enter article number for a given model.
-
Page 13: List Of Components Of The Appliance
Technical Data List of Components of the Appliance Fig. 1 1. LED lighting 2. Advertising display 3. Fan 4. Operating elements 5. Shelves (5 pcs) 6. Guide rails 7. Door with flush handle 8. Lock 9. Housing 10. Castors (2 pcs) 11. -
Page 14: Functions Of The Appliance
Installation and operation Functions of the Appliance The glass-doored refrigerator has been designed for cooling and storage of suitable beverages. The lit advertising display catches the eye and draws the attention — in shops, canteens, and dining areas. You can advertise your products with a logo or can provide general information to reach the set goal. - Page 15 Installation and operation • Place the appliance so that sufficient air circulation is ensured. Leave 10 cm clearance from walls and other objects. • In order to avoid damage to the compressor, do not tilt the appliance more than 45° when positioning or transporting it. •...
-
Page 16: Operation
Installation and operation Operation Tips for the user • Shelves may be positioned at various heights. Arrange them adequately to the size of beverage/containers with food product, so that the inner space of the appliance is used optimally. • Beverages and food products in containers should be arranged on the shelves so that proper distances between them allow for sufficient air circulation inside the appliance. - Page 17 Installation and operation Before First Use 1. Prior to first operation, clean the appliance and its equipment according to instructions in section 6 'Cleaning'. 2. To end with, dry the appliance and accessories thoroughly. 3. Place shelves in the appliance so that they fit the height of stored items. 4.
- Page 18 Installation and operation LED Lighting The appliance is equipped with internal LED lighting and advertising display lighting. If needed, both lighting sets may be switched on or off with the ON/OFF switch inside the appliance. Temperature Control Set temperature with the use of temperature controller (14, Fig. 2). It is located also inside of the appliance.
-
Page 19: Cleaning And Maintenance
Cleaning and Maintenance Condensed water generated during operation of the appliance is also collected in the condensed water drip tray. NOTE! Check and empty the condensed water drip tray regularly! Cleaning and Maintenance Safety Instructions for Cleaning • Before cleaning, disconnect the appliance from the power supply. •... - Page 20 Cleaning and Maintenance 11. After cleaning, leave the door open for the appliance to dry completely. 12. If the appliance is not to be used for a longer period of time, clean it according to the instructions above. Leave the appliance open to prevent generation of unpleasant odours inside.
-
Page 21: Possible Malfunctions
Possible Malfunctions Possible Malfunctions Mögliche The table below contains descriptions of possible causes and solutions to malfunctions or errors during operation of the appliance. When malfunction cannot be removed, contact the technical service. In such a case, provide article number, model name and serial number. These data may be found in the rating plate. - Page 22 Possible Malfunctions Error Possible Cause Solution Temperature inside Too little clearance between Provide for sufficient the appliance is too objects inside the appliance clearance between objects high / too low inside the appliance Appliance is overloaded Reduce the number of stored objects Incorrectly set temperature Set the temperature control...
- Page 23 Possible Malfunctions The following phenomena are not malfunctions: – Various sounds that are generated by the cooler during operation are a normal phenomenon and do not indicate any malfunctions. – Splashing, bubbling and hums are generated by the coolant that circulates the system.
-
Page 24: Disposal
Disposal Disposal Electrical Appliance Electric appliances are marked with this symbol. Electrical appliances must be disposed of and recycled in a correct and environmentally friendly manner. You must not dispose of electric appliances with household waste. Disconnect the appliance from the power supply and remove power cord from the appliance.
