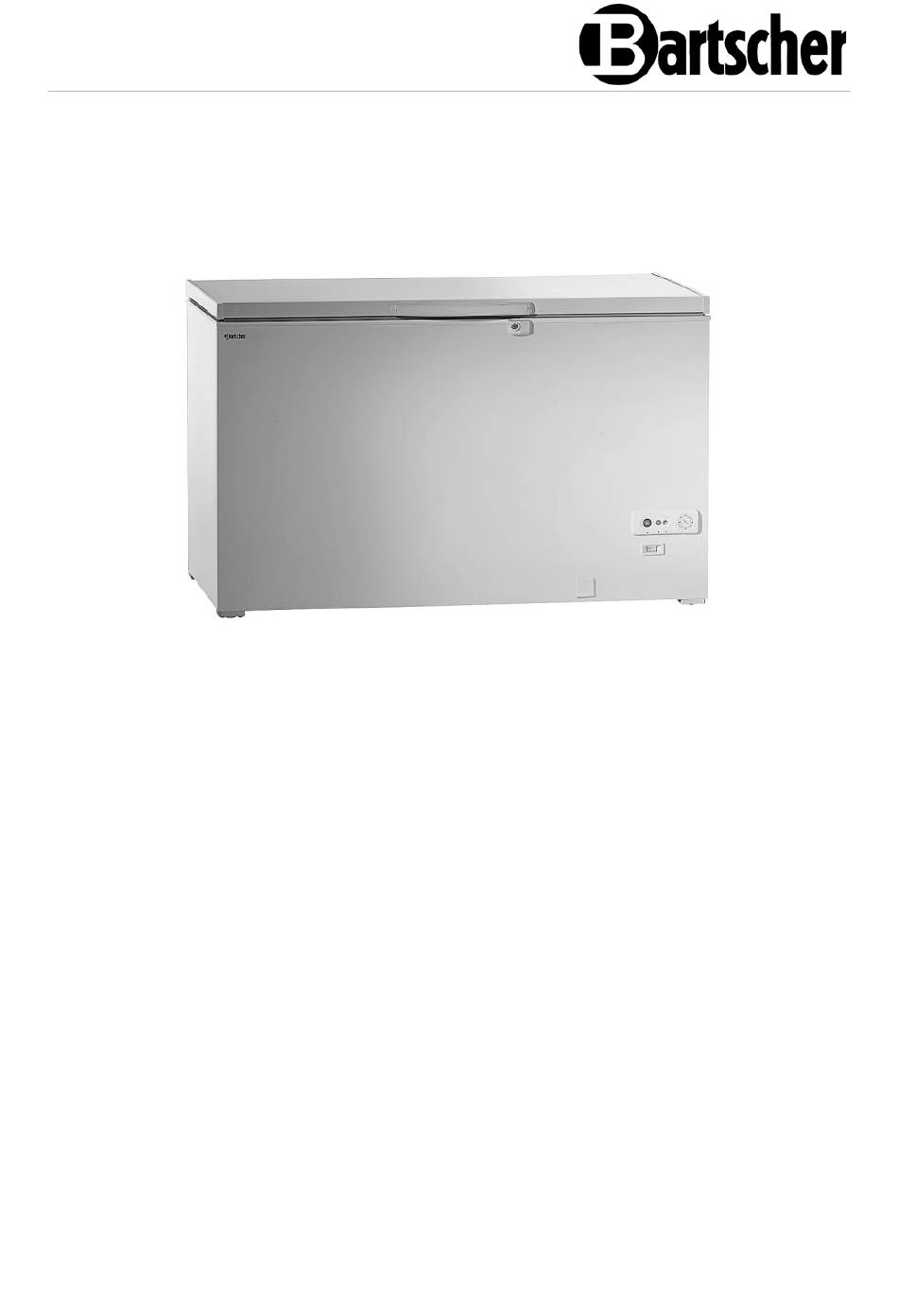

- Page 1 288-W - 391-W - 479-W 700967 - 700968 - 700969...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 D-33154 Salzkotten Technical Support Hotline: +49 5258 971-197 Germany www.bartscher.com Version: 1.0 Date of preparation: 2024-07-09...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 6 Unintended Use ..................6 General information ..................7 Liability and Warranty ................7 Copyright Protection ................7 Declaration of Conformity ................ 7 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Inform ationsquelle un d N achschl agew erk. Di e Kenntnis aller enthaltenen Sic herheits hinw eis e und H andlungs anw eisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfallv erhütungsv orsc hriften und allgem einen Sicherheits bestimmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und m uss i n unmittelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, W artungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt w erden. W enn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
- Page 7 Safety Operating Personnel • The appliance may only be operated by qualified personnel and trained specialist personnel. • This appliance may not be operated by persons (including children) with limited physical, sensory or mental capabilities, nor by persons with limited experience and/or limited knowledge.
-
Page 8: Intended Use
Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Freezing and storage of deep-frozen food products. The appliance is intended for operation in maximum ambient temperature of 30°C and relative humidity of 55%. -
Page 9: General Information
General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 10: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 11: Technical Data
Technical Data Technical Data Technical Specifications Version / Characteristics 700967| 700968| 700969 • Cooling: static • Temperature control: thermostatic, stepless • Control: rotary control knob • Thermostat • Temperature range: up to -18°C • Climate class: C1 • GWP index: 3 •... - Page 12 Technical Data Name: Chest freezer 288-W 700967 Art. No.: Material: plastic | steel, painted Inner material: aluminium, coated Volume, in L: Usable volume, in L: Internal dimensions (W x D x H), in mm: 890 x 510 x 675 Number of baskets:...
-
Page 13: Functions Of The Appliance
We reserve the right to implement technical modifications. More information on the appliance is available in our website www.bartscher.com or, pursuant to the Regulation (EU) 2019/2018, in our product data base at https://energy-label.ec.europa.eu/. Enter article number for a given model. -
Page 14: List Of Components Of The Appliance
Technical Data List of Components of the Appliance Fig. 1 1. Lid handle 2. Lid 3. Partition 4. Lock 5. Technical partition mesh cover 6. Control elements 7. Drain plug 8. Feet (4x) 9. Housing 10. Appliance interior 11. Hanging Basket (3x | 5x| 6x) 12 / 28 700967... - Page 15 Technical Data Control elements / indicator lights Fig. 2 Quick freeze button (orange) When this button is pressed, the indicator light comes on. The appliance operates with maximum efficiency (the compressor is working continuously). When the indicator light is on, automatic temperature adjustment is turned off.
-
Page 16: Installation And Operation
Installation and operation Installation and operation Installation Unpacking / Positioning • Unpack the appliance, remove all external and internal packaging elements and shipment safeguards. CAUTION! Choking hazard! Prevent children from accessing package materials, for instance: plastic bags and EPS. • If the appliance is covered with a protective film, remove it. -
Page 17: Operation
Installation and operation – tape firmly all loose elements in the internal chamber and tape the door; – the appliance may only be transported in vertical position. Power supply connection • Verify if technical data of the appliance (see rating plate) correspond with the local electric power grid specification. - Page 18 Installation and operation Starting the appliance 1. Close the device lid. 2. Plug the device into a suitable single socket. 3. Use the temperature control knob to select the required temperature within the range from 1 (highest temperature) to 7 (lowest temperature). The appliance will be chilled to the set temperature.
- Page 19 Installation and operation • The items for freezing should be described as follows: – name of the product (eg. beef steak) – weight of the portion – quantity (number of pieces) – freezing date – use by date. • Use popular labels to describe the frozen food items. How to proceed: 1.
- Page 20 Installation and operation Preparation, freezing and storage of different food products MEAT Sausages and other meat products to be frozen should be skimmed and rested beforehand. Preparation: Packages less than 10-11 cm thick are easier to arrange and store. Please be careful not to punch the freezing bags with meat bones. Otherwise the meat will dry out and lose its flavour.
- Page 21 Installation and operation Storage time: It is shorter for fatty fish than for lean fish. Lean fish: 4–8 months, fatty fish: 2 months; shellfish: 2–6 months. VEGETABLES All cooked and blanched (steamed) vegetables can be frozen. Inappropriate vegetables: Endive, watercress, radish, onion. Preparation: Thoroughly wash the vegetables, cut into small pieces and blanch (steam).
- Page 22 Installation and operation DAIRY PRODUCTS, EGGS Dairy and fatty products (sour cream, cream and mayonnaise) are not suitable for freezing. Eggs should not be frozen in eggshells (they will break). Separate yolk and white, mix well and freeze. To prevent the yolk or the mixture from thickening, add a pinch of salt or sugar.
- Page 23 Installation and operation • Select only properly packed food products, provided with full data and store them in deep freezers in the temperature of -18°C or below. • When buying deep-frozen food products, transport them in suitable containers to avoid thawing and refreezing. As soon as possible, place such products in a deep freezer.
-
Page 24: Cleaning And Maintenance
Cleaning and Maintenance Cleaning and Maintenance Safety Instructions for Cleaning • Before cleaning, disconnect the appliance from the power supply. • Leave the appliance to cool down completely. • Make sure water does not enter the appliance. Do not immerse the appliance in water or other liquids during cleaning. - Page 25 Cleaning and Maintenance Defrosting With normal use (3-4 lid openings per day), the freezer needs to be defrosted one to two times a year (more often in other cases). We recommend defrosting the appliance when the ice layer is 5–6 cm thick. NOTE! Never use electrical appliances such as a hair dryer, heat blower, etc., or an open flame to defrost the appliance.
- Page 26 Cleaning and Maintenance 7. Once the defrosting water has drained into the collection tray, the inner compartment of the freezer should be thoroughly cleaned using warm water and a little vinegar. 8. Wipe with a cloth and clean water. 9. Finally, dry the inner chamber thoroughly with a lint-free cloth and let it air out for 3-4 minutes.
-
Page 27: Maintenance
Cleaning and Maintenance 19. As soon as the set temperature inside the chest freezer or the baskets is reached, put the frozen products back in. 20. Arrange the frozen products with the shortest storage period on top. 21. Once the red indicator light goes off, set the temperature as appropriate considering the amount of stored products. -
Page 28: Possible Malfunctions
Possible Malfunctions Possible Malfunctions Mögliche The table below contains descriptions of possible causes and solutions to malfunctions or errors during operation of the appliance. When malfunction cannot be removed, contact the technical service. In such a case, provide article number, model name and serial number. These data may be found in the rating plate. - Page 29 Possible Malfunctions Error Possible cause Solution Appliance does not The lid is not tight when To check the tightness, put a cool sufficiently closed sheet of paper between the seal and the lid and close the Freezing process The seal is not properly lid.
-
Page 30: Disposal
Disposal Spare Parts Spare parts for the purpose of repairing this appliance, as stipulated in Annex II to the REGULATION (EU) 2019/2018, are available for at least eight years, counted from the date of introduction of the last appliance of this model to market. Disposal Electrical Appliance Electric appliances are marked with this symbol.
