254L - 350L
700273 - 700321

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 700273 and is the answer not in the manual?

Questions and answers

Related Manuals for Bartscher 700273

Summary of Contents for Bartscher 700273

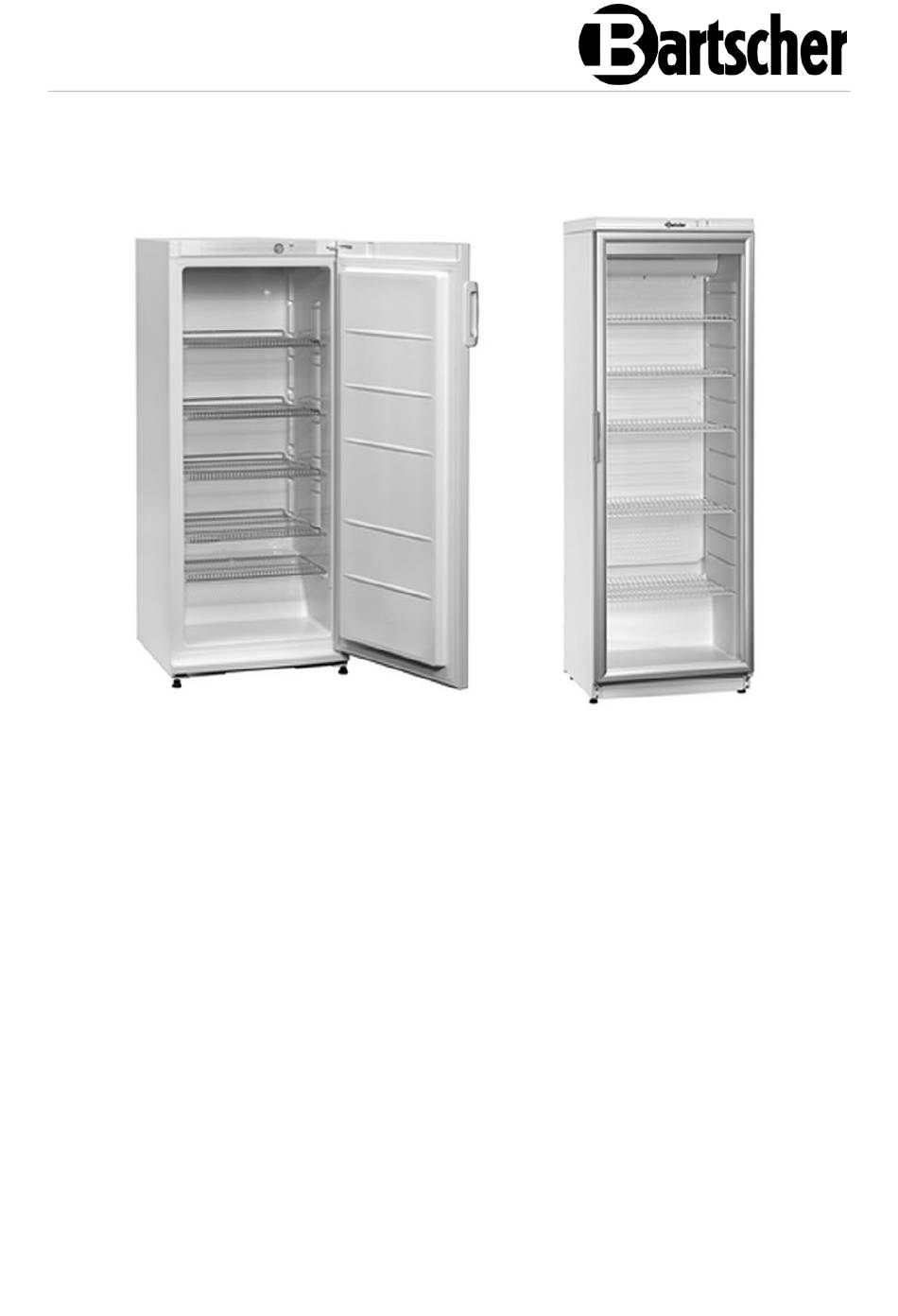

  • Page 1 254L - 350L 700273 - 700321...
  • Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 2.0 Date of preparation: 2023-05-10...

  • Page 3: Table Of Contents

    Functions of the Appliance ..............14 Installation and operation ................14 Installation ....................14 Operation ....................20 Cleaning and Maintenance ................22 Safety Instructions for Cleaning ............. 22 Cleaning ....................22 Possible Malfunctions .................. 24 Disposal ....................... 26 700273 1 / 26...

  • Page 4: Safety

    You must strictly follow the instructions, to prevent accidents, personal injuries and property damages. DANGER! The signal word DANGER warns against hazards that lead to severe injuries or death if the hazards are not avoided. 2 / 26 700273...

  • Page 5: Safety Instructions

    Do not transport the appliance, holding it by the power cord. • Do not allow the power cord to come into contact with heat sources or sharp edges. • Do not bend, pinch nor knot the power cord. 700273 3 / 26...
  • Page 6 (candles or heaters) nor with any other means. Vapour produced may cause short-circuit and too high temperatures may damage the appliance. • All ventilation slots should not be obstructed during operation. • Never attempt to damage cooling installation of the appliance. 4 / 26 700273...
  • Page 7 • Do not introduce any changes in the appliance nor modify it. • Do not drill hole in the appliance nor install any objects on it. • Do not place any heavy objects on the appliance. 700273 5 / 26...

  • Page 8: Intended Use

    The following is an unintended use: – Storing flammable or explosive objects and liquids, such as ether, petroleum or adhesives; – Storing explosive materials, like sprays filled with flammable propellants; – Storing pharmaceutical products or preserved blood; – Storing live pets. 6 / 26 700273...

  • Page 9: General Information

    Declaration of Conformity The appliance meets the currently applicable standards and guidelines of the European Union. We confirm the above in the EC Declaration of Conformity. We may provide relevant Declaration of Conformity upon request. 700273 7 / 26...

  • Page 10: Transport, Packaging And Storage

    – in a location protected against mechanical shocks. In the case of extended storage (over three months), make sure you check the condition of the packaging and the parts regularly. If needed, replace the packaging with a new one. 8 / 26 700273...

  • Page 11: Technical Data

    Technical Data Technical Data Technical Specifications Version / Characteristics 700273 – 700321 • Cooling: static • Thermostat • Control: rotary control knob • Insulation: cyclopentane, CS • Automatic defrost function • Evaporation of condensed water • Door type: leaf door –...
  • Page 12 Technical Data Name: Bottle cooler 254L 700273 Art. No.: Material: plastic, white Inner material: HIPS (High Impact Polystyrole) Volume, in l: Temperature range, min.–max., in °C: 0 - 8 Temperature control, levels: Ambient temperature, min.–max., in °C: 16 - 43...
  • Page 13 We reserve the right to implement technical modifications. More information on the appliance is available in our website www.bartscher.com or, pursuant to the Regulation (EU) 2019/2018, in our product data base at https://energy-label.ec.europa.eu/. Enter article number for a given model. 700273 11 / 26...

  • Page 14: List Of Components Of The Appliance

    Technical Data List of Components of the Appliance Bottle Cooler 700273 Fig. 1 1. Temperature controller 2. Internal lighting switch 3. Height-adjustable shelves (4 pcs) 4. Permanently fixed shelves (1 pcs) 5. Condenser 6. Condensed water drip tray 7. Compressor 8.
  • Page 15 6. Fan 7. Height-adjustable shelves (5 pcs) 8. Drain system 9. Cleaning tool for condensed water drain tray 10. Glass pane door with aluminium frame 11. Condenser Fig. 3 12. Condensed water drip tray 13. Compressor 700273 13 / 26...

  • Page 16: Functions Of The Appliance

    The appliance should be placed on surfaces that are: – even, with sufficient bearing capacity, resistant to water, dry and resistant to high temperatures; – sufficiently large, and thus enabling usage of the appliance with no problems; – easily accessible; – well ventilated. 14 / 26 700273...
  • Page 17 Die Öffnungen am Gerät niemals abdec ken oder bl oc ki eren. • Do not place the appliance in direct sunlight or in the vicinity of heat sources (cooker, radiator, heating devices, etc.). Heat sources may negatively affect power consumption, and restrict functions of the appliance, too. 700273 15 / 26...
  • Page 18 The ventilation opening in the top part of the cooler may not be obstructed; it is necessary to provide for uninterrupted air circulation. • Maintain a minimum clearance of 10 cm between the top side of the appliance and objects that are above it (e.g., a cabinet) (Fig. 6). 16 / 26 700273...
  • Page 19 The following tools are required: flat spanner No. 8 and 10, Phillips screwdriver. ATTENTION! Before changing the door's hinge side, disconnect the appliance and pull the plug out of the socket. Do not place the appliance in horizontal position in order to change the door's hinge side. 700273 17 / 26...
  • Page 20 Installation and operation Changing the Hinge Side 700273 Fig. 8 1. Remove cover strips (c, Fig. 8) from the housing and the internal side of the door. 2. Remove the top support (6) together with washers and a plastic gasket under the support.
  • Page 21 1. Undo two bolts (7, Fig. 9) and remove the bottom support from the hinge (8), together with the set of washers (6) on the axis, as well as intermediate element (5). 2. Undo bolts (7) and remove the support from the hinge (11). 3. Remove the door (4). 700273 19 / 26...

  • Page 22: Operation

    1. Prior to first operation, clean the appliance and its equipment according to instructions in section 6 'Cleaning'. 2. To end with, dry the appliance and accessories thoroughly. 3. Introduce the shelves into the appliance at the selected height. 4. Close the appliance door. 20 / 26 700273...
  • Page 23 It takes approximately 2–3 hours. 7. Set the temperature in the bottle cooler. Temperature Control in Bottle Cooler 700273 (Fig. 1) The appliance temperature is set by rotating the temperature controller (1). The temperature may be set in the range of 0–7: 0 —...

  • Page 24: Cleaning And Maintenance

    4. Internal surfaces of the appliance and all plastic elements should be protected against fats, acids, sauces. If, nonetheless, they reach the surface, clean the affected place immediately with warm water and a mild cleaning agent. ATTENTION! Never use hot water to clean the appliance. 22 / 26 700273...
  • Page 25 Soil compressor negatively affect operation of the appliance and increases power consumption. ATTENTION! Never clean the compressor with water! Fig. 11 12. Use a soft, dry brush, electrostatic cloth or vacuum cleaner. 700273 23 / 26...

  • Page 26: Possible Malfunctions

    Too little clearance between Provide for sufficient objects inside the appliance clearance between objects or too many objects in the inside the appliance; appliance remove the excess of objects Incorrectly set temperature Set the temperature control controller correctly 24 / 26 700273...
  • Page 27 – Splashing, bubbling and hums are generated by the coolant that circulates the system. – Short, louder whirring/hooting or clicking sounds may be heard when the compressor of the appliance starts. 700273 25 / 26...

  • Page 28: Disposal

    Electrical appliances should be returned to designated collection points. Coolant The propellant used in the appliance is flammable. It should be utilised pursuant to national regulations in force. 26 / 26 700273...
