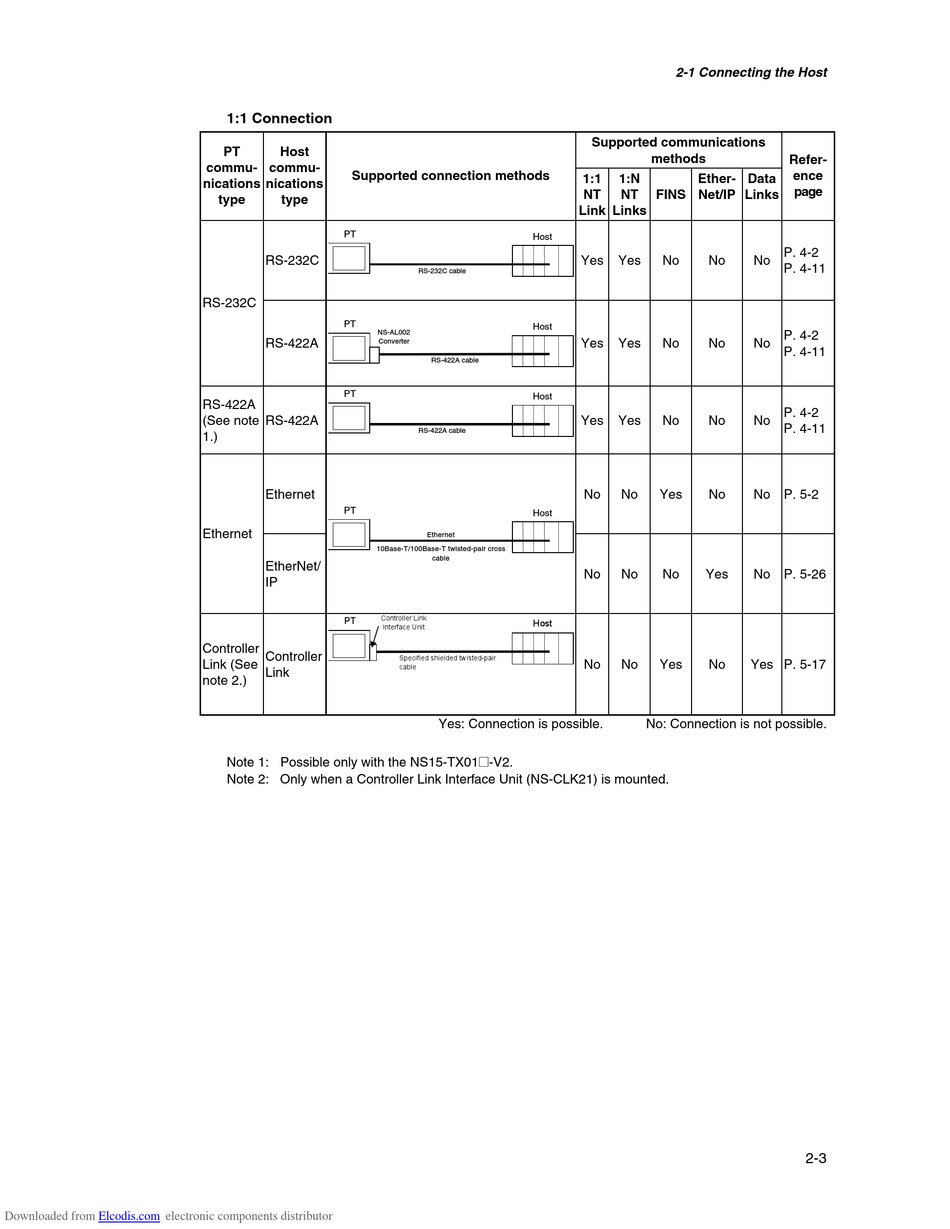

1:1 Connection
PT Host
commu- commu-
Supported connection methods
nications nications
type type
PT
RS-232C
RS-232C
PT
NS-AL002
RS-422A
Converter
PT
RS-422A
(See note RS-422A
1.)
Ethernet
PT
Ethernet
10Base-T/100Base-T twisted-pair cross
EtherNet/
IP
Controller Link
PT
Controller
Controller
Link (See
Link
note 2.)
Note 1: Possible only with the NS15-TX01@-V2.
Note 2: Only when a Controller Link Interface Unit (NS-CLK21) is mounted.
Host
RS-232C cable
Host
RS-422A cable
Host
RS-422A cable
Host
Ethernet
cable
Host
Interface Unit
Specified shielded twisted-pair
cable
Yes: Connection is possible.
2-1 Connecting the Host
Supported communications
methods
1:1 1:N Ether- Data
NT NT FINS Net/IP Links
Link Links
Yes Yes No No No
Yes Yes No No No
Yes Yes No No No
No No Yes No No P. 5-2
No No No Yes No P. 5-26
No No Yes No Yes P. 5-17
No: Connection is not possible.
Refer-
ence
page
P. 4-2
P. 4-11
P. 4-2
P. 4-11
P. 4-2
P. 4-11
2-3
