Connecting the Cable

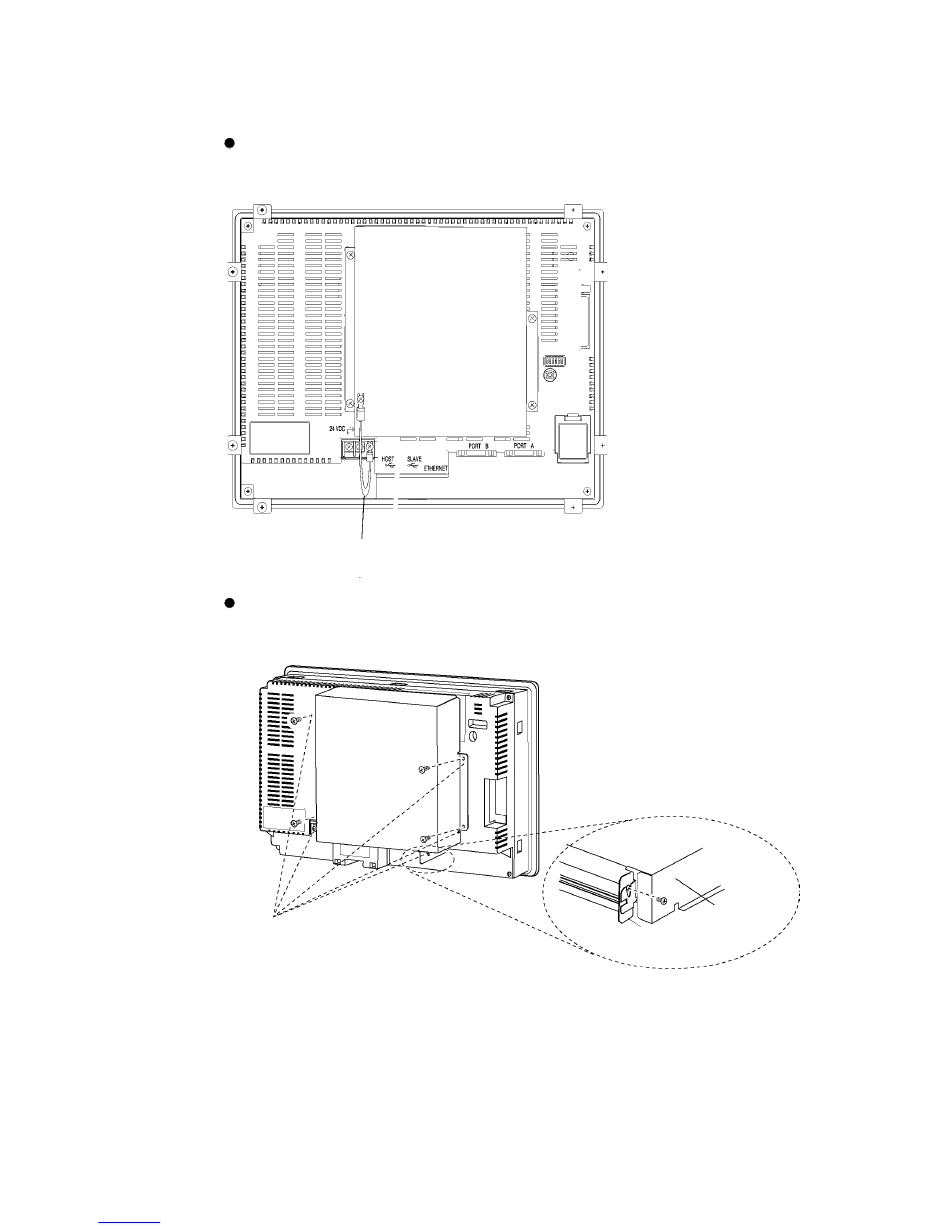

Connect the functional ground terminal of the PT and the cover with the cable to prevent
malfunction due to noise.
Connect with the cable provided.
Removing Controller Link Interface Unit
1. Remove the cover.
Remove these screws and
remove the cover.
3-8 Installing the Controller Link Interface Unit
Cover
Controller Link
Support Board
