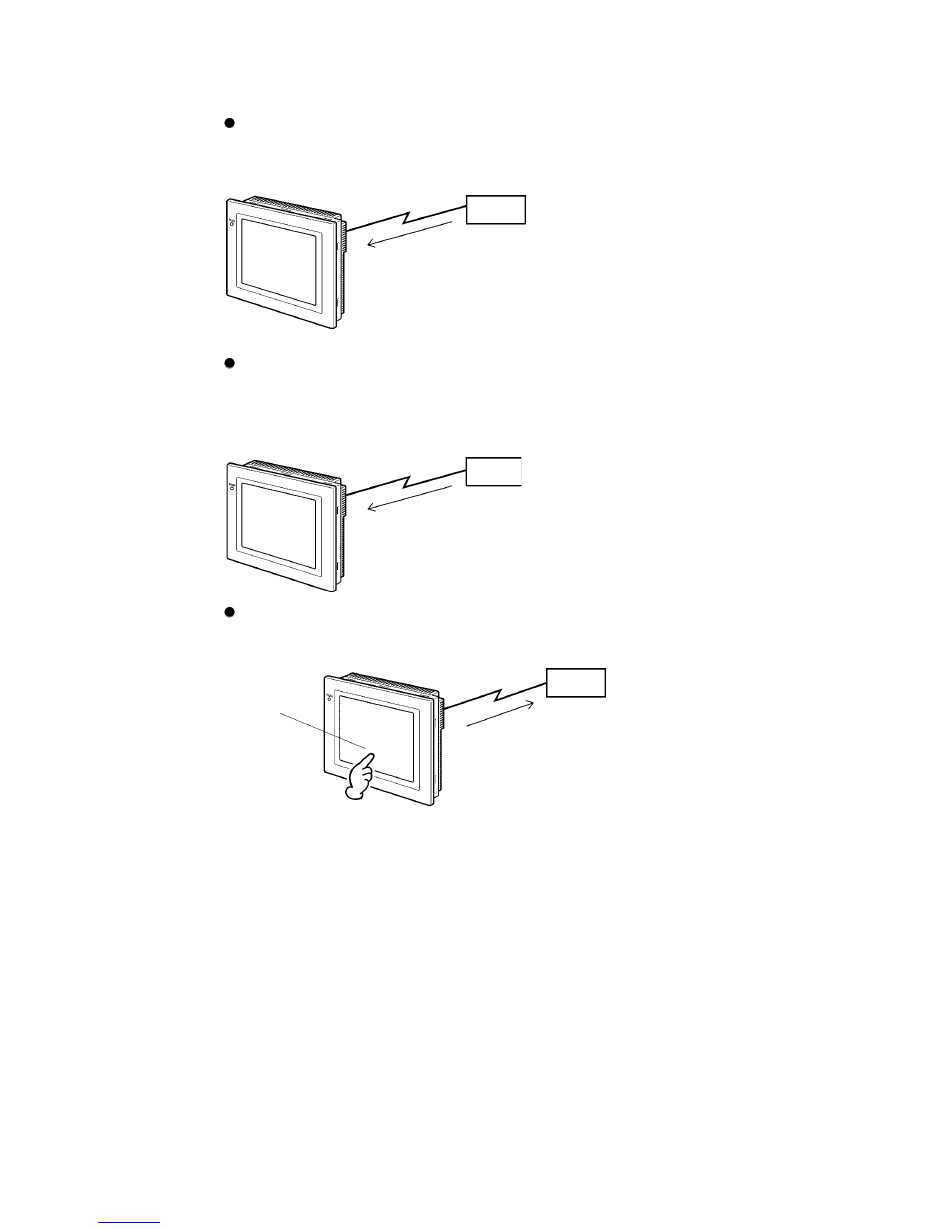

Displaying Screens
The information displayed on the screens is created using the CX-Designer on a computer
and transferred to the PT. The required screens can be displayed by using commands from
the host or touch switch operations.
Reading Data from the Host
A communications method such as NT Link Ethernet or Controller Link is used to connect the
host, and the required data is automatically read from the host.
Note: Some models do not support Ethernet or Controller Link.
NT Link or Ethernet,
Controller Link
Sending Data to the Host
Data input using touch switches (button ON/OFF status, numerals, and character strings) is
sent to the host.
Touch panel
Host
The required screens can
be displayed by using
commands from the host
or touch switch operations.
Host
Host
ON/OFF status,
numeric data, etc.
