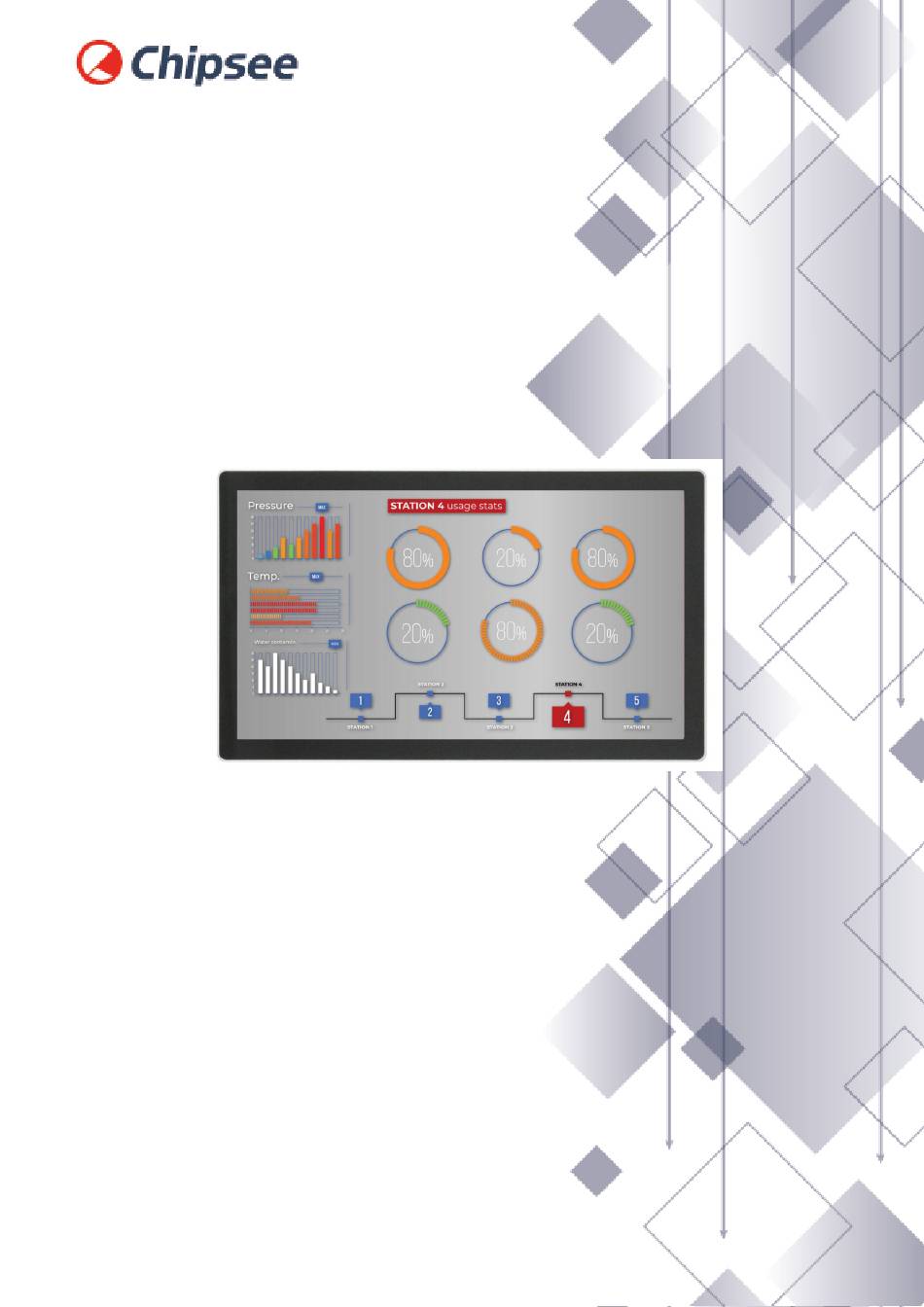

- Page 1 Industrial PC PPC-A72-125-C PN: CS19108R125 Content can change at anytime, check documentation website for latest information. www.chipsee.com...
-
Page 2: Table Of Contents
1.6.4. WiFi & BT Module 1.6.5. 4G/LTE Module 1.6.6. Expansion Connector 1.7. TF Card Slot 1.8. Audio Connectors 1.9. HDMI Connector 1.10. Power Button 1.11. Measurements and Mounting Procedure 1.12. 3D Model 1.13. Disclaimer 1.14. Technical Support Chipsee Page 2 of 15... -
Page 3: Ppc-A72-125-C
PPC-A72-125-C PPC-A72-125-C Front View Rear View Chipsee Page 3 of 15... -
Page 4: Product Overview
Side View 2 Product Overview ® The Cortex -A72/53 series PPC-A72-125-C (PN: CS19108R125) is a high-quality industrial panel PC. It features a 12.5” ten-point capacitive touch screen with a resolution of 1920 x 1080 pixels and brightness of 250 cd/m . -
Page 5: Ordering Options
It also provides a complete set of peripheral interfaces. Ordering Options Chipsee products can be customized during the ordering process. The product will be shipped with the pre-installed factory defaults if no extra requirements are specified. The... -
Page 6: Optional Features
Software Documentation section provides a detailed instruction on how to install different OSes on your own. However, bear in mind that Chipsee can’t take the responsibility of inadequate installation procedure. If you “brick” your device, please contact Chipsee Technical Support at support@chipsee.com... -
Page 7: Power Input
1(1,2)This product has 7 x UART channels in total. The default configuration is 5 x RS232 and 2 x RS485. UART can be swapped between RS232 and RS485 modes easily, so if you need different RS232/RS485 configuration, please get in touch with the Chipsee Technical Support at support@chipsee.com... -
Page 8: Touch Screen
USB 2.0 HOST, 1 x USB 3.0 HOST, 1 x USB Type-C, 1 x RJ45, GbE Ethernet connector, and 6 x DB9 connectors. DB9 Connectors The PPC-A72-125-C Industrial Panel PC has 6 x DB9 connectors that are configured as RS232 by default as shown on the figure below. You can configure COM3/COM4/COM5/COM6 as Chipsee Page 8 of 15... -
Page 9: Usb Connectors
PPC-A72-125-C USB Connectors RS485. If you need different RS232/RS485 configuration, contact the Chipsee Technical Support at support@chipsee.com. Figure 424: DB9 Connectors USB Connectors There are 4 x dual USB 2.0 HOST connectors onboard, as shown on the figure below. Figure 425: USB 2.0 HOST Connectors There is also 1 x USB 3.0 HOST connector and 1 x USB Type-C connector, as shown below. -
Page 10: Wifi & Bt Module
The PPC-A72-125-C Industrial Panel PC is equipped with a mini-PCIe connector that can connect to a 4G/LTE module. The customer will also need a SIM Card Holder and a 4G/LTE Antenna Connector to ensure 4G/LTE works on the PPC-A72-125-C. Chipsee Page 10 of 15... -
Page 11: Expansion Connector
The PPC-A72-125-C Industrial Panel PC has 1 x Expansion Connector (closed by default), as shown on the figure below. This connector has connected to isolated GPIO signals. The table below gives details about the definition of every Pin. Figure 431: Expansion Connector Chipsee Page 11 of 15... - Page 12 Since the PCB traces of the port are connected to the processor directly, be careful not to cause electrostatic discharge or over voltage on the pins, as it may damage the processor. Take all the necessary precautions while working with electrostatic-sensitive equipment. Chipsee Page 12 of 15...
-
Page 13: Tf Card Slot
Figure 434: HDMI Connector Power Button The PPC-A72-125-C Industrial Panel PC has a power button, as shown on the figure below. You can use the button to power ON or OFF the industrial PC. Chipsee Page 13 of 15... -
Page 14: Measurements And Mounting Procedure
You can find detailed information about mounting in the Mount IPC Guide. 3D Model PPC-A72-125-C 3D model can be viewed in the online doc in a web browser, if you are reading from the PDF version, please visit the online doc. Chipsee Page 14 of 15... -
Page 15: Disclaimer
If you cannot find the solution you’re looking for, feel free to contact us. Please email Chipsee Technical Support at support@chipsee.com, providing all relevant information. We value your queries and suggestions and are committed to providing you with the assistance you require.
