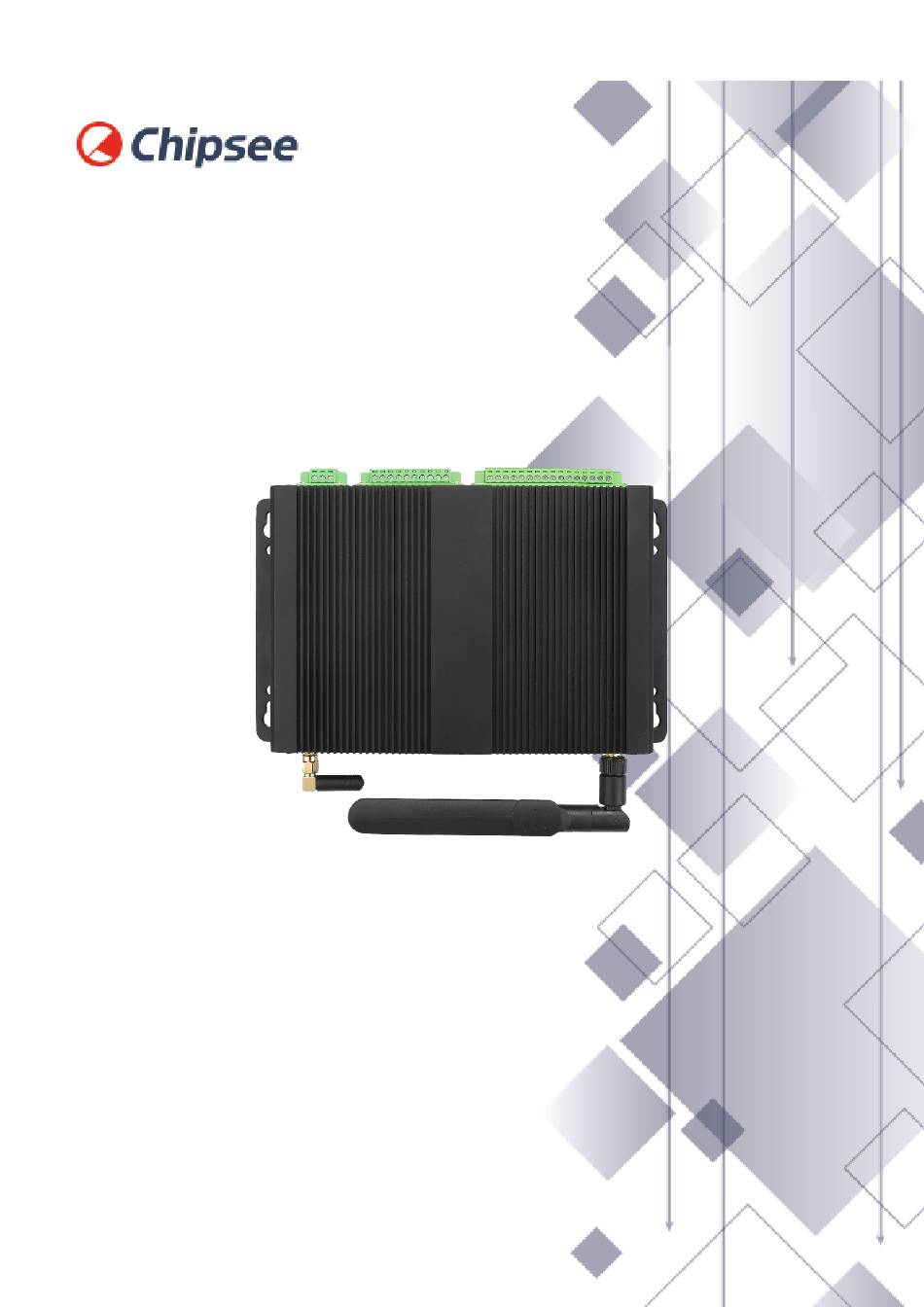

- Page 1 Industrial PC CS-CM5-BOX PN: CSRA5BOX Content can change at anytime, check our website for latest information of this product. www.chipsee.com...
-
Page 2: Table Of Contents
Contents CS-CM5-BOX 1. Product Overview 2. Ordering Options ® 2.1. Pi CM5 Module 2.2. Operating System 2.3. Optional Features 3. Specifications 4. Power Input 4.1. Ignition Signal 5. Connectivity 5.1. RS232/RS485/CAN 5.2. GPIO Port 5.3. USB Connectors 5.4. LAN 5.5. WiFi & BT Module 5.6. -
Page 3: Cs-Cm5-Box
CS-CM5-BOX CS-CM5-BOX Front View Chipsee Page 3 of 36... -
Page 4: Rear View
CS-CM5-BOX Rear View Chipsee Page 4 of 36... -
Page 5: Side View
CS-CM5-BOX Side View 1 Chipsee Page 5 of 36... - Page 6 CS-CM5-BOX Side View 2 Chipsee Page 6 of 36...
-
Page 7: Product Overview
CS-CM5-BOX Product Overview Product Overview ® ® The Cortex -A76 Raspberry Pi series CS-CM5-BOX (PN: CSRA5BOX) is a high-quality fanless industrial Pi single board computer. Key Applications • Process Control • Process Monitoring • IIoT node • Environmental Monitoring •... -
Page 8: Ordering Options
® The CS-CM5-BOX industrial Pi PC does not include the CM5 Raspberry Pi module by default. If you would like to purchase it with a CM5, you can select it at the Chipsee store during the ordering process. Operating System This product comes with a pre-installed Raspberry Pi OS. -
Page 9: Optional Features
Optional Features Optional Features The CS-CM5-BOX industrial Pi PC does not include the 3G/4G/LTE modules by default. These modules are optional and can be selected at the Chipsee store during the ordering process. The product has a PCIe Gen 2 × 1 (5Gbps), M.2 M-Key 2230/2242 socket (PCIe 3.0 is possible but experimental for CM5), you can use it with your NVMe SSD or other modules that can fit in the slot and supports the protocol. -
Page 10: Specifications
CS-CM5-BOX Specifications Specifications The CS-CM5-BOX industrial Pi PC offers a broad range of performance and connectivity options for scalable integration, providing expandability according to future needs. Some of the key features are listed in the table below. CS-CM5-BOX ® Raspberry Pi CM5/CM5Lite; BCM2712 Quad(4) Core Cortex-A76 at 2.4GHz... - Page 11 The RS485 circuit controls the Input and Output direction automatically, there’s no need to control it from within the software. The default product without the CM5 does not include a Wi-Fi/BT module. You can include a CM5 that has the Wi-Fi/BT module at the Chipsee store during the ordering process. Chipsee Page 11 of 36...
-
Page 12: Power Input
Power Input Power Input The CS-CM5-BOX industrial Pi PC can be powered by a wide range of input voltages: From 9V to 30V (supports optional 24V ignition signal) DC. There are two DC input interfaces on this device: a 3-pin, 3.81mm screw terminal connector, and a 2.1mm DC input head. - Page 13 CS-CM5-BOX Power Input For a proper 2.1mm x 5.5mm x 9.5mm DC power connector, refer to the figure below: DC Jack Chipsee Page 13 of 36...
-
Page 14: Ignition Signal
CS-CM5-BOX Ignition Signal Ignition Signal The product has a “ignition signal” optional feature. By default the ignition signal is not installed. If you need this feature you can contact us when placing an order. In this setup, Pin 3 is the ignition signal pin. - Page 15 CS-CM5-BOX Ignition Signal Power Input Definition Pin 1 Positive Input DC Power Positive Terminal Pin 2 Negative Input DC Power Negative Terminal Pin 3 Ignition Ignition Signal Table 359 Power Connector with Ignition Signal Chipsee Page 15 of 36...
-
Page 16: Connectivity
Connectivity Connectivity There are many connectivity options available on the CS-CM5-BOX industrial Pi PC. It has 1 x USB 3.0 type-A Host, 1 x USB 2.0 type-A Host, 1 x USB type-C OTG, 2 x Giga LAN (RJ45) Ethernet connector supporting up to 1 Gbps, and 4 x UART and 1 x CAN terminals (RS232/ RS485/CAN). - Page 17 CS-CM5-BOX RS232/RS485/CAN RS232 / RS485 / CAN Pin Definition: /dev/ Pin 10 RS485_3- CPU UART3, RS485 –(B) signal ttyAMA2 Pin 9 RS485_3+ CPU UART3, RS485 +(A) signal /dev/ Pin 8 RS232_3_RXD CPU UART3, RS232 RXD signal ttyAMA2 Pin 7 RS232_3_TXD...
- Page 18 CS-CM5-BOX RS232/RS485/CAN Attention RS485_3 and RS485_5 can control the input and output direction automatically. There’s no need to control it from within the software. The 120Ω match resistor for RS485 is NOT mounted by default. The 120Ω match resistor for CAN is NOT mounted by default. Be sure to mount the match resistor when testing CAN.
-
Page 19: Gpio Port
CS-CM5-BOX GPIO Port GPIO Port The CS-CM5-BOX industrial Pi PC has a 10 Pin 3.81mm GPIO Connector, as shown in the figure below. The table below gives details about the definition of every Pin. Attention In order to use the Isolated Output, you need to add an external Isolated Power to the VDD_ISO and GND_ISO. - Page 20 CS-CM5-BOX GPIO Port GPIO Connector GPIO Connector Pin Definition: Pin Number Definition Description Pin 10 VDD_ISO Isolated Power +5V ~ +24V Input Pin 9 GND_ISO Isolated Ground Pin 8 OUT1 Isolated Output 1 Pin 7 OUT2 Isolated Output 2 Pin 6...
-
Page 21: Usb Connectors
CS-CM5-BOX USB Connectors USB Connectors There are 1 x USB 3.0 type-A Host, 1 x USB 2.0 type-A Host, 1 x USB type-C OTG onboard, as shown in the figure below. USB HOST Connectors Attention 1. These two USB host connectors can drive 500mA for each channel at most. - Page 22 CS-CM5-BOX USB Connectors USB Type-C OTG Connector Warning Be careful not to touch surrounding electronic components accidentally while plugging in USB devices into the embedded Industrial PC version. Chipsee Page 22 of 36...
-
Page 23: Lan
CS-CM5-BOX The 2 x Giga LAN provides Ethernet connectivity over standardized Ethernet cables as shown in the figure below. The integrated Ethernet interface supports up to 1 Gbps data throughput. These Giga LAN signals come from the CM5 module directly. -
Page 24: Wifi & Bt Module
WiFi & BT Module WiFi & BT Module The default CS-CM5-BOX without the CM5 does not include a Wi-Fi/BT module. If you include a CM5 that has the Wi-Fi/BT module, the product will have Wi-Fi/BT feature. The product also has an SMA connector for an external WiFi/BT antenna: WiFi+BT Antenna ... -
Page 25: 3G/4G/Lte Module
3G/4G/LTE Module 3G/4G/LTE Module The CS-CM5-BOX industrial Pi PC is equipped with a mini-PCIe connector that can connect to a 3G/4G/LTE module. The customer will also need a SIM Card Holder and a 3G/4G/LTE antenna to ensure 3G/4G/LTE works on the CS-CM5-BOX. SIM card does NOT support hot plug. - Page 26 CS-CM5-BOX 3G/4G/LTE Module 3G/4G/LTE Module Attention The product does not come shipped with the 3G/4G/LTE module by default. If you need to use 3G/4G/LTE, you can contact us when placing an order, we can install the necessary hardware for you.
-
Page 27: M.2 Module
M.2 Module M.2 Module The CS-CM5-BOX industrial Pi PC has a M.2 slot, it supports NVME m.2 SSD or other m.2 modules such as an AI compute module. It’s PCIe Gen 2 × 1 (5Gbps), M.2 M-Key 2230/2242 socket. The modules are not included in the product by default. -
Page 28: Camera Connector
CS-CM5-BOX Camera Connector Camera Connector The CS-CM5-BOX industrial Pi PC has a 22 Pin Camera Connector. The camera signals come from CAM1. The table below gives details about the definition of every pin. Camera Connector Camera Connector Pin Definition: Pin Number... - Page 29 System +3.3V Power Output, No more than 500mA Current output Table 362 Camera Connector Pin-out Attention The camera connector is supported but not mounted by default. Please contact us when placing an order if you need to use camera on the CS-CM5-BOX. Chipsee Page 29 of 36...
-
Page 30: Tf Card Slot
CS-CM5-BOX TF Card Slot TF Card Slot The CS-CM5-BOX industrial Pi PC features 1 x TF Card (micro SD) slot. A slot can address up to 128GB of memory. TF (micro SD) Card Slot Attention The TF card cannot be used for memory extension. It is only used for system boot-up for CM5 LITE model. -
Page 31: Audio Connectors
CS-CM5-BOX Audio Connectors Audio Connectors The CS-CM5-BOX industrial Pi PC features some audio peripherals. It has 1 x 3.5mm audio output jack. Also, the CS-CM5-BOX industrial Pi PC has a miniature 2W internal speaker for audio reproduction, as well as a small buzzer for alarm/notification sounds. -
Page 32: Hdmi Connector
CS-CM5-BOX HDMI Connector HDMI Connector The CS-CM5-BOX industrial Pi PC supports 1 x HDMI-D (Micro HDMI) 2.0 out, can be driven up to 4K 60FPS. Micro HDMI Connector Chipsee Page 32 of 36... -
Page 33: Prog Button
CS-CM5-BOX PROG Button PROG Button The CS-CM5-BOX industrial Pi PC has one button for entering usb download mode, as shown in the figure below. When booting with the button being pressed, the Raspberry Pi will boot from the USB connector. You can use this feature to download the OS software to the internal eMMC. -
Page 34: Mounting Procedure
CS-CM5-BOX Mounting Procedure Mounting Procedure You can mount CSRA5BOX with VESA mounting (guide): 75 x 75 mm, 4 x M4 (6mm) screws. You can also mount CSRA5BOX with rear mounting method (guide). Chipsee Page 34 of 36... -
Page 35: Mechanical Specifications
CS-CM5-BOX Mechanical Specifications Mechanical Specifications Please refer to the technical drawing in the figure below for details related to the specific product measurements. CSRA5BOX Technical Drawing Chipsee Page 35 of 36... -
Page 36: Disclaimer
If you cannot find the solution you’re looking for, feel free to contact us. Please email Chipsee Technical Support at support@chipsee.com, providing all relevant information. We value your queries and suggestions and are committed to providing you with the assistance you require.
