- Page 1 PPC-A72-125-C User Manual Release 1.0 Chipsee Products Naming Rules...
- Page 2 CS19108R125P-C111 Chipsee Product Abbreviations Horizontal Resolution Means 800 Pixel Means 1024 Pixel Means 1280 Pixel Means 1440 Pixel Means 1920 Pixel Vertical Resolution Means 480 Pixel Means 600 Pixel Means 768 Pixel Means 800 Pixel Means 900 Pixel Means 1024 Pixel...
-
Page 3: Hardware Features
Means Touch Type Means Resistive Touch Means Capacitive Touch Means LCD Brightness • Means Common Brightness • Means High Brightness PCB Version Baseboard PCB Version Number PCB Version SOM Module PCB Version Number Hardware Features Key Features: Rokchip RK3399, Dual-core Cortex-A72 (1.8GHz), Quad-core Cortex-A53 (1.4GHz) 4GB DDR3 eMMC... - Page 4 7 Channels (4 x RS485 at most, 1 debug RS232+RS485 port) GPIO 8 Channels WiFi/BT On-Board WIFI/BT HDMI 1 Channel 4G/LTE Optional Power Input 15~36V DC Current @ 15V 800 mA max Power Consumption 12W Typical Working Temperature 0°C to +70°C Android 7.1 Dimension 306*187*37 mm...

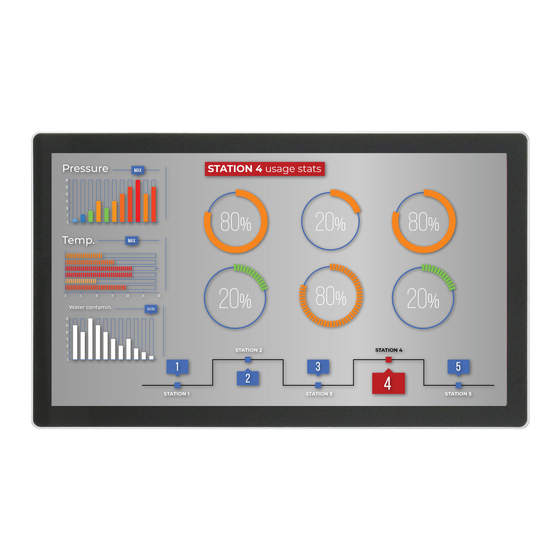

- Page 5 Figure 1: Top View (Android)
-
Page 6: Power Input Connector
Figure 2: Back View Power Input Connector The product CS19108R125P-C111 uses a wide-range power input DC 15~36V. The total power consumption is normally about 12W. The Power Input Connector is 3 Pin 3.81mm Screw Terminal Connector, as Figure 3 shows. A detailed description of the power input connector pins is provided in Table 1. - Page 7 on board. Capacitive Touch The product CS19108R125P-C111 uses a ten-point capacitive touch. ATTENTION: Capacitive touch screens are very sensitive to power noise. Ripple voltage/current from the power adapter can cause the LCD ripples, as well as the capacitive touch malfunction. If you use the APK Multi-Touch under Android to test it, you can find the touchpoint float.
-
Page 8: Usb 2.0 Connector
contact us. Figure 4: DB9 Connector USB 2.0 Connector And four USB 2.0 connectors as Figure 5 shows. Each can provide 500mA of current. Figure 5: USB 2.0 Connector USB 3.0 Connector The product CS19108R125P-C111 has one USB 3.0 connector as Figure 6 shows. -
Page 9: Lan Connector
And one USB Type-C connector as Figure 7 shows. Figure 7: USB Type-C Connector LAN Connector The product CS19108R125P-C111 has one channel 1000Mbit Ethernet Connector, as Figure 8 shows. Figure 8: LAN Connector TF Card There is one TF (uSD) card connector, as Figure 9 shows, that supports a TF (uSD) card up to 32GB. -
Page 10: Audio Connector
There is one SIM card holder, as shown in Figure 10. To read the SIM card data, you need a 4G/LTE module. There is a mini- PCIe connector inside that enables a 4G/LTE module to be mounted. Figure 10: SIM Card Holder ATTENTION: The 4G module is not mounted by default but can be ordered along with the product. -
Page 11: Hdmi Connector
HDMI Connector The product CS19108R125P-C111 has one HDMI connector as Figure 13 shows. The HDMI output resolution can be configured by software. Figure 13: HDMI Connector Power Button Figure 14 shows the product’s power button. Figure 14: Power Button Expansion Connector There is one Expansion Connector (closed by default), as Figure 15 shows. -
Page 12: Dimensions And Mounting
GPIO Connector Definition Pin Number Definition Pin 1 VCC_ISO Pin 2 GND_ISO Pin 3 OUT1 Pin 4 OUT2 Pin 5 OUT3 Pin 6 OUT4 Pin 7 Pin 8 Pin 9 Pin 10 ATTENTION: This GPIO Connector is optional. If you need it, please contact us. -
Page 13: How To Get Support
If your question is about technical support or troubleshooting for one of our products, we kindly ask you to first check our documentation for a possible solution. If you cannot find the solution you are looking for then please write to service@chipsee.com providing all possible details.
