- Page 1 Industrial PC PPC-A55-070 PN: CS10600-RK3568-070P Content can change at anytime, check documentation website for latest information. www.chipsee.com...
-
Page 2: Table Of Contents
Contents 1. PPC-A55-070 1.1. Product Overview 1.2. Ordering Options 1.2.1. Operating System 1.2.2. Optional Features 1.3. Hardware Features 1.4. Power Input 1.5. Touch Screen 1.6. Connectivity 1.6.1. RS232/RS485/CAN 1.6.2. USB Connectors 1.6.3. LAN Connectors 1.6.4. WiFi & BT Module 1.6.5. 4G/LTE Module 1.7. -
Page 3: Ppc-A55-070
PPC-A55-070 PPC-A55-070 Front View Rear View Chipsee Page 3 of 18... -
Page 4: Product Overview

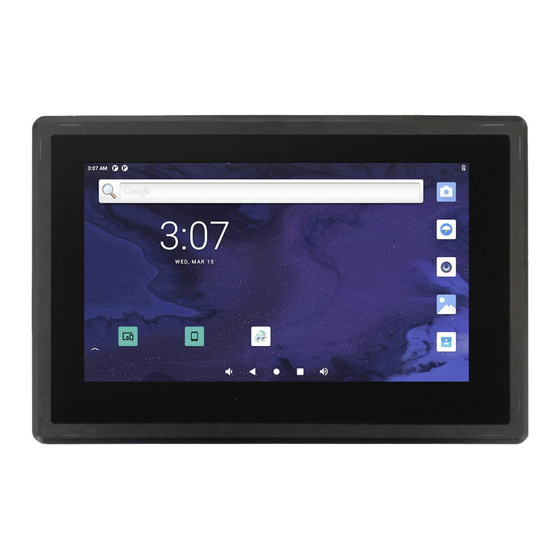

Product Overview ® The Cortex -A55 series PPC-A55-070 (PN: CS10600-RK3568-070P) is a high-quality IP65- compliant industrial panel PC. It features a 7” ten-point capacitive touch screen with a resolution of 1024 x 600 pixels and brightness of 500 cd/m . -
Page 5: Ordering Options
Software Documentation section provides a detailed instruction on how to install different OSes on your own. However, bear in mind that Chipsee can’t take the responsibility of inadequate installation procedure. If you “brick” your device, please contact Chipsee Technical Support at support@chipsee.com... -
Page 6: Optional Features
Chipsee store during the ordering process. Warning Installation, repair, and maintenance tasks should be performed by trained personnel only. Chipsee does not bear any responsibility for damage caused by inadequate handling of the product. Hardware Features The PPC-A55-070 Industrial Panel PC offers a broad range of performance and connectivity options for scalable integration, providing expandability according to future needs. -
Page 7: Power Input
Power Input The PPC-A55-070 Industrial Panel PC can be powered by a wide range of input voltages: From 6V to 36V DC. The power input connector is a 3-pin, 3.81mm terminal. The polarity and the pinout is clearly marked on the housing of the product as shown on the figure below. -
Page 8: Touch Screen
Use a high-quality Power Adapter Unit (PSU) with low EMR. You can also provide power from a battery. Make sure that the PPC-A55-070 Power Input connector (pin 3) is properly connected to the Power System Ground to provide sufficient EMI shielding and eliminate the problem entirely. -
Page 9: Connectivity
Connectivity Connectivity There are many connectivity options available on the PPC-A55-070 industrial PC. It has 1 x USB 2.0 HOST, 1 x USB 3.0 HOST, 1 x USB Type-C, 2 x RJ45, GbE (RJ45) Ethernet connector supporting up to 1 Gbps, and 5 x UART terminals (RS232/RS485/CAN). -
Page 10: Usb Connectors
PPC-A55-070 USB Connectors RS232 / RS485 / CAN Pin Definition: Pin 9 RS485_4+ CPU UART4, RS485 +(A) signal Pin 8 RS485_3- CPU UART3, RS485 –(B) signal Pin 7 RS485_3+ CPU UART3, RS485 +(A) signal Pin 6 RS232_0_RXD CPU UART0, RS232 RXD signal... -
Page 11: Lan Connectors
WiFi/BT module which supports BT/BLE 2.1/3.0/4.2, as well as 802.11ac/abgn 433Mbps 2.4/5.8 GHz Wireless LAN (WLAN). Figure 582: RTL8821CS WiFi/BT Module The PPC-A55-070 includes an SMA connector for an external WiFi/BT antenna, as illustrated in the figure below. Chipsee Page 11 of 18... -
Page 12: 4G/Lte Module
WiFi+BT Antenna SMA 4G/LTE Module The PPC-A55-070 Industrial Panel PC is equipped with a mini-PCIe connector that can connect a 4G/LTE module. The customer will also need a SIM Card Holder and a 4G/LTE Antenna Connector to ensure 4G/LTE works on the PPC-A55-070. SIM card does NOT support hot plug. -
Page 13: Tf Card & Sim Card Slot
TF Card & SIM Card Slot The PPC-A55-070 Industrial Panel PC features 1 x TF Card (micro SD) slot and 1 x SIM Card slot. TF Card can address up to 128GB of memory. -
Page 14: Hdmi Connector
The PPC-A55-070 Industrial Panel PC supports 1 x HDMI-D 2.0 interfaces. Figure 587: HDMI Connector PROG Button The PPC-A55-070 Industrial Panel PC has one button on the board marked as PROG, shown in the figure below. When button is pressed before power, the PPC-A55-070 will enter MASKROM mode which can use Type-C port do upgrade system. - Page 15 PPC-A55-070 GPIO Figure 589: GPIO Terminal (enclosed PC version) Isolated GPIO reduced schematic GPIO Pin Definition: Pin Number Definition Pin 1 Isolated Power Input2 Pin 2 Isolated Ground Input Pin 3 OUT1 Pin 4 OUT2 Pin 5 OUT3 Pin 6...
-
Page 16: Mounting Procedure
The PPC-A55-070 Industrial Panel PC can be mounted with 4 x M4 screws, enabling simplified installation onto any standard mounting fixture. PPC-A55-070 You can mount PPC-A55-070 with the Vesa (75 x 75mm) and Panel mounting methods, as shown on the figure below. Figure 590: Panel mounting ... -
Page 17: Mechanical Specifications
H). Please refer to the technical drawing in the figure below for details related to the specific product measurements. Figure 591: PPC-A55-070 Technical Drawing 3D Model PPC-A55-070 3D model can be viewed in the online doc in a web browser, if you are reading from the PDF version, please visit the online doc. -
Page 18: Disclaimer
If you cannot find the solution you’re looking for, feel free to contact us. Please email Chipsee Technical Support at support@chipsee.com, providing all relevant information. We value your queries and suggestions and are committed to providing you with the assistance you require.
