- Page 1 VC-Grid™ User Manual...
- Page 2 Dimensions All measurements are expressed in millimeters © 2012 Martin Professional A/S. Information subject to change without notice. Martin Professional A/S and all affiliated companies disclaim liability for any injury, damage, direct or indirect loss, consequential or economic loss or any other loss occasioned by the use of, inability to use or reliance on the information contained in this document.
-
Page 3: Table Of Contents
Contents Safety Information ..............4 Introduction . -
Page 4: Safety Information
Safety Information WARNING! Read the safety precautions in this section before installing, powering, operating or servicing this product. The following symbols are used to identify important safety information on the product and in this document: Warning! Warning! Warning! Warning! Safety hazard. Hazardous Fire hazard. - Page 5 • Do not allow the total length of the cables used in a linked chain of VC-Grid modules to exceed 50 m (164 ft.) from the 48 VDC power source (Martin P3 PowerPort 1500™, Martin Tripix Power IP66™ or other external PSU) to the last VC-Grid at the end of the chain.
-
Page 6: Introduction

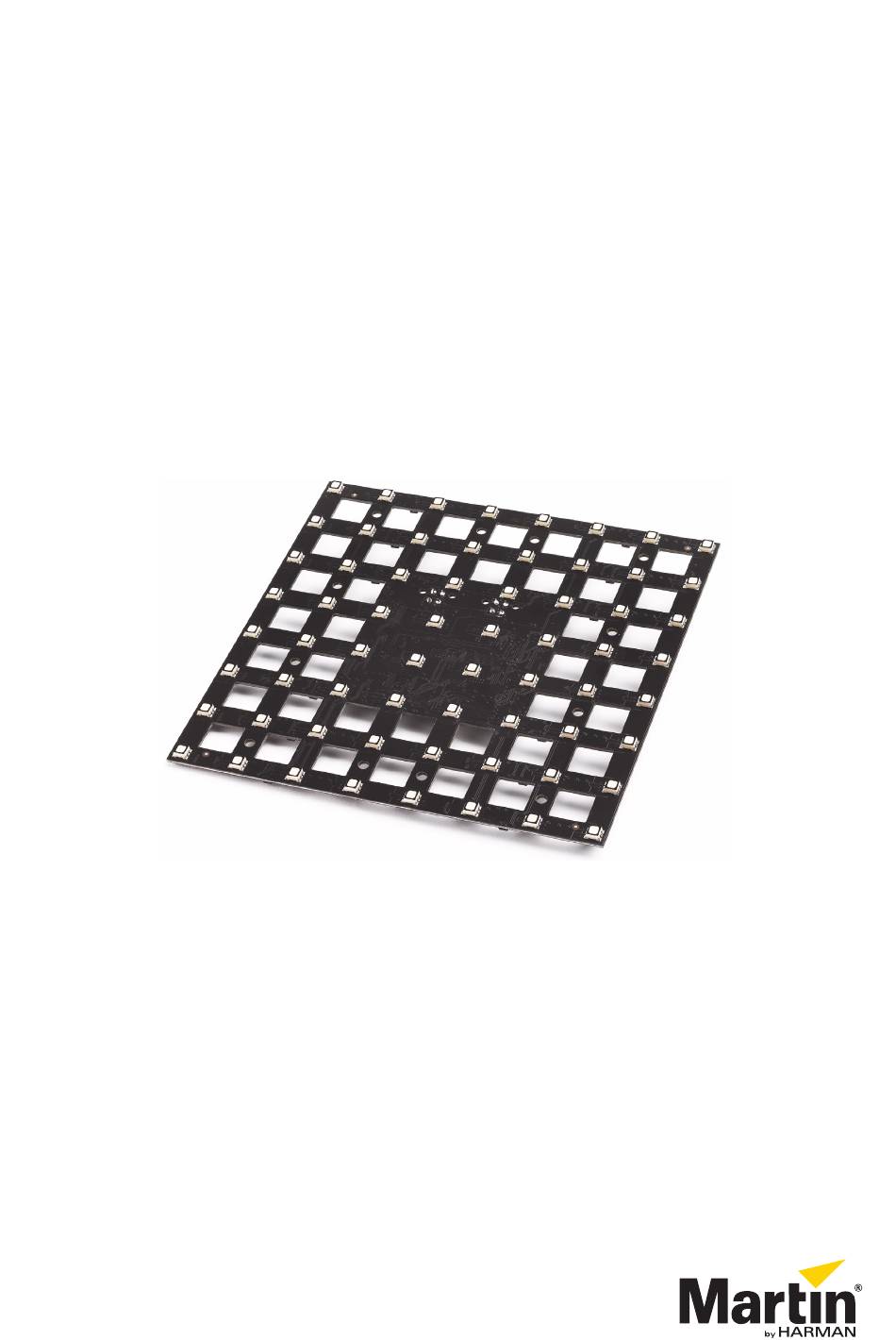

Introduction Thank you for selecting the Martin VC-Grid™. This compact LED-based display module is designed to integrate into a Martin P3™ video system to display video from a variety of sources, and it can also be controlled using DMX. Use of an RDM-compliant DMX controller such as the Martin M1™ or M-PC™ allows two-way communication and remote management of VC-Grid modules from the controller. -
Page 7: Vc-Grid Overview
VC-Grid overview A - Control button B - 48 VDC power + data throughput (THRU) C - 48 VDC power + data input (IN) Figure 1: Overview VC-Grid overview... -
Page 8: Physical Installation
Physical installation The VC-Grid can be installed in any orientation. The backs of modules are marked with arrows and the word TOP. To ensure the most evenly matched optical characteristics when viewing VC-Grids at an angle, install all modules with the arrows facing the same way. -
Page 9: System Installation
System installation Warning! Read “Safety Information” on page 4 of this manual carefully before installing a VC-Grid™ system. Warning! Connect the VC-Grid™ only to the devices specified in this manual and only using the Martin™ cables specified in this manual. Warning! Do not exceed the maximum numbers of devices that can be connected and maximum cable lengths specified in this manual and the manuals of the devices in the system. - Page 10 5. If necessary, extend the cable by connecting a Martin™ 4-pin XLR hybrid extension cable to the Hybrid-to-PCB adapter cable so that you can run the hybrid link to the P3 PowerPort 1500. Suitable extension cables are available from Martin™ in various lengths. See ”Extension cables” on page 27. 6.
-
Page 11: Installing A Dmx-Controlled System
Installing a DMX-controlled system In a DMX-controlled system, an RDM-compliant DMX lighting controller sends a DMX control data signal over a DMX link to the installation, and then over the hybrid link to the VC-Grids. The DMX link requires DMX cable. It can be maximum 300 m (1000 ft.) in length and must run in one single daisy-chain, but it can be extended or split into branches using an RDM-compliant amplifier/splitter such as the Martin RDM 5.5 Splitter™... - Page 12 Installing a DMX system using the Tripix Power IP66™ DMX/RDM Controller 48 VDC power DMX link (DMX cable) Hybrid (DC power and data) link DMX/RDM Splitter (if used) Tripix Power IP66 Tripix Power IP66 Hybrid lead-in Hybrid lead-in cable, Tripix cable, Tripix Power IP66 Power IP66...
- Page 13 To create a DMX-controlled installation that draws DC power from the Martin Tripix Power IP66: 1. See Figure 6 on page 12 for an overview of this type of installation 2. Make sure that no devices in the installation can be connected to AC mains power until all installation work is complete.
- Page 14 Installing a DMX system using a generic 48 VDC external PSU DMX/RDM Controller 48 VDC power DMX link (DMX cable) Hybrid (DC power and data) link DMX/RDM Splitter (if used) External PSU External PSU Hybrid DC Hybrid DC lead-in cable lead-in cable Inline fuse Inline fuse...
- Page 15 To create a DMX-controlled installation that draws DC power from a generic 48 VDC PSU: 1. See Figure 8 on page 14 for an overview of this type of installation. 2. Make sure that no devices in the installation can be connected to AC mains power until all installation work is complete.
- Page 16 Connecting additional devices to a VC-Grid chain Drawing off combined data and DC power from the end of a chain If you want to continue the hybrid link to carry 48 VDC power and a P3 video or DMX signal from the end of a VC-Grid chain to other devices, connect a Martin Hybrid Adapter Cable, PCB to 4-pin female XLR, P/N 11840159, to the OUT connector of the last module in the chain.
-
Page 17: System Setup
System setup Warning! Before applying power to the VC-Grid: • Carefully review the safety information starting on page 4 • Check that the installation is safe and secure. Setting up for P3 display A Martin P3™ system allows video to be displayed on an installation that consists of or includes VC-Grid devices. - Page 18 If a VC-Grid module is set to individual pixel control (see “Setting modules to grouped or pixel control modes” on page 19), LEDs are given DMX addresses using a ‘left-to-right, then down’ numbering system (like the reading order you are using for the words on this page). For example, if one VC-Grid RGB module is set to pixel control and set to DMX address 1, each of the 64 LEDs will use 3 channels, and the module will use DMX channels 1 - 192 (Channel 1 -3 for the top-left pixel, channels 4 - 6 for the next pixel on the right etc.
- Page 19 Setting DMX Addresses See Figure 10. To set DMX addresses using the M-PC application, open the RDM View window and click on Scan to display a list of the elements in the installation. Click in the Address box for each VC-Grid module and enter the desired DMX address, then press the Enter key to store the DMX address for that module.
-
Page 20: Using The Vc-Grid
Using the VC-Grid Warning! Before applying power to the VC-Grid: • Carefully review the safety information starting on page 4 • Check that the installation is safe and secure. Do not use the VC-Grid if the ambient temperature exceeds 45° C (113° F) or falls below -20° C (-4° F). P3 display The VC-Grid will display video from all common video sources sent via a P3 controller. - Page 21 VC-Grid CW, MW and WW LEDs Output Indication Action required LEDs 1 Busy (e.g. booting up or writing to Wait a moment for normal operation Constant and 3 flash memory). to be resumed. Error. The VC-Grid has encountered Perform a factory reboot, followed by LED 1 Constant a fatal error and can not run.
- Page 22 Testing, rebooting and returning to defaults The tables below list the functions of the control button on each VC-Grid module. Test patterns are stored in onboard memory. This lets you test the LEDs without an external controller, but test patterns can also be called up on P3 system controllers and the P3 PowerPort 1500™. Button action Function Short press...
-
Page 23: Service And Maintenance
Service and maintenance Warning! Read “Safety Information” on page 4 before carrying out service on the VC-Grid. Warning! Isolate the installation from AC mains power before servicing. Warning! Refer any service operation not described in this manual to a qualified service technician. -
Page 24: Troubleshooting
Troubleshooting Problem Probable cause(s) Remedy Check that system is correctly connected, set up Control is lost and pressing and running. control button causes VC-Grid Error has occurred. Hold control button pressed in until it turns blue, to show constant or flashing red then release, to reboot VC-Grid. -
Page 25: Specifications
Specifications Physical Length ..............185 mm (7.3 in.) Width . - Page 26 Construction Base............. Black FR4 circuit board Transparency through module (unmasked area) .
- Page 27 VC-Grid to VC-Grid link cables Hybrid link cable, PCB to PCB, 200 mm (7.9 in.)........P/N 11840160 Hybrid link cable, PCB to PCB, 400 mm (15.7 in.).
- Page 28 www.martin.com • Olof Palmes Allé 18 • 8200 Aarhus N • Denmark Tel: +45 8740 0000 • Fax +45 8740 0010...
