Sunny SF-B1509C User Manual

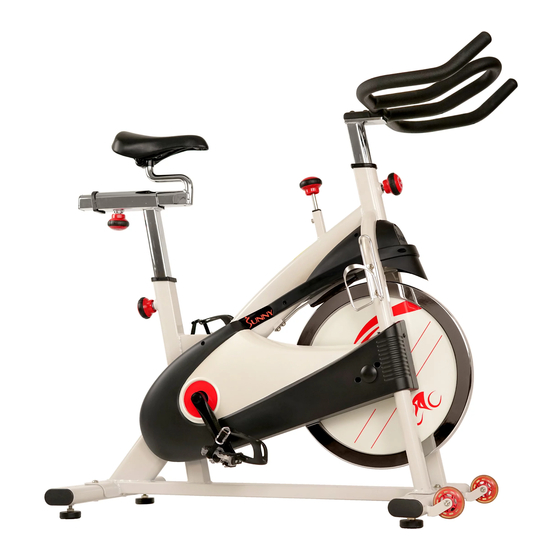

Chain drive premium indoor cycling bike
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CHAIN DRIVE PREMIUM INDOOR
CYCLING BIKE
SF-B1509C
USER MANUAL
WARNING! Your indoor cycling bike is not designed for reverse pedaling! Failure to
comply with this warning may result in permanent damage to your new equipment.
IMPORTANT!
Read all instructions carefully before using this product.
Retain
owner's manual for future reference. For customer service, please contact:
support@sunnyhealthfitness.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF-B1509C and is the answer not in the manual?

Questions and answers

Related Manuals for Sunny SF-B1509C

Summary of Contents for Sunny SF-B1509C

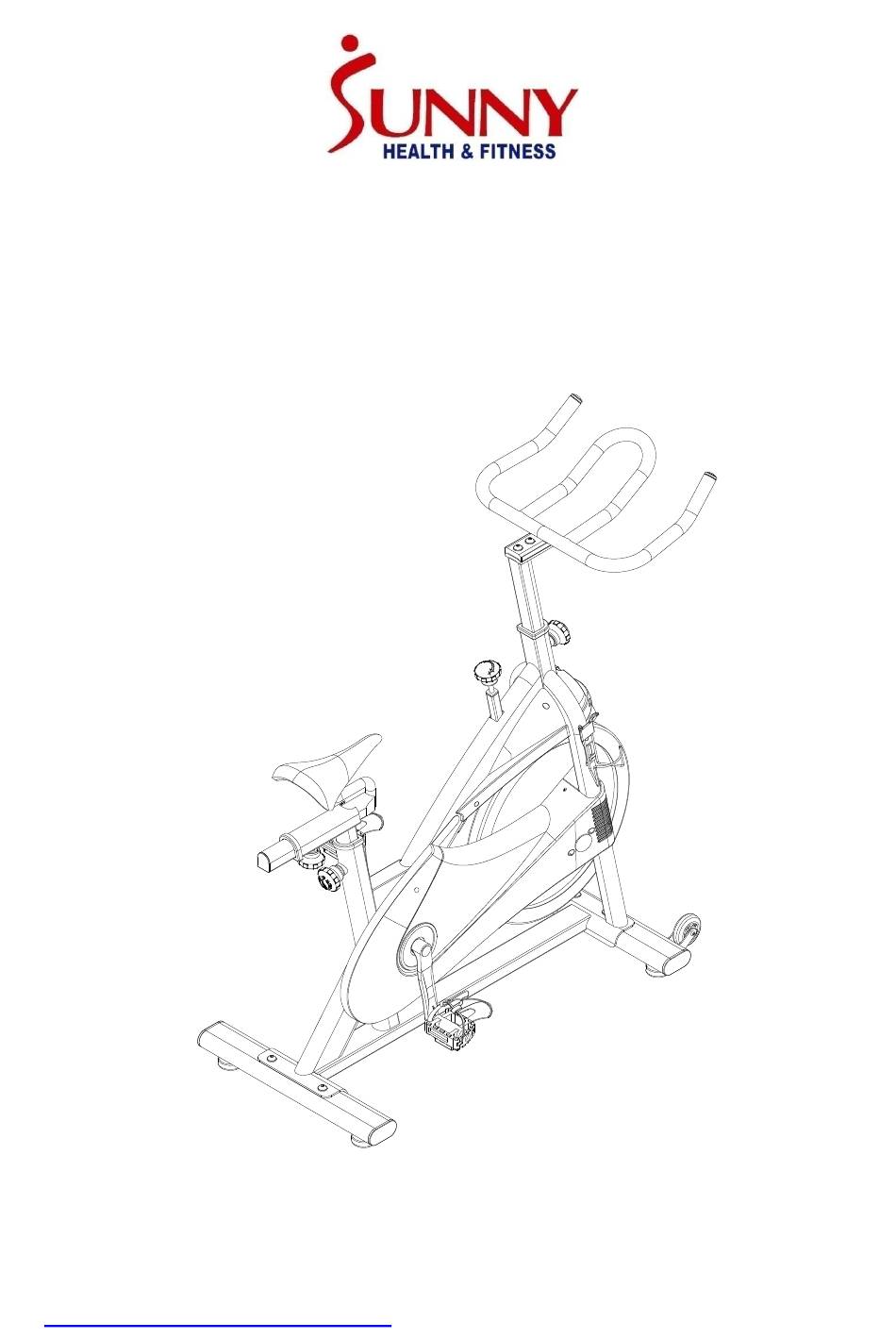

  • Page 1 CHAIN DRIVE PREMIUM INDOOR CYCLING BIKE SF-B1509C USER MANUAL WARNING! Your indoor cycling bike is not designed for reverse pedaling! Failure to comply with this warning may result in permanent damage to your new equipment. IMPORTANT! Read all instructions carefully before using this product.

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be assured if the equipment is assembled, maintained, and used properly.

  • Page 3: Exploded Drawing

    EXPLODED DRAWING...

  • Page 4: Parts List

    PARTS LIST Description Spec. Description Spec. Bearing Main Frame 6004-2RS Saddle post Reed Handlebar Wave washer d20*Φ26*0.3 Handlebar post M10*1.25*H7.5*S14 Adjusting screw M8*H5.5*S14 Front stabilizer Tension knob φ58*44*M8*18 Rear stabilizer M10*H7*S17 Φ Brake rod Seat slider tube 10*270*M8*20*M6*7*M 10*95 Bushing Screw M10*25*S6 20*20*74...

  • Page 5: Hardware Package

    HARDWARE PACKAGE...
  • Page 6 ASSEMBLY INSTRUCTIONS #9 M10*25*S6 4PCS #10 d10*Φ20*2.0 4PCS STEP 1: Attach the Front and Rear Stabilizers (No. 6 & No. 7) to the Main Frame (No. 1) using 4 Screws (No. 9) and 4 Flat Washers (No. 10). Tighten and secure with Allen Wrench (No. 79).
  • Page 7 #22 M5*16*Φ10 2PCS #23 d5*Φ13*1 2PCS STEP 2: Connect the Left and Right Pedals (No. 41L & No. 41R) to the Left and Right Crank Arms (No. 36L & No. 36R). Before you begin, immobilize the crank arms by turning the tension knob all the way to the right.
  • Page 8 #19 M10*25*S6 2PCS #20 d10*Φ20*1.5 2PCS STEP 3: Loosen and remove the Adjustment Knob (No. 16). Insert the Handlebar Post (No. 4) into the tube located on the front of the Main Frame (No. 1). Adjust the Handlebar Post (No. 4) to the desired position then secure it in place by reinserting and tightening the Adjustment Knob (No.
  • Page 9 ADJUSMENT GUIDE  ADJUSTING THE HEIGHT AND BALANCE In order to achieve a smooth and comfortable ride, you must ensure that the stability of the bike is secured. If you notice that the bike is unbalanced during use, you should adjust the foot levelers located beneath the Front and Rear Stabilizers of the bike.
  • Page 10  ADJUSTING THE SADDLE The seat of this bike is fully adjustable as it moves Up, Down, Fore (forward), Aft (backward). To adjust the height of the Saddle Post (No. 2), loosen and pull the Adjustment Knob (No. 16) outward, then raise or lower the saddle to the desired height. Once adjusted, re-insert and tighten the Adjustment Knob (No.
  • Page 11  PEDAL STRAP ADJUSTMENT Your feet should be secured in the toe clips during exercise. Place your feet as far forward into the toe-clips as you can. With your feet in place, turn the crank to bring one foot to within arm’s reach, grasp the pedal strap and pull it upward to tighten the toe-clip cage, then insert the strap back into the hoop of the toe-clip.
  • Page 12 MOVING THE BIKE & BRAKING/DISMOUNTING  TRANSPORTING THE BIKE To move the bike, first ensure that the Handlebar (No. 3) is properly secured. If the handlebar is loose, tighten the Adjustment Knob (No. 16) to secure it. Next, stand at the front of the bike so that you’re directly in front of the handlebar. Firmly grasp and hold each side of the handlebar, place one foot on the front stabilizer and tilt the bike towards you until the transportation wheels on the front stabilizer touch the ground.

  • Page 13: Chain Adjustments

    CHAIN ADJUSTMENTS *NOTE: Tools S19, S18, & S13 (Cylinder Allen Wrenches) are not included. Remove the End Cap (No. 70) from the Outer Chain Cover (No. 68) as indicated above in Figure A. Unscrew and remove the Nuts (No. 32) on the right side of the flywheel using Cylinder Allen Wrench S19 as indicated above in Figure B.
