Sunny SF-B1509 User Manual

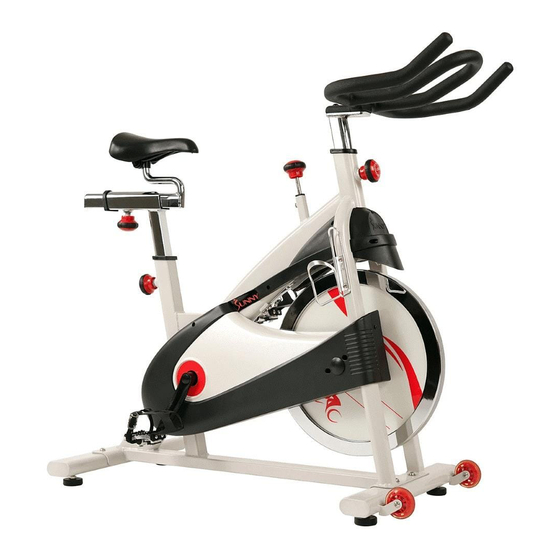

Belt drive premium indoor cycling bike
Hide thumbs Also See for SF-B1509:
Table of Contents

Advertisement

Quick Links

Download this manual
BELT DRIVE PREMIUM
INDOOR CYCLING BIKE
SF-B1509
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US:
support@sunnyhealthfitness.com
or 1- 877 - 90SUNNY (877-907-8669).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF-B1509 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sunny SF-B1509

Summary of Contents for Sunny SF-B1509

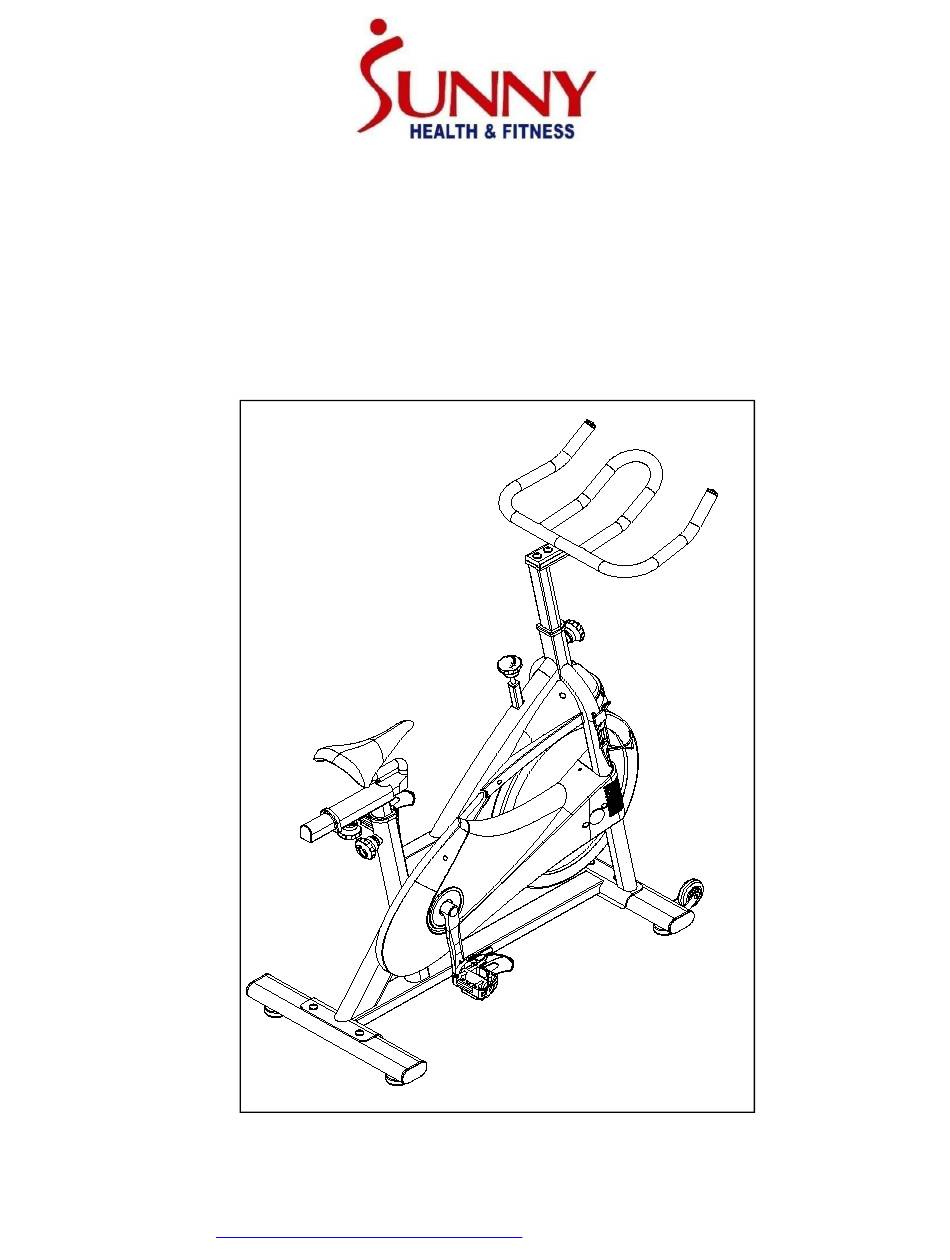

  • Page 1 BELT DRIVE PREMIUM INDOOR CYCLING BIKE SF-B1509 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
