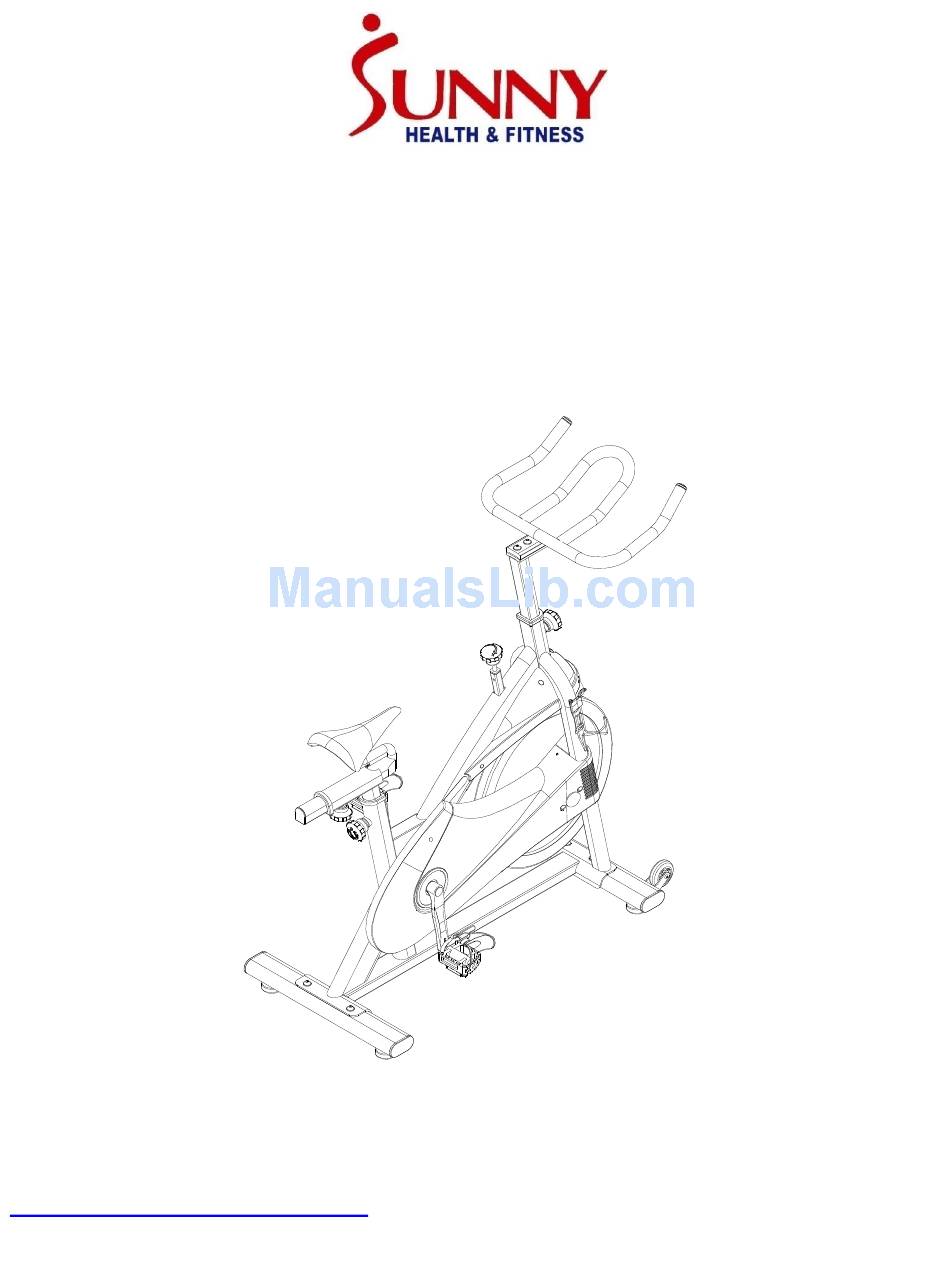

- Page 1 BELT DRIVE PREMIUM INDOOR CYCLING BIKE SF-B1509 USER MANUAL IMPORTANT! Read all instructions carefully before using this product. Retain owner’s manual future reference. customer service, please contact: support@sunnyhealthfitness.com...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be assured if the equipment is assembled, maintained, and used properly. -
Page 3: Exploded Drawing
EXPLODED DRAWING 5 6 6 4 1 L 3 6 L 4 1 R 3 6 R S 1 4 - 1 5 - 1 7... -
Page 4: Parts List
PARTS LIST Description Description Main Frame Bearing 6004-2RS Saddle post Reed d20 Handlebar Wave washer d20*26*0.3 Handlebar post Nut M10*1.25*H7.5*S14 Adjusting screw Nut M8*H5.5*S14 Front stabilizer Tension knob 55*44*M8*18 Rear stabilizer Nut M10*H7*S17 Seat slider tube Brake rod 10*270*M8*20*M6*7*M10*95 Screw M10*25*S6 Bushing 20*20*74 Flat washer d10*20*2.0 Spring 2.0*15*54*N12... -
Page 5: Hardware Package
HARDWARE PACKAGE... -
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTIONS # 9 M 1 0 * 2 5 * S 6 4 P C S 4PCS # 1 0 d 1 0 * Φ 2 0 * 2 . 0 4 P C S 4PCS # 7 9 STEP 1: Attach the Front and Rear Stabilizers (No. - Page 7 # 2 2 M 5 * 1 6 * Φ 1 0 2 P C S 2PCS # 2 3 d 5 * Φ 1 3 * 1 2 P C S 2PCS 3 6 L 4 1 L 3 6 R 4 1 R STEP 2: Connect the Left and Right Pedals (No.
- Page 8 # 1 9 M 1 0 * 2 5 * S 6 2 P C S # 2 0 d 1 0 * Φ 2 0 * 1 . 5 2 P C S # 7 9 STEP 3: Loosen and remove the Adjustment Knob (No. 16). Insert the Handlebar Post (No. 4) into the tube located on the front of the Main Frame (No.
- Page 9 ADJUSMENTS GUIDE # 8 0 ADJUSTING THE HEIGHT AND BALANCE In order to achieve a smooth and comfortable ride, you must ensure that the stability of the bike is secured. If you notice that the bike is unbalanced during use, you should adjust the foot levelers located beneath the Front and Rear Stabilizers of the bike.
-
Page 10: Adjusting The Saddle
ADJUSTING THE SADDLE The seat of this bike is fully adjustable as it moves Up, Down, Fore (forward), Aft (backward). To adjust the height of the Saddle Post (No. 2), loosen and pull the Adjustment Knob (No. 16) outward, then raise or lower the saddle to the desired height. Once adjusted, re-insert and tighten the Adjustment Knob (No. -
Page 11: Pedal Strap Adjustment
PEDAL STRAP ADJUSTMENT Your feet should be secured in the toe clips during exercise. Place your feet as far forward into the toe-clips as you can. With your feet in place, turn the crank to bring one foot to within arm’s reach, grasp the pedal strap and pull it upward to tighten the toe-clip cage, then insert the strap back into the hoop of the toe-clip. - Page 12 MOVING THE BIKE & BRAKING/DISMOUNTING TRANSPORTING THE BIKE To move the bike, first ensure that the Handlebar (No. 3) is properly secured. If the handlebar is loose, tighten the Adjustment Knob (No. 16) to secure it. Next, stand at the front of the bike so that you’re directly in front of the handlebar.
-
Page 13: Belt Adjustments
BELT ADJUSTMENTS # 8 0 S 1 9 # 8 0 S 1 3 S 1 8 *PLEASE NOTE: Tools S19, S18, & S13 (Cylinder Allen Wrenches) are not included. Remove the End Cap (No. 70) from the Outer Chain Cover (No. 68) as indicated above in Figure A. -
Page 14: Maintenance And Care
MAINTENANCE & CARE IMPORTANT! Safe and effective use can only be assured if the equipment is assembled, maintained, and used properly. It is your responsibility to ensure that the equipment is maintained regularly. Any components found to be worn and/or damaged should be replaced before continuing use of the equipment. - Page 15 Weekly Maintenance: This maintenance ensures overall performance. Check for vibration and loose parts during this inspection. Part Recommended Action Cleaner Lubricant Toe Clips/ Inspect for ware and tear. Re-tighten if Toe Straps loose or disconnected. Replace if needed. Tighten all the frame hardware (Bolts, nuts, Hardware screws) Inspect, clean, lubricate and tighten all...
