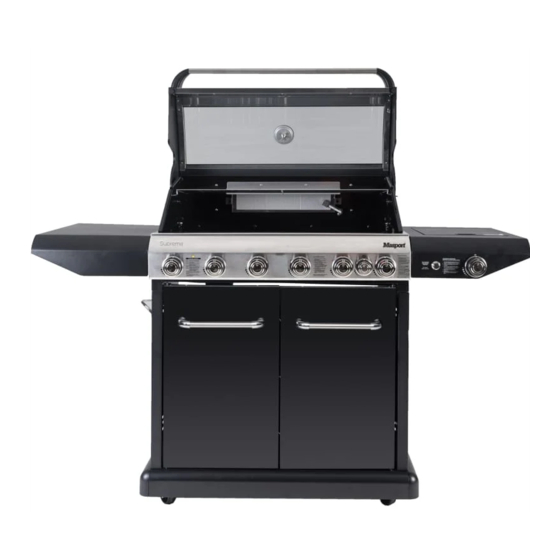

MASPORT 4/6 BURNER 215 SERIES
OWNER'S MANUAL
Please read these instructions carefully before assembly, to
reduce risk of fire, burn hazard or other injury.
Keep these instructions in a safe place for future use.
This BBQ is for Outdoor Use Only.
This manual covers a range of barbecues which include: Origin, Origin
Plus, Origin Deluxe, Elite, Equip 6 and Supreme.
masport.com
Part N
: 546948.A.3
o
PANTONE 648C
548948.A.3 - Masport 4/6 Burner 215 Series June 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 215 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Masport 215 Series

Summary of Contents for Masport 215 Series

  • Page 1 This BBQ is for Outdoor Use Only. This manual covers a range of barbecues which include: Origin, Origin Plus, Origin Deluxe, Elite, Equip 6 and Supreme. masport.com Part N : 546948.A.3 PANTONE 648C 548948.A.3 - Masport 4/6 Burner 215 Series June 2021...

  • Page 2: Table Of Contents

    FAT AWAY DISCHARGE FUNCTION - GRILL AND PLATE ORIENTATION FOR MODELS WITH ROTISSERIE - ASSEMBLY INSTRUCTIONS NATURAL GAS CONVERSION LEAK TESTING INSTALLATION OPERATION TROUBLESHOOTING PARTS LIST FASTENER KITS OPTIONAL EXTRAS CARE AND MAINTENANCE TECHNICAL DATA PANTONE 648C 548948.A.3 - Masport 4/6 Burner 215 Series June 2021...

  • Page 3: Introduction

    To reduce the risk of fire, burn hazard or other injury, read the instructions carefully and be sure your appliance is properly installed and assembled. PANTONE 648C 548948.A.3 - Masport 4/6 Burner 215 Series June 2021...

  • Page 4: Warranty Information

    Do not use a rusty or dented gas cylinder with a damaged gas The cylinder manufacturer/distributor is responsible for the safety and valve. performance of the LPG cylinder. This is not included in the Masport BBQ • Do not fill the gas cylinder beyond 80% capacity.

  • Page 5: Disposal Of Packaging

    The following pages contain assembly instructions for various model options. Please ensure you identify your BBQ model so that the correct instructions can be follwoed. When assembling the cabinet, leave all of the screws loose until completey assembled, then tighten all screws. PANTONE 648C 548948.A.3 - Masport 4/6 Burner 215 Series June 2021...

  • Page 6: Assembly Instructions For Bbq Without Condiment Drawer

    Assemble 1pc Left skirt (item 3) to the Base tray using 3pcs Screw M6×12 (item a) and 1pc Screw M5*10 (item d) from the fastener kit. Screw M5*10 Screw M6*12 PANTONE 648C 548948.A.3 - Masport 4/6 Burner 215 Series June 2021...
  • Page 7 Tighten all screws when cabinet is assembled. Assemble the Left panel (item 6) and Right panel (item 7) to the Base tray using 4pcs Screw M6×12 (item a) from the fastener kit. Screw M6*12 M6*12 PANTONE 648C 548948.A.3 - Masport 4/6 Burner 215 Series June 2021...
  • Page 8 Side Panel Top Cabinet Side Panel Panels Step 2. Step 2 – Assemble this panel sub assembly to the rear panel of the cabinet using 3 xM6 x12 screws (item PANTONE 648C 548948.A.3 - Masport 4/6 Burner 215 Series June 2021...
  • Page 9 Assemble the door panel and the top cabinet panel using 4 xM6 x12 screws (item a). Keep the screws loose. Step 6. Once all the parts mentioned above are assembled tighten all the screws. PANTONE 648C 548948.A.3 - Masport 4/6 Burner 215 Series June 2021...
  • Page 10 When the Timer is OFF the flat on the shaft faces the Bottom / 6 o’clock position and the Flat on the knob insert should match this position. PANTONE 648C 548948.A.3 - Masport 4/6 Burner 215 Series June 2021...
  • Page 11 (item 15) has not been fitted then assemble the knob (item 15) to the valve shaft on side burner assembly (item 17), and make sure the red point on the knob is on the upper direction. Connect the side burner hose to the main manifold, and tighten carefully. PANTONE 648C 548948.A.3 - Masport 4/6 Burner 215 Series June 2021...
  • Page 12 Some barbecue models require the stepped screws (item e) are removed to insert the drip tray. Once the tray is positioned correctly, refit step screw (item e). Step screw (e) PANTONE 648C 548948.A.3 - Masport 4/6 Burner 215 Series June 2021...

  • Page 13: Assembly Instructions For Bbq With Condiments Drawer & Other Features

    Assemble 1pc Left skirt (item 3) to the Base tray using 3pcs Screw M6×12 (item a) and 1pc Screw M5*10 (item d) from the fastener kit. Screw M5*10 Screw M6*12 PANTONE 648C 548948.A.3 - Masport 4/6 Burner 215 Series June 2021...
  • Page 14 Tighten all screws when cabinet is assembled. Assemble the Left panel (item 6) and Right panel (item 7) to the Base tray using 4pcs Screw M6×12 (item a) from the fastener kit. Screw M6*12 M6*12 PANTONE 648C 548948.A.3 - Masport 4/6 Burner 215 Series June 2021...
  • Page 15 Assemble the side panels before assembling the top panel on the cabinet then assemble this sub-assembly on the barbecue. Screw M6x12 Assemble the side panels before assembling the top panel on the cabinet then assemble this sub-assembly on the barbecue. Screw M6x12 (countersunk head screw) PANTONE 648C 548948.A.3 - Masport 4/6 Burner 215 Series June 2021...
  • Page 16 11. 1) In some barbecue models the knobs are not fitted to the grill then assemble 6 pcs knob (item 15) to the valve shaft on the body assembly, as PANTONE 648C 548948.A.3 - Masport 4/6 Burner 215 Series June 2021...
  • Page 17 13. Loosen the 3 Screws (item b), remove the 4th & 5th screws, then assemble the heat shield (item 33) and left hand side shelf (item 16) to the PANTONE 648C 548948.A.3 - Masport 4/6 Burner 215 Series June 2021...
  • Page 18 17), and make sure the red point on the knob is on the upper direction. 2) Connect the side burner hose to the main manifold, and tighten carefully. NOTE! Before operating this appliance for the first time LEAK TEST ALL JOINTS. PANTONE 648C 548948.A.3 - Masport 4/6 Burner 215 Series June 2021...
  • Page 19 Cabinet). 17. Insert the wiring plug of USB into the USB port (if included in your model of BBQ). 18. Connecting the ignition wire/ wires to the electronic module PANTONE 648C 548948.A.3 - Masport 4/6 Burner 215 Series June 2021...
  • Page 20 Connect the lead wire with the electronic ignition, no Connect the lead wire with sequence is required, the electronic ignition, no sequence is required, 4 / 6 / 7 Pin Electronic Module: PANTONE 648C 548948.A.3 - Masport 4/6 Burner 215 Series June 2021...
  • Page 21 Listen & look for the sparks at all the burners’ individually and make sure that all the valves are functioning smooth by turning them “ON” (by pushing the control knob in and turning anticlockwise) and “OFF” (by pushing the control knob in and turning clockwise). PANTONE 648C 548948.A.3 - Masport 4/6 Burner 215 Series June 2021...

  • Page 22: Inserting/Changing The Battery

    The cooking plate and deep dish must not be used at the same time. The barbecue is designed to operate safely with approx 34% of the cooking surface being on an open grill. PANTONE 648C 548948.A.3 - Masport 4/6 Burner 215 Series June 2021...

  • Page 23: Fat Away Discharge Function - Grill And Plate Orientation

    Front of the BBQ Back of the BBQ This end sits on the Front end of the BBQ Oil Drain Direction Front of the BBQ Back of the BBQ PANTONE 648C 548948.A.3 - Masport 4/6 Burner 215 Series June 2021...

  • Page 24: For Models With Rotisserie - Assembly Instructions

    Mains adaptor 240 volt > 3 volt DC 3 milliamps or greater. Screw M6*12 Fibre washer Nut M6 Rotisserie NOTE: For 215 models without a Rotisserie, there is an option to purchase 559218 Rotisserie Set-215. PANTONE 648C 548948.A.3 - Masport 4/6 Burner 215 Series June 2021...

  • Page 25: Natural Gas Conversion

    In the case of balconies, at least 20% of the total of the side, back The 215 Series of BBQ has the option of being converted to natural gas. and front wall areas shall be and remain open and unrestricted.

  • Page 26: Operation

    90mm match or than 66% of the cooking area as a solid plate. Full lighting gun coverage of plates will cause excessive build-up of heat and damage the barbecue. PANTONE 648C 548948.A.3 - Masport 4/6 Burner 215 Series June 2021...
  • Page 27 When you have finished using your barbecue, turn off the gas at the bottle. Push in and then turn all the control valves fully clockwise to the “OFF” position. Wait until the barbecue is sufficiently cool before replacing PANTONE 648C 548948.A.3 - Masport 4/6 Burner 215 Series June 2021...
  • Page 28 Too much heat can cause fire. Also, the burners should always be placed on the low setting during cooking. Finally, extinguish flare-ups by applying baking soda or salt PANTONE 648C 548948.A.3 - Masport 4/6 Burner 215 Series June 2021...
  • Page 29 NOTE: Wash hands frequently if arranging raw meats between cooking sessions. PANTONE 648C 548948.A.3 - Masport 4/6 Burner 215 Series June 2021...

  • Page 30: Troubleshooting

    USE ONLY THE 5/8” x 18 GAS CONNECTION HOSE AND REGULATOR PROVIDED! If a replacement is necessary, please contact either our Masport Customer Service Department or your local dealer. The use of unauthorised parts can create unsafe conditions and environment.

  • Page 31: Parts List

    15. Knob x 6 or 8 pcs 16. Side shelf × 1pc x 1pc (Timer Shown) 17. Side burner assembly 18. Drip tray × 1pc 19. Grease cup × 1pc 20. Flame tamer × 1pc PANTONE 648C 548948.A.3 - Masport 4/6 Burner 215 Series June 2021...
  • Page 32 39. Drawer Handle 40. Drawer front panel 41. Slides 42. Drawer holder 43. Smoker drawer cover 44. Somker drawer NOTE: Items 24-31 are for barbecues fitted with a rotisserie PANTONE 648C 548948.A.3 - Masport 4/6 Burner 215 Series June 2021...
  • Page 33 (Screw (SS) M6*12 - 43pcs for Super Grande 215 & Super Grande RB 215 & Super Grande RB/W BBQs) f. Nut M6 g. Screw (Black) M6*40 h. Washer 4pcs 2pcs 2pcs PANTONE 648C 548948.A.3 - Masport 4/6 Burner 215 Series June 2021...

  • Page 34: Fastener Kits

    Only one Fastener Kit is supplied per barbecue. The kit type depends upon the model of barbecue. This Owner’s manual is used for various 215 series barbecue models. The parts illustrated in this manual may have slight variations to the items supplied with any one specific model.

  • Page 35: Optional Extras

    559521 Plate Gloss P/E 390 x 485 559220 Plate C/I 390 x 485 559641 Plate Matt P/E 390 x 485 547140 Plate Gloss P/E FADS 395 x 485 559672 Deep Dish P/C 385 x 480 PANTONE 648C 548948.A.3 - Masport 4/6 Burner 215 Series June 2021...

  • Page 36: Care And Maintenance

    Your BBQ features Stainless Steel components. All Stainless Steel grades require a level of care and protection to retain their appearance. Stainless PANTONE 648C 548948.A.3 - Masport 4/6 Burner 215 Series June 2021...
  • Page 37 Caution/Danger: Extreme care is required when cooking with hood in closed position. Frequent checks must be undertaken for the heat and temperature to ensure safe cooking. Too much heat can cause fire. PANTONE 648C 548948.A.3 - Masport 4/6 Burner 215 Series June 2021...
  • Page 38 If you do require any further assistance with your barbecue from your local dealer or Masport, please have this serial number handy as it will quickly allow us to identify the barbecue.

  • Page 39: Technical Data

    Made in P.R.C For storage and cylinder exchange, disconnect hose at the cylinder only, do not disconnect hose from the appliance. FINISHED SIZE: 150mm (W) x 180mm (H) 546943.B.0 PANTONE 648C 548948.A.3 - Masport 4/6 Burner 215 Series June 2021...
