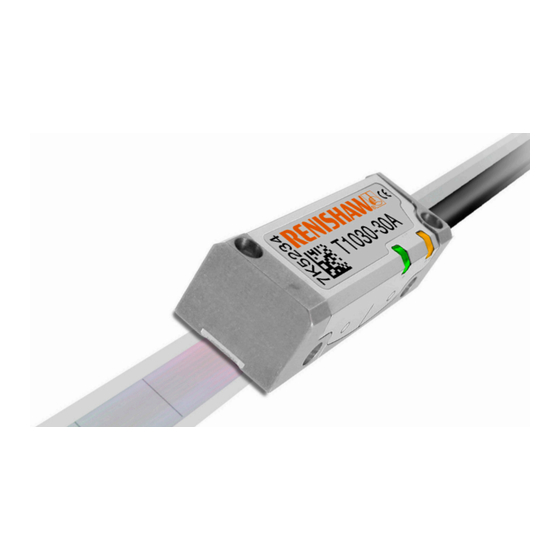

- Page 1 Installation guide M-9589-9013-03-C TONiC RSLM high accuracy linear encoder T103x RTLC-S linear encoder system ™...
-
Page 2: Table Of Contents
Contents Product compliance Storage and handling TONiC readhead installation drawing RTLC-S installation drawing Scale application End covers TONiC interface drawing TONiC quick start guide System connection Readhead mounting and alignment Reference mark selector and limit magnet installation Datum clamps System calibration Output signals Speed Electrical connections... -
Page 3: Product Compliance
Renishaw distributor. transferred to any other media or language, by any means without the written prior permission of Renishaw. The publication of material within this document does not imply freedom from the patent rights of Renishaw plc. TONiC RTLC-S installation guide... -
Page 4: Storage And Handling
Storage and handling Minimum bend radius RTLC-S – 150 mm NOTE: Ensure self-adhesive tape is on the outside of bend. Scale and readhead Readhead only Acetone N-heptane Storage Operating Humidity +70 °C +70 °C -20 °C 0 °C Chlorinated COCH Solvents UHV readhead Bakeout +120 °C... -
Page 5: Tonic Readhead Installation Drawing
TONiC T103x readhead installation drawing Dimensions and tolerances in mm Forward direction of 2 off holes M2.5 through, readhead relative to scale counterbored Ø3 x 2.75 deep IN-TRAC reference mark from alternative mounting face (Yaw tol. ±0.4°) Reference mark selector ‡... -
Page 6: Rtlc-S Installation Drawing
RTLC-S installation drawing (adhesive datum clamp) Dimensions and tolerances in mm Overall length ( L + 37 ) START FINISH Scale length ( L ) Measuring length ML = ( L-17) (ML = ( L-32) with dual limits) 0.2/100 Reference mark F = axis of motion selector magnet Optional end cover... -
Page 7: Scale Application
Begin to remove the backing paper from the scale and insert scale >8.5 mm into the applicator up to the ‘START’ point (as shown). Clean scale using Renishaw scale cleaning wipes Splitter screw Ensure backing tape is routed under the splitter screw. -
Page 8: Tonic Interface Drawing
TONiC interface drawing TONiC quick-start guide Dimensions and tolerances in mm This section is a quick-start guide to installing a TONiC system. More detailed information on installing the system is contained in the following sections of the installation guide. INSTALLATION Ensure scale, readhead optical window and mounting faces are clean and free from obstructions. -
Page 9: System Connection
System connection Approved ESD precautions must be followed at Disconnecting the readhead all times during readhead and interface electrical Remove the cover plate on the interface connections. The readhead is connected to the (2 x M2.5 hex head screws). Ti/TD interface via a small, rugged connector to allow for easy feed-through during installation. -
Page 10: Readhead Mounting And Alignment
Readhead mounting and alignment Reference mark selector and limit magnet installation Mounting brackets IMPORTANT: Allow 24 hours after scale application before fitting magnets. For accuracy and ease of positioning of reference mark selector and limit magnets, the applicator tool (A-9653-0201) should be used. The bracket must have a flat mounting surface and should provide The magnet should be attached to the applicator tool as shown below. -
Page 11: System Calibration
System calibration Calibration is an essential operation that completes readhead set-up, with the optimum incremental Release CAL button. and reference mark signal settings stored in the readhead’s non-volatile memory. Check the ‘Readhead mounting/installation’ and recalibrate the system. Before system calibration: NOTE: System must be recalibrated after restoring factory defaults. -
Page 12: Output Signals
Output signals Interface output (digital) Ti0004 to Ti20KD Interface Interface Interface output (analogue) Ti0000 only and TD4000 to TD0040 Ti0000 Ti0004 - Ti20KD TD4000 - TD0040 Function Output type Signal Function Output type Signal Power 5 V Power Power 7, 8 7, 8 5 V Sense 2, 9... -
Page 13: Electrical Connections
Electrical connections Analogue outputs TONiC grounding and shielding Extension cable maximum 50 m Customer dependent upon electronics 120R Ti/TD interface clocked output Readhead Inner shield option Output signals Outer shield Limit output (No limits on TD interfaces) 5 to 24 V IMPORTANT: The outer shield should be connected to the machine earth (Field Ground). -
Page 14: Output Specifications
Output specifications Digital output signals Analogue output signals Form – Square wave differential line driver to EIA RS422A (except limits P and Q) Incremental … 2 channels A and B in quadrature (90° phase shifted) Incremental 2 channels V and V differential sinusoids in quadrature centred on 1.65 V (90°... -
Page 15: General Specifications
Scale technical specifications T103x with Ti0000 <100 mA Form 0.4 mm x 8 mm (H x W) includes adhesive T103x with Ti0004 – Ti20KD or TD4000 – TD0040 <200 mA NOTE: Current consumption figures refer to Datum fixing Loctite 435 unterminated systems. - Page 16 RENISHAW ® and the probe symbol used in the RENISHAW logo are registered trade marks of Renishaw plc in the United Kingdom and other countries. apply innovation and names and designations of other Renishaw products and technologies are trade marks of Renishaw plc or its subsidiaries.
