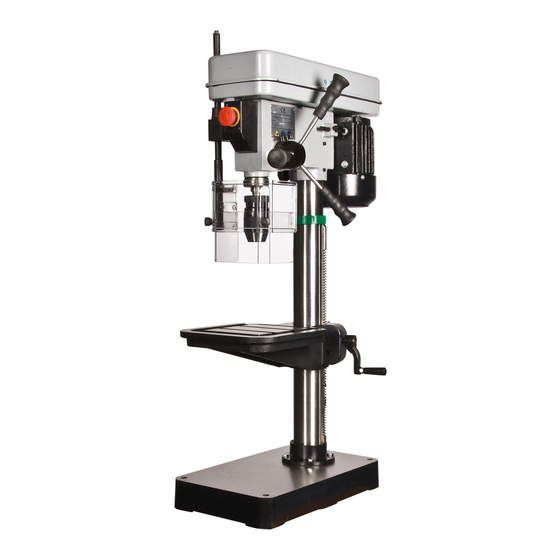

V BELT DRIVEN DRILLING MACHINES
HU 16-2 TOPLINE
HU 16-4 TOPLINE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HU 16-2 TOPLINE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Huvema HU 16-2 TOPLINE

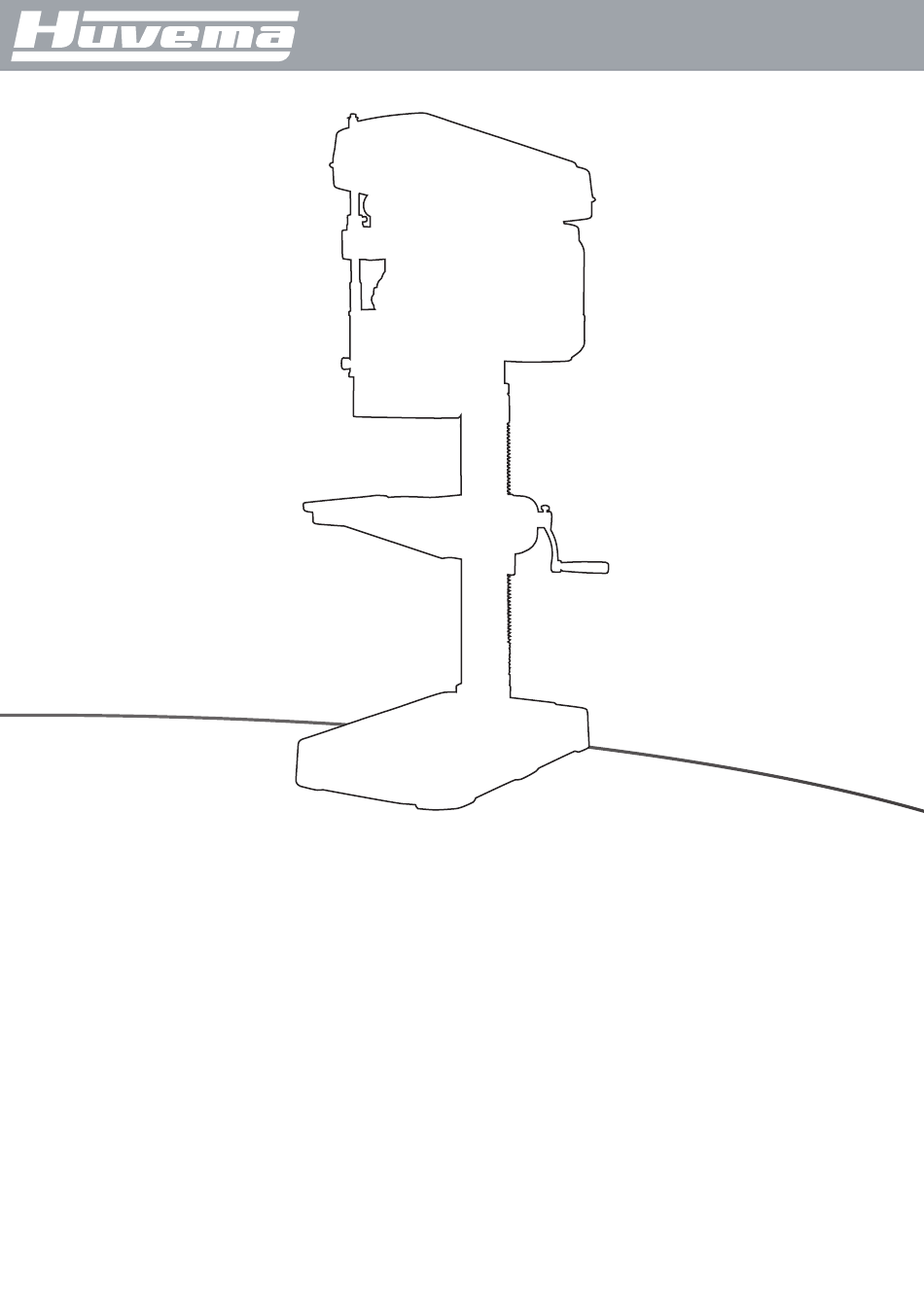

  • Page 1 V BELT DRIVEN DRILLING MACHINES HU 16-2 TOPLINE HU 16-4 TOPLINE...
  • Page 2 Fig. A - Main parts Fig. 1 Fig. 3 Fig. 2 CHANGES AND T YPING ERRORS RESER VED CHANGES AND T YPING ERRORS RESER VED...
  • Page 3 Fig. 4 Fig. 5 Fig. 7 Fig. 6 Fig. 9 Fig. 8 CHANGES AND T YPING ERRORS RESER VED...
  • Page 4 Fig. 10 Fig. 11 Fig. 12 Fig. 13 Fig. 15 Fig. 14 CHANGES AND T YPING ERRORS RESER VED CHANGES AND T YPING ERRORS RESER VED...
  • Page 5 Fig. 15A Fig. 15B Fig. 16 Fig. 17 Fig. 18 CHANGES AND T YPING ERRORS RESER VED...
  • Page 6 Fig. 19 Fig. 20 CHANGES AND T YPING ERRORS RESER VED CHANGES AND T YPING ERRORS RESER VED...
  • Page 7: Table Of Contents

    able of conTenTs General safety rules for all machines Additional safety rules Instructions for using this machine Unpacking Assembly Adjustment 5.1 Table adjustment 5.2 Feed depth adjustment 5.3. Speed adjustment 5.4 Belt tension adjustment 5.5 Quill spring adjustment Usage 6.1 Installing drills 6.2 Positioning the work piece 6.3 Using the vice Troubleshooting...
  • Page 8: General Safety Rules For All Machines

    hU 16-2 T /hU 16-4 T ench drilling machines opline opline 1. g eneral safeTy rUles for all machines N.B.: Read the instructions carefully in order to avoid any problems. As with all machinery there are certain hazards involved with operation and use of this machine. Using the machine with respect and caution will considerably lessen the possibility op personal injury.
  • Page 9: Additional Safety Rules

    ddiTional safeTy rUles Always keep in mind that: • the machine must be switched off and disconnected from the power supply during maintenance and repairs, • clamped workpieces may only be measured when the machine is switched off. Never lean over the machine, mind loose clothing, ties, jewellery etc. and wear a cap. Do not remove safety devices or guards.
  • Page 10: Assembly

    4. a ssembly • Place the column on the base and align the holes in the column support with the holes in the base (fig. 1). • Secure the column with the bolts and washers. • Take off the collar and the rack. (fig. 2) •...
  • Page 11: Belt Tension Adjustment

    5.4 b elT Tension adjUsTmenT For proper belt tension: Use a light pressure on the V-belt. The distance should be 13 mm 5.5 Q Uill spring adjUsTmenT Figure 16 • Pull the knob towards you and move it to the next or previous notch. •...
  • Page 12: Maintenance

    8. m ainTenance Warning! Turn the machine off and disconnect it from the mains before maintenance or repairs are performed! • Frequently blow out any dust that may accumulate inside the motor. • Apply a light coat of car wax to the table and column to keep the surfaces clean. •...
  • Page 13: Parts List

    10. p arTs lisT Fig. B - Explosion drawing CHANGES AND T YPING ERRORS RESER VED...
  • Page 14 Description Qty. Description Qty. Base Bearing Washer Exigence switch Bolt m8x25 bench Spindle Base flange Drift key Screw m6x10 Arbor Crank sleeve handle Chuck Table bracket Bolt Tilt scale Motor plate Gear shaft Bolt Helical gear Motor Elevating worm 1/2 Bolt clamp m12x40 Rubber Table arm bracket...
  • Page 15 (in accordance with supplement II, section 1A of the Machinery Directive) Industrie & Handelsonderneming Huberts bv, Kennedylaan 14, 5466 AA Veghel, the Netherlands, in the capacity of importer, is to be held responsible for declaring that the Huvema machines: Bench drilling machines HU 16-2 Topline / HU 16-4 Topline...

This manual is also suitable for:

Hu 16-4 topline

Table of Contents
