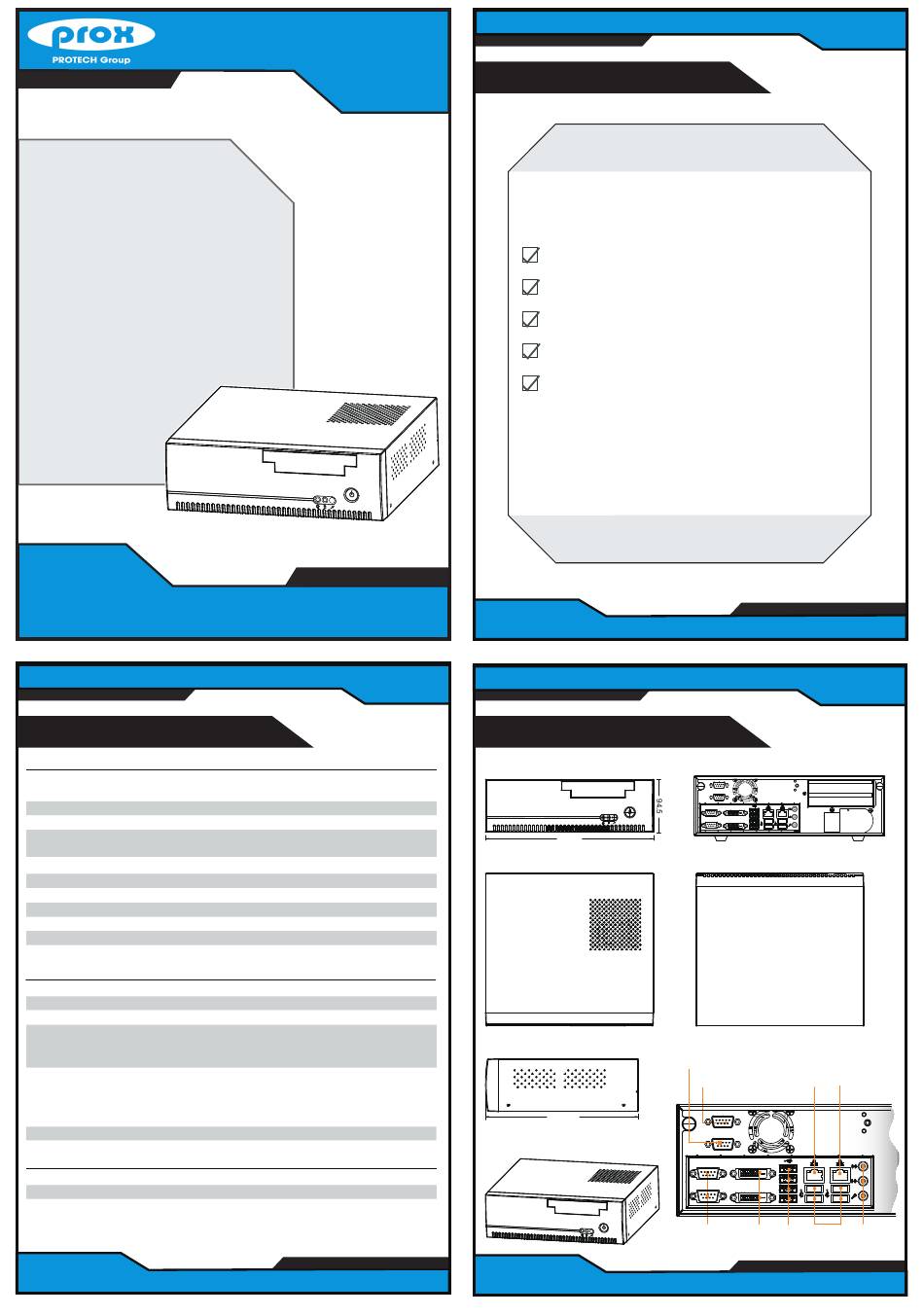

protech prox SA-5700 Quick Reference Manual

SA-5700
Quick
Reference
Guide

Specifications

System
CPU Support Intel 6 th / 7
®
processor (LGA1151)
Chipset Intel H110/Q170
®
Memory Support 2 x DDR4 SO-DIMM sockets (up to 32GB)
Expansion Slots 1 x PCIe (x16) slot
1 x mini PCIe slot
Drive Bay 2 x 2.5" SATA HDDs or 2 x 2.5" SSDs (optional)
Operating System Win 7 / Win 8.1 / Win 10 IoT LTSB 2016 / Ubuntu 16.04
Power Supply ATX 270W
System Weight 5 kg
Dimensions (WxHxD) 300 x 94 x 270 mm
Certificate FCC / CE
I/O Ports
Display 2 x DVI-D, 1 x DP (optional)
USB 4 x USB 3.0 and 4 x USB 2.0
Audio Line-in, Line-out, Mic-in
LAN 2 x GbE LANs support Wake-on-LAN, PXE
LAN1: Intel
®
LAN2: Intel
®
Serial Port COM1 for RS-232/422/485
COM2/COM3/COM4 for RS-232
(COM1/COM2/COM4 support +5V / +12V / RI selectable)
COM5/COM6 for RS-232 (optional)
Parallel Port 1 x Parallel Port (optional)
Environment
Operating Temp. HDD: 0°C ~ 40°C (32°F ~ 104°F)
Storage Temp. -20°C ~ 80°C (-4°F ~ 176°F)
Humidity 20% ~ 90%
®
Note: Intel 7th generation CPU is NOT compatible with Win 7 / Win 8.1.
All Rights Reserved. Copyright 2021
SA-5700
th Gen. Core™ i3/i5/i7/ Pentium / Celeron
®
I219 LM
I210 AT

Packing Checklist

If you discover any item below are damaged or
lost, please contact your vendor immediately.
SA-5700
Driver/Manual DVD
This Quick Reference Guide
Mini Jumper (2 mm)
Power Cord
Ver. Q3

System View

Front View
®
300.2
Top View
Side View
272.79

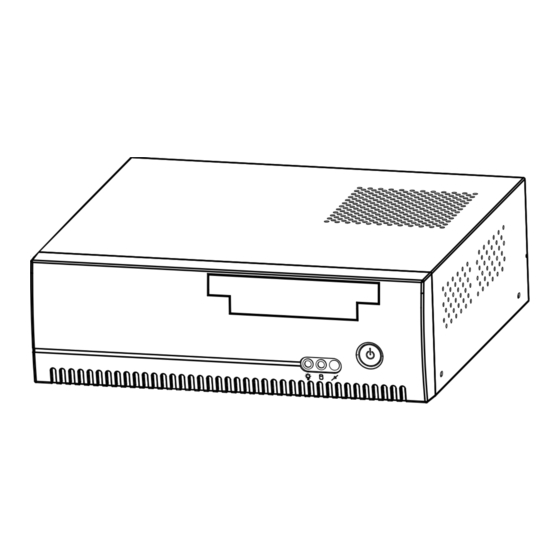

Quarter View
SA-5700
x 1
x 1
x 1
x 6
x 1
SA-5700
Rear View
COM2 DVI-D
COM1
DVI-D
Bottom View
I/O View
COM4
LAN1 LAN2
COM3
COM2
DVI-D
COM1
DVI-D
COM2 4 x
2 x 4 x
USB 3.0
COM1 DVI-D USB 2.0
Line-in
Line-out
Mic-in
