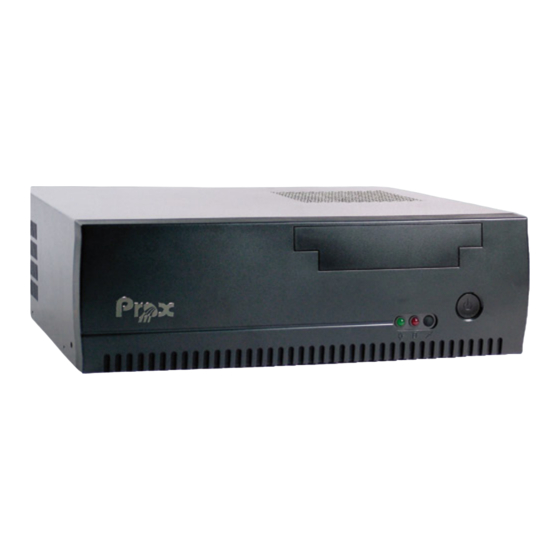

protech SA-5897 User Manual

Intel 3rd gen. core i7/i5/i3 & pentium book-sized pc with audio/2 lan/2dvi
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER'S
MANUAL
SA-5897
SA-5897
Intel
& Pentium
With Audio/2 LAN/2DVI
M2
®
rd
3
Gen. Core
®
Book-sized PC
TM
i7/i5/i3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SA-5897 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for protech SA-5897

Summary of Contents for protech SA-5897

  • Page 1 USER’S MANUAL SA-5897 ® Intel Gen. Core i7/i5/i3 ® & Pentium Book-sized PC With Audio/2 LAN/2DVI SA-5897...
  • Page 2 Copyright Notice ® SA-5897 Intel Gen. Core ® i7/i5/i3 & Pentium Book-sized PC With Audio/2LAN/2DVI COPYRIGHT NOTICE All trademarks and registered trademarks mentioned herein are the property of their respective owners. This manual is copyrighted in May 2013 (Revision edition: July 2013). You may not reproduce or transmit in any form or by any means, electronic, or mechanical, including photocopying and recording.

  • Page 3: Copyright Notice

    Copyright Notice FCC NOTICE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 4: Table Of Contents

    Contents TABLE OF CONTENTS CHAPTER 1 INTRODUCTION About This Manual…............System Specification…............Safety Precautions…............CHAPTER 2 HARDWARE CONFIGURATION Jumper & Connector Quick Reference Table…....Component Locations….…..........How to Set the Jumpers…..........COM Port Connector…...………………......CPU Selection.………….………........Keyboard & Mouse Connector…………………………… Reset Connector…………………………………………...
  • Page 5 Contents VGA Driver Utility………………………………….……. LAN Driver Utility……...........…..Sound Driver Utility……………………………………… CHAPTER 4 AMI BIOS SETUP Introduction…..............Entering Setup…..............Main…………..............Advanced…................ Chipset…................4-26 Boot……................4-35 Security…................4-39 Save & Exit…..............4-42 APPENDIX A SYSTEM DIAGRAMS Exploded Diagram for Whole System..........APPENDIX B TECHNICAL SUMMARY Block Diagram…................

  • Page 6: Chapter 1 Introduction

    CHAPTER INTRODUCTION This chapter gives you the information for SA-5897. It also outlines the System specification. Section includes: About This Manual System Specifications Safety Precautions Experienced users can skip to chapter 2 on page 2-1 for Quick Start. Page:1-1...

  • Page 7: About This Manual

    Chapter 4 AMI BIOS Setup This chapter indicates you how to set up the BIOS configurations. Appendix A System Diagrams This appendix shows the exploded diagrams and part numbers of SA-5897 components. Appendix B Technical Summary This appendix gives you the information about the Technical maps, Watchdog-timer configuration, and Flash BIOS Update.

  • Page 8: System Specification

    1 x MiniPCIe , 2 x PCI slot or 1 x PCIe 16x (optional) Environment Operation Temp. 0° ~ 40° C ( 32° ~ 104° F ) Storage Temp. - 20° ~ 60° C ( - 4° ~ 140° F ) Humidity 20% ~ 90% ′ Page: 1-3 SA-5897 USER S MANUAL...

  • Page 9: Safety Precautions

    Always disconnect power when the system is not in use. Disconnect power when you change any hardware devices. For instance, when you connect a jumper or install any cards, a surge of power may damage the electronic components or the whole system. Page: 1-4 ′ SA-5897 USER S MANUAL...

  • Page 10: Chapter 2 Hardware Configuration

    CHAPTER HARDWARE CONFIGURATION ** QUICK START ** Helpful information describes the jumper & connector settings, and component locations. Sections included: Jumper & Connector Quick Reference Table Component Locations Configuration and Jumper settings Connector’s Pin Assignments Page 2-1...

  • Page 11: Jumper & Connector Quick Reference Table

    Serial ATA Connector SATA1, SATA2, SATA3 Universal Serial Bus Connector USB45, USB89 USB & LAN Connector LAN1_USB1, LAN2_USB1 Display Port Connector JDP1 ATX Power Connector ATX_PWR1, ATX_PWR2 Sound Connector AUDIO1 DVI-I & DVI-D Connector DVI1 Page: 2-2 ′ SA-5897 USER S MANUAL...

  • Page 12: Component Locations

    2-2. COMPONENT LOCATIONS LAN1_USB1 KB_MS1 JD09M1 USB45 DVI1 AUDIO1 LAN2_USB1 USB89 ATX_PWR2 SYS_FAN1 JDP1 ATX_PWR1 PCI_E1 ® Intel PCH Q77 ® Intel LGA1155 M_PCIE1 JP10 CPU_FAN1 DIMM1 DIMM2 SA-5897 Front Connector, Jumper and Component locations ′ Page: 2-3 SA-5897 USER S MANUAL...

  • Page 13: How To Set The Jumpers

    PIN1 & PIN2 to create one setting by shorting. You can either connect PIN2 & PIN3 to create another setting. The same jumper diagrams are applied all through this manual. The figure below shows what the manual diagrams look and what they represent. Page: 2-4 ′ SA-5897 USER S MANUAL...
  • Page 14 Jumper Block looks like this JUMPER SETTINGS 2 pin Jumper close(enabled) Looks like this 3 pin Jumper 2-3 pin close(enabled) Looks like this Jumper Block 1-2 pin close(enabled) Looks like this ′ Page: 2-5 SA-5897 USER S MANUAL...

  • Page 15: Com Port Connector

    COM1_DSR# COM1_RX COM1_RTS# COM1 COM1_TX COM1_CTS# COM1_DTR# COM1_RI# COM2: COM2 Connector COM2 Is fixed as RS-232. The pin assignments are as follows: ASSIGNMENT ASSIGNMENT COM2_DCD# COM2_DSR# COM2_RX COM2_RTS# COM2 COM2_TX COM2_CTS# COM2_DTR# COM2_RI# Page: 2-6 ′ SA-5897 USER S MANUAL...

  • Page 16: Cpu Selection

    ® Intel Gen. Core Note: Manufacturing default – 2-6. KEYBOARD & MOUSE CONNECTOR KB_MS1: Keyboard and PS/2 Mouse Connector The pin assignments are as follows: ASSIGNMENT ASSIGNMENT KBDATA MSDATA VCC5 VCC5 KBCLK MSCLK ′ Page: 2-7 SA-5897 USER S MANUAL...

  • Page 17: Reset Connector

    FP1 (1, 3): Hard Disk Driver LED Connector HDDLED The pin assignments are as follows: ASSIGNMENT HD_LED+ HD_LED- 2-9. ATX POWER BUTTON FP1 (9, 11): ATX Power Button Power Button The pin assignments are as follows: ASSIGNMENT PWRBTNSW Page: 2-8 ′ SA-5897 USER S MANUAL...

  • Page 18: External Speaker Connector

    The pin assignments are as follows: ASSIGNMENT SPK_VCC SPEAKER SIGNAL SPEAKER SIGNAL SPEAKER SIGNAL 2-11. PLED CONNECTOR Power FP1 (2, 4): PLED Power Button The pin assignments are as follows: ASSIGNMENT PW_LED+ PW_LED- ′ Page: 2-9 SA-5897 USER S MANUAL...

  • Page 19: Clear Cmos Data Selection

    *To clear CMOS data, user must power-off the computer and set the jumper to “Clear CMOS” as illustrated above. After five to six seconds, set the jumper back to “Normal” and power-on the computer. Page: 2-10 ′ SA-5897 USER S MANUAL...

  • Page 20: Cpu Fan Connector

    CPU_FAN1: CPU Fan Connector The pin assignments are as follows: ASSIGNMENT VCC12 CPUFAN_TAC1 CPUFAN_CTL1 2-14. SYSTEM FAN CONNECTOR SYS_FAN1: System Fan Connector The pin assignments are as follows: ASSIGNMENT VCC12 SYS_FAN1 SYSFAN_TAC1 SYSFAN_CTL1 ′ Page: 2-11 SA-5897 USER S MANUAL...

  • Page 21: Serial Ata Connector

    SATA1, SATA2, SATA3: Three Serial ATA Connectors The pin assignments are as follows: SATA1: ASSIGNMENT SATA_TXPC0 SATA_TXNC0 SATA1 SATA_RXNC0 SATA_RXPC0 SATA2: ASSIGNMENT SATA_TXPC1 SATA_TXNC1 SATA_RXNC1 SATA2 SATA_RXPC1 SATA3: ASSIGNMENT SATA_TXPC4 SATA_TXNC4 SATA_RXNC4 SATA3 SATA_RXPC4 Page: 2-12 ′ SA-5897 USER S MANUAL...

  • Page 22: Universal Serial Bus Connector

    The pin assignments are as follows: ASSIGNMENT ASSIGNMENT USB_45_VCC5 USBP5 USB45 USB_45_VCC5 USBN4 USBN5 USBP4 USB89: USB Connector The pin assignments are as follows: ASSIGNMENT ASSIGNMENT USB_89_VCC5 USBP9 USB89 USB_89_VCC5 USBN8 USBN9 USBP8 ′ Page: 2-13 SA-5897 USER S MANUAL...

  • Page 23: Usb & Lan Connector

    10/100Mbps LAN Speed Indicator Orange Color on Giga LAN Speed Indicator No LAN switch/ hub connected. USB Signal: ASSIGNMENT ASSIGNMENT VCCUSB1 VCCUSB1 USBP0N USBP1N USBP0P USBP1P USB3_RX1_DN USB3_RX2_DN USB3_RX1_DP USB3_RX2_DP USB3_TX1_DN USB3_TX2_DN USB3_TX1_DP USB3_TX2_DP Page: 2-14 ′ SA-5897 USER S MANUAL...

  • Page 24: Lan Led Indicator

    No LAN switch/ hub connected. Right Side LED Orange Color Blinking LAN Message Active No LAN Message Active USB Signal: ASSIGNMENT ASSIGNMENT VCCUSB2 VCCUSB2 USBP2N USBP3N USBP2P USBP3P USB3_RX3_DN USB3_RX4_DN USB3_RX3_DP USB3_RX4_DP USB3_TX3_DN USB3_TX4_DN USB3_TX3_DP USB3_TX4_DP ′ Page: 2-15 SA-5897 USER S MANUAL...

  • Page 25: Display Port Connector

    Chapter 2 Hardware Configuration 2-18. DISPLAY PORT CONNECTOR JDP1 Display Port Connector The pin assignments are as follows: ASSIGNMENT ASSIGNMENT DP_C_DATA0+ DP_C_DATA3- JDP1 DP_C_DATA0- DP_C_AUX_ENJ DP_C_DATA1+ DP_C_AUX+ DP_C_DATA1- DP_C_HPD DP_C_DATA2+ DP_C_AUX- DP_VCC3_3 DP_C_DATA2- DP_VCC5 DP_C_DATA3+ DP_VCC3_3 Page: 2-16 ′ SA-5897 USER S MANUAL...

  • Page 26: Atx Power Connector

    ATX_PWR1: ATX Power Connector The pin assignments are as follows: ASSIGNMENT ASSIGNMENT +3.3V +3.3V +3.3V -12V PSON 5VSB +12V +12V +3.3V ATX_PWR1 ATX_PWR2: ATX Power Connector The pin assignments are as follows: ASSIGNMENT ATX_PWR2 +12V +12V ′ Page: 2-17 SA-5897 USER S MANUAL...

  • Page 27: Sound Connector

    AUDIO1: Sound Connector, including Line-In, Line-Out & Mic. ,Also can support only MIC connector. The pin assignments are as follows: Line-In ASSIGNMENT HD_LINE-L HD_LINE-R Line-Out ASSIGNMENT HD_OUT-L AUDIO1 HD_OUT-R MIC-In ASSIGNMENT HD_MIC1 HD_MIC_GND HD_MIC_VCC Page: 2-18 ′ SA-5897 USER S MANUAL...

  • Page 28: Dvi-I & Dvi-D Connector

    A16 / B16 HOT Plug Detect A17 / B17 DP_Data0- A18 / B18 DP_Data0+ A19 / B19 A20 / B20 A21 / B21 A22 / B22 A23 / B23 DP_Clock+ A24 / B24 DP_Clock- ′ Page: 2-19 SA-5897 USER S MANUAL...

  • Page 29: Chapter 3 Software Utilities

    CHAPTER SOFTWARE UTILITIES This chapter comprises the detailed information of VGA driver, LAN driver, and Sound driver. Sections included: Introduction. ® Intel Chipset Software Installation Utility VGA Driver Utility LAN Driver Utility Sound Driver Utility Page: 3-1...

  • Page 30: Introduction

    Chapter 3 Software Utilities 3-1. INTRODUCTION Enclosed with our SA-5897 package are our driver utilities, which come in a format of CD ROM or floppy disk. Refer to the following table for driver locations: FILENAME PURPOSE (Assume that CD ROM drive is D:)

  • Page 31: Intel ® Chipset Software Installation Utility

    OS installation. Please follow the steps below: Insert the driver disk into a CD ROM device. Under Windows system, go to the directory where the Utility driver is located. Run the application with administrative privileges. ′ Page:3-3 SA-5897 USER S MANUAL...
  • Page 32 Chapter 3 Software Utilities 3-3. VGA DRIVER UTILITY 3-3-1. Introduction The VGA interface embedded with our SA-5897 can support a wide range of display. You can display CRT, LVDS simultaneously with the same mode. 1. Win XP Series 2. Win 7 Series 3-3-2.
  • Page 33 Chapter 3 Software Utilities 3-4. LAN DRIVER UTILITY 3-4-1. Introduction SA-5897 is enhanced with LAN function that can support various network adapters. Installation programs for LAN drivers are listed as follows: 1. Win XP Series 2. Win 7 Series For more details on Installation procedure, please refer to Readme.txt file found on LAN Driver Utility.
  • Page 34 Run the application with administrative privileges.. Follow the instructions on the screen to complete the installation. Once the installation is completed, shut down the system and restart in order for the changes to take effect. Page:3-6 ′ SA-5897 USER S MANUAL...
  • Page 35 CHAPTER BIOS SETUP This chapter shows how to set up the AMI BIOS. Sections included: Introduction Entering Setup Main Advanced Chipset Boot Security Save & Exit Page: 4-1...
  • Page 36 Chapter 4 AMI BIOS Setup 4-1. INTRODUCTION The system SA-5897 uses an AMI Aptio BIOS that is stored in the Serial Peripheral Interface Flash Memory (SPI Flash) and can be updated. The SPI Flash contains the BIOS Setup program, Power-on Self-Test (POST), the PCI auto-configuration utility, LAN EEPROM information, and Plug and Play support.
  • Page 37 The BIOS Setup program can be used to view and change the BIOS settings for the computer. The BIOS Setup program is accessed by pressing the <Del> or <F2> key after the POST memory test begins and before the operating system boot begins. The settings are shown below. ′ Page: 4-3 SA-5897 USER S MANUAL...

  • Page 38: Entering Setup

    Setup program. In a moment, the main menu of the Aptio Setup Utility will appear on the screen: Page: 4-4 ′ SA-5897 USER S MANUAL...
  • Page 39 You may move the cursor by up/down keys to highlight the individual menu items. As you highlight each item, a brief description of the highlighted selection will appear at the bottom of the screen. ′ Page: 4-5 SA-5897 USER S MANUAL...

  • Page 40: Main

    Displays the date of current BIOS and Time version. System Date Month, day, year Specifies the current date. System Time Hour, minute, second Specifies the current time. Access Level No changeable options Displays the current user level. Page: 4-6 ′ SA-5897 USER S MANUAL...

  • Page 41: Advanced

    SATA Configuration Parameters. USB Configuration Sub-Menu USB Configuration Parameters. W83627UHG Super Sub-Menu System Super IO Chip Parameters. IO Configuration W83627UHG HW Sub-Menu Monitor hardware status Monitor WatchDog Sub-Menu Set System WatchDog Parameters. Configuration ′ Page: 4-7 SA-5897 USER S MANUAL...
  • Page 42 Chapter 4 AMI BIOS Setup BIOS Setting Options Description/Purpose CPU PPM Sub-Menu CPU PPM Configuration Configuration Switchable Graphics No changeable Switchable Graphics selections options Page: 4-8 ′ SA-5897 USER S MANUAL...
  • Page 43 S1 mode allows the CPU enter Stop State - Both S1 and S3 Clock mode to stop executing available for OS to instructions. choose from S3 allows the platform to enter Suspend to RAM mode. ′ Page: 4-9 SA-5897 USER S MANUAL...
  • Page 44 Description/Purpose Both S1 and S3 available for OS to choose from allows the OS to choose the sleep state type. S3 Video - Disabled Enable or Disable S3 video Repost Repost - Enabled Page: 4-10 ′ SA-5897 USER S MANUAL...
  • Page 45 Reports the Min CPU Speed Speed Processor Displays number of physical cores in No changeable options Cores processor. Intel HT Reports if Intel Hyper-Threading No changeable options Technology Technology is supported by processor ′ Page: 4-11 SA-5897 USER S MANUAL...
  • Page 46 Vander pool Technology. Hardware -Disabled To turn on/off the Mid Level Cache Prefetcher -Enabled (L2) streamer prefetcher. Adjacent Cache -Disabled To Turn on/off prefetching of Line Prefetch -Enabled adjacent cache lines. Page: 4-12 ′ SA-5897 USER S MANUAL...
  • Page 47 Shows [Empty] if no drive is installed. mSATA [drive] Displays the drive installed on this mSATA port. Shows [Empty] if no drive is installed. Note: Please configure the Mini PCI-E function as “mSATA” for this function. ′ Page: 4-13 SA-5897 USER S MANUAL...
  • Page 48 SWFM configuration to Feature Mask Sub-menu enable or disable the storage Configuration features. - Enabled Alternate ID Report alternate Device ID - Disabled Port - Disabled Enables or disable SATA port. 0/1/4/mSATA - Enabled Page: 4-14 ′ SA-5897 USER S MANUAL...
  • Page 49 Solid State Drive or Hard Disk Type - Solid State Drive Drive. On an edge detect from 0 to 1, the - Disabled Spin Up Device PCH starts a COMRESET - Enabled initialization sequence to the device. ′ Page: 4-15 SA-5897 USER S MANUAL...
  • Page 50 This is a workaround for OSes - Disabled without XHCI hand-off support. EHCI Hand- - Disabled This is a workaround for OSes w/o - Enabled EHCI hand-off support. Port 60/64 - Disabled Enables I/O port 60h/64h emulation Page: 4-16 ′ SA-5897 USER S MANUAL...
  • Page 51 Device power- Auto Host Controller. 'Auto' uses default up delay Manual value: for a Root port it is 100 ms, for a Hub port the delay is taken from Hub descriptor. ′ Page: 4-17 SA-5897 USER S MANUAL...
  • Page 52 W83627UHG Super IO Configuration screen BIOS Setting Options Description/Purpose W83627UHG No changeable options Displays the super IO chip model and Super IO Chip its manufacturer. COM 1/2 Sub-menu Set Parameters for COM 1/2 Page: 4-18 ′ SA-5897 USER S MANUAL...
  • Page 53 - Auto - IO=3F8h; IRQ=4 - IO=3F8h; IRQ=3,4,5,6,7,10,11,12 Specifies the base I/O address and Change - IO=2F8h; interrupt request for the serial port 0 Settings IRQ=3,4,5,6,7,10,11,12 if enabled. - IO=3E8h; IRQ=3,4,5,6,7,10,11,12 - IO=2E8h; IRQ=3,4,5,6,7,10,11,12 ′ Page: 4-19 SA-5897 USER S MANUAL...
  • Page 54 No changeable options Displays fan speed of the CPU fan. Displays voltage level of the +Vcore Vcore No changeable options in supply. Displays voltage level of the +12V +12V No changeable options in supply. Page: 4-20 ′ SA-5897 USER S MANUAL...
  • Page 55 Displays voltage level of the +5V in AVCC No changeable options supply. Displays voltage level of the +5V in 5Vcc No changeable options supply. Displays voltage level of the +5V in 5VSB No changeable options supply. ′ Page: 4-21 SA-5897 USER S MANUAL...
  • Page 56 Chapter 4 AMI BIOS Setup Hardware monitor manual mode screen BIOS Setting Options Description/Purpose - Disabled Smart Fan function enable or Cpu Smart Fan - Enabled disable. Page: 4-22 ′ SA-5897 USER S MANUAL...
  • Page 57 Watchdog configuration screen BIOS Setting Options Description/Purpose WatchDog - Second Set the watchdog count mode. Count Mode WatchDog multiple options ranging Sets the desired value (seconds) for TimeOut Value from 0 to 255 watchdog timer. ′ Page: 4-23 SA-5897 USER S MANUAL...
  • Page 58 Chapter 4 AMI BIOS Setup 4-4-8. CPU PPM Configuration CPU PPM configuration screen BIOS Setting Options Description/Purpose - Disabled EIST Enable/Disable Intel Speedstep. - Enabled - Disabled Turbo Mode Enable/Disable Turbo Mode. - Enabled Page: 4-24 ′ SA-5897 USER S MANUAL...
  • Page 59 Chapter 4 AMI BIOS Setup 4-4-9. Switchable Graphics Switchable graphics screen BIOS Setting Options Description/Purpose SG Mode - Muxless Switchable Graphics selections Select ′ Page: 4-25 SA-5897 USER S MANUAL...

  • Page 60: Chipset

    Chapter 4 AMI BIOS Setup 4-5. CHIPSET Chipset screen BIOS Setting Options Description/Purpose PCH-IO Sub-menu Sets Parameter for Panther Point Configuration (South Bridge) configuration. System Agent Sub-menu Sets Parameter for Ivy Bridge (North (SA) Bridge) configuration. Configuration Page: 4-26 ′ SA-5897 USER S MANUAL...
  • Page 61 Displays onboard PCH chip revision. PCI Express Sub-menu PCI Express Configuration settings. Configuration PCH Azalia Sub-menu PCH Azalia Configuration settings. Configuration PCH LAN - Disabled Enable or disable onboard NIC Controller - Enabled ′ Page: 4-27 SA-5897 USER S MANUAL...
  • Page 62 LAN cannot be disabled if ME is on at Sx state.) - Power off Restore AC Select AC power state when power is - Power on Power Loss re-applied after a power failure. Page: 4-28 ′ SA-5897 USER S MANUAL...
  • Page 63 Chapter 4 AMI BIOS Setup PCI express configuration screen BIOS Setting Options Description/Purpose Mini PCI-E - Mini PCI-E Set the mini PCI-E interface as Mini function - mSATA PCI-E or mSATA function. ′ Page: 4-29 SA-5897 USER S MANUAL...
  • Page 64 Azalia Internal - Enabled Enable or disable internal HDMI HDMI Codec codec for Azalia. - Disabled Azalia HDMI - Enabled Enable or disable internal HDMI codec Port D codec Port for Azalia. - Disabled Page: 4-30 ′ SA-5897 USER S MANUAL...
  • Page 65 Displays the system bridge name.. Bridge Name System Agent No changeable options Displays the IVB source code RC version module version Graphics Sub-menu Configure Graphic Settings. Configuration Memory Sub-menu Memory Configuration Parameters Configuration ′ Page: 4-31 SA-5897 USER S MANUAL...
  • Page 66 Primary Display Or - PEG select SG for Switchable Gfx. - SG Internal - AUTO Keep IGD enabled based on the setup Graphics - Disabled options. - Enabled LCD Control Sub-menu Display devices active selection Page: 4-32 ′ SA-5897 USER S MANUAL...
  • Page 67 VGA modes will be supported only on primary display" Secondary - Disabled Select Secondary Display Device IGFX Boot - CRT Display -DVI 1 -Onboard DP - DVI 2 ′ Page: 4-33 SA-5897 USER S MANUAL...
  • Page 68 Chapter 4 AMI BIOS Setup Memory configuration screen BIOS Setting Options Description/Purpose Memory No changeable option Displays the detail DRAM Information lists. information on platform. Page: 4-34 ′ SA-5897 USER S MANUAL...

  • Page 69: Boot

    Enable/Disable Quiet Boot Options - Enabled CSM16 Module No changeable options Displays the current Compatibility Version Support Module version. Boot Option - [Drive(s)] Allows setting boot option listed in #1~#3 - Disabled Hard Drive BBS Priorities. ′ Page: 4-35 SA-5897 USER S MANUAL...
  • Page 70 Chapter 4 AMI BIOS Setup Hard drive BBS priorities screen BIOS Setting Options Description/Purpose Boot Option #1 - [Drive(s)] Allows setting the boot order of - #3 - Disabled available drive(s). Page: 4-36 ′ SA-5897 USER S MANUAL...
  • Page 71 OpROM policy Legacy PXE OpROM - UEFI only - Legacy only Launch Storage - Do not launch Controls the execution of UEFI and OpROM policy Legacy Storage OpROM - UEFI only - Legacy only ′ Page: 4-37 SA-5897 USER S MANUAL...
  • Page 72 - Legacy only - Legacy first - UEFI first Other PCI - UEFI OpROM For PCI devices other than Network, device ROM Mass storage or Video defines which - Legacy OpROM priority OpROM to launch Page: 4-38 ′ SA-5897 USER S MANUAL...

  • Page 73: Security

    Options Description/Purpose Administrator Password can be 3-20 Specifies the administrator password. Password alphanumeric characters. User Password Password can be 3-20 Specifies the user password. alphanumeric characters. HDD Security Sub-menu Set HDD password. Configuration: ′ Page: 4-39 SA-5897 USER S MANUAL...
  • Page 74 Reports if there is security feature frozen. HDD User Pwd No changeable options Reports if there is HDD User Status Password installed. HDD Master No changeable options Reports if there is HDD Master Pwd Status Password installed. Page: 4-40 ′ SA-5897 USER S MANUAL...
  • Page 75 Set User Password can be up to Specifies the user password. (Need Password 32 alphanumeric TPM module) characters. Set Master Password can be up to Specifies the master password. Password 32 alphanumeric characters. ′ Page: 4-41 SA-5897 USER S MANUAL...

  • Page 76: Save & Exit

    Save the changes done so far as User No changeable options Defaults Defaults Restore User Restore the User Defaults to all the No changeable options Defaults setup options Forces to boot from selected Boot Override - [Drive(s)] [drive(s)]. Page: 4-42 ′ SA-5897 USER S MANUAL...
  • Page 77 APPENDIX SYSTEM ASSEMBLY This appendix contains the exploded diagram of theSA-5897 system. Section includes: Exploded Diagram for Whole System Page: A-1...

  • Page 78: Exploded Diagram For Whole System

    Appendix A System Assembly EXPLODED DIAGRAM FOR WHOLE SYSTEM Page: A-2 ′ SA-5897 USER S MANUAL...
  • Page 79 Appendix A System Assembly ′ Page: A-3 SA-5897 USER S MANUAL...
  • Page 80 APPENDIX TECHNICAL SUMMARY This section introduce you the maps concisely. Sections included: Block Diagram Interrupt Map DMA Channel Map I/O Map Memory Map Watchdog Timer Configuration Flash BIOS Update Page: A-1...

  • Page 81: Appendix B Technical Summary

    USB3.0 SATA SPI Flash ROM SATA Connector *3 128Mbit ALC 888S-VD2 High Definition Codec LOW PIN COUNT VRD12 ISL6364CR 80 PORT for Debug Serial 1/2 WINBOND LPC SIO FAN Connector Keyboard W83627UHG Mouse Page: A-2 ′ SA-5897 USER S MANUAL...

  • Page 82: Interrupt Map

    Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System ′ Page: A-3 SA-5897 USER S MANUAL...
  • Page 83 Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Page: A-4 ′ SA-5897 USER S MANUAL...
  • Page 84 Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System ′ Page: A-5 SA-5897 USER S MANUAL...
  • Page 85 Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System ® 4294967288 Intel 82574L Gigabit Network Connection ® 4294967289 Intel 82574L Gigabit Network Connection ® 4294967290 Intel 82574L Gigabit Network Connection Page: A-6 ′ SA-5897 USER S MANUAL...
  • Page 86 82579LM Gigabit Network Connection ® 4294967293 Intel USB 3.0 eXtensible Host Controller ® 4294967294 Intel HD Graphics Note: These resource information was gathered by Windows 7. (The IRQ could be assigned differently depending on OS.) ′ Page: A-7 SA-5897 USER S MANUAL...

  • Page 87: Dma Channels Map

    Appendix B Technical Summary DMA CHANNELS MAP TIMER CHANNEL ASSIGNMENT Channel 4 Direct memory access controller Page: A-8 ′ SA-5897 USER S MANUAL...

  • Page 88: I/O Map

    System timer 0x00000060-0x00000060 Standard PS/2 Keyboard 0x00000061-0x00000061 Motherboard resources 0x00000062-0x00000063 Motherboard resources 0x00000063-0x00000063 Motherboard resources 0x00000064-0x00000064 Standard PS/2 Keyboard 0x00000065-0x0000006F Motherboard resources 0x00000065-0x0000006F Motherboard resources 0x00000067-0x00000067 Motherboard resources 0x00000070-0x00000077 System CMOS/real time clock ′ Page: A-9 SA-5897 USER S MANUAL...
  • Page 89 Programmable interrupt controller 0x000000B8-0x000000B9 Programmable interrupt controller 0x000000BC-0x000000BD Programmable interrupt controller 0x000000C0-0x000000DF Direct memory access controller 0x000000E0-0x000000EF Motherboard resources 0x000000F0-0x000000FF Numeric data processor 0x00000290-0x00000297 Motherboard resources 0x000002F8-0x000002FF Communications Port (COM2) ® 0x000003B0-0x000003BB Intel HD Graphics Page: A-10 ′ SA-5897 USER S MANUAL...
  • Page 90 ATA Storage Controller - 1E08 ® 0x0000F0B0-0x0000F0B7 Intel 7 Series/C216 Chipset Family 2 port Serial ATA Storage Controller - 1E08 ® 0x0000F0C0-0x0000F0C3 Intel 7 Series/C216 Chipset Family 2 port Serial ATA Storage Controller - 1E08 ′ Page: A-11 SA-5897 USER S MANUAL...
  • Page 91 ATA Storage Controller - 1E00 ® 0x0000F130-0x0000F137 Intel 7 Series/C216 Chipset Family 4 port Serial ATA Storage Controller - 1E00 ® 0x0000F140-0x0000F147 Intel Active Management Technology - SOL (COM3) 0x0000FFFF-0x0000FFFF Motherboard resources 0x0000FFFF-0x0000FFFF Motherboard resources Page: A-12 ′ SA-5897 USER S MANUAL...

  • Page 92: Memory Map

    Motherboard resources 0xFED20000-0xFED3FFFF Motherboard resources 0xFED90000-0xFED93FFF Motherboard resources 0xFED45000-0xFED8FFFF Motherboard resources 0xFEE00000-0xFEEFFFFF Motherboard resources ® 0xF7C20000-0xF7C23FFF Intel 82574L Gigabit Network Connection ® 0xF7D35000-0xF7D350FF Intel 7 Series/C216 Chipset Family SMBus Host Controller - 1E22 ′ Page: A-13 SA-5897 USER S MANUAL...
  • Page 93 Intel HD Graphics 0xD0000-0xD3FFF PCI bus 0xD4000-0xD7FFF PCI bus 0xD8000-0xDBFFF PCI bus 0xDC000-0xDFFFF PCI bus 0xE0000-0xE3FFF PCI bus 0xE4000-0xE7FFF PCI bus 0x20000000-0x201FFFFF System board 0x3DA00000-0xFEAFFFFF PCI bus 0x3DA00000-0xFEAFFFFF Motherboard resources 0x40000000-0x401FFFFF System board Page: A-14 ′ SA-5897 USER S MANUAL...

  • Page 94: Watchdog Timer Configuration

    To exit the Extended Function Mode, writing 0xAA to the EFER is required. Once the chip exits the Extended Function Mode, it is in the normal running mode and is ready to enter the configuration mode. ′ Page: A-15 SA-5897 USER S MANUAL...

  • Page 95: Example Program

    ;------ Select Logical Device 8 of watchdog timer -------------------------------------------- ;------ Set second as counting unit -------------------------------------------------------------- 0f5h not 08h ;------ Set timeout interval as 30seconds and start counting --------------------------------- 0f6h ;------ Exit the extended function mode -------------------------------------------------------- 0aah Page: A-16 ′ SA-5897 USER S MANUAL...

  • Page 96: Flash Bios Update

    System will go into the BIOS setup menu. Select [Boot] menu. Select [Hard Drive BBS Priorities], set the USB bootable device to be the boot device. Press <F4> key to save configuration and exit the BIOS setup menu. ′ Page: A-17 SA-5897 USER S MANUAL...
  • Page 97 You can type AFUDOS /? to see all the definition of each control options. The recommended options for BIOS ROM update consist of following parameters: /P: program main BIOS image /B: program Boot Block /N: program NVRAM /X: don’t check ROM ID Page: A-18 ′ SA-5897 USER S MANUAL...
  • Page 98 After BIOS update procedures is complete, the messages should be like the figure shown below: You can restart the system and boot up with new BIOS now. Update is complete after restart. ′ Page: A-19 SA-5897 USER S MANUAL...
  • Page 99 Appendix B Technical Summary Verify during following boot that the BIOS version displayed at initialization screen has changed. Page: A-20 ′ SA-5897 USER S MANUAL...
