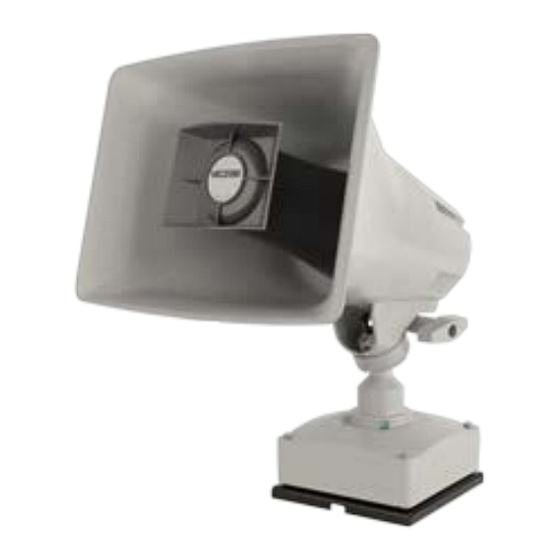

VIP-142-SA Revolution® Compliant
High Power IP Talkback Paging Horn
INTRODUCTION
The VIP-142-SA IP Paging Horn is a weather-
resistant, high-efficiency horn supporting
multiple audio and control protocols, all
delivered via a PoE-enabled IP network. A
separate microphone facilitates full-duplex
talkback communication. The high-impact
Polycarbonate construction resists the
deteriorating effects of outdoor installation.
SPECIFICATIONS
Access Methods
• Intrado Revolution system
• SIP telephone system
• Valcom M Cast Page Group
• PBX, FXO Port w/VIP-811A
• POTS telephone set w/VIP-811A
• PBX, FXS Port w/VIP-821A
Features
Indoor / Outdoor use
High Impact Polycarbonate Housing
Omni-Directional Mounting Base
Built-in Microphone
SIP & Multicast Enabled
Power over Ethernet (PoE) 802.3af and
802.3at (PoE+) compatible
Remote Management & Monitoring
Dimensions / Weight
• 11.75" H x 10.0" W x 11.0" D (29.8cm H x
25.4cm W x 27.9cm D)
• 4.3 lbs. (1.95 kg)
Audio Codecs
• G.722, G.711 (uLaw, aLaw)
Frequency Response
• 350 Hz to 7kHz
Audio Dispersion
• 120° Horizontal
• 90° Vertical
Nominal Power Requirements
IEEE 802.3af (PoE)
IEEE 802.3at (PoE+)
These products are intended for use with a UL
Listed power source marked "Class 2" or "LPS"
rated 24 Vdc, or 48 Vdc (PoE).
PoE and all interconnected ITE are intended for
intra-building.
Environment
Temperature:
Humidity:
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: To reduce the risk of electric shock,
Do not remove cover (or back).
No user serviceable parts inside.
Refer servicing to qualified service personnel.
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
1
Issue 1
Class 3
Class 4
- 20° to +50° C
0 - 95% non-condensing
947105

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Revolution VIP-142-SA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Valcom Revolution VIP-142-SA

  • Page 1 Access Methods • 120° Horizontal • Intrado Revolution system • 90° Vertical • SIP telephone system • Valcom M Cast Page Group Nominal Power Requirements • PBX, FXO Port w/VIP-811A IEEE 802.3af (PoE) Class 3 • POTS telephone set w/VIP-811A IEEE 802.3at (PoE+)
  • Page 2: Fcc Information

    FCC Information INSTALLATION This equipment has been tested and found Mounting to comply with the limits for a Class A digital The VIP-142 is shipped with the mounting base device, pursuant to Part 15 of the FCC Rules. attached to the horn with screws. Remove the These limits are designed to provide screws and save them for reassembly.
  • Page 3: Reset Modes

    IP Horn can be attached to the base. Note the Setup Tool. Download the latest version of the socketed connectors on the horn and base, and free IP Solutions Setup Tool from the Valcom make sure they line up properly before pressing website at www.valcom.com/vipsetuptool.
  • Page 4 Figure 2. Figure 3. Interior Mounting 947105...
  • Page 5 Figure 4. Exterior Mounting Figure 5. Interior I-Beam Mounting 947105...
