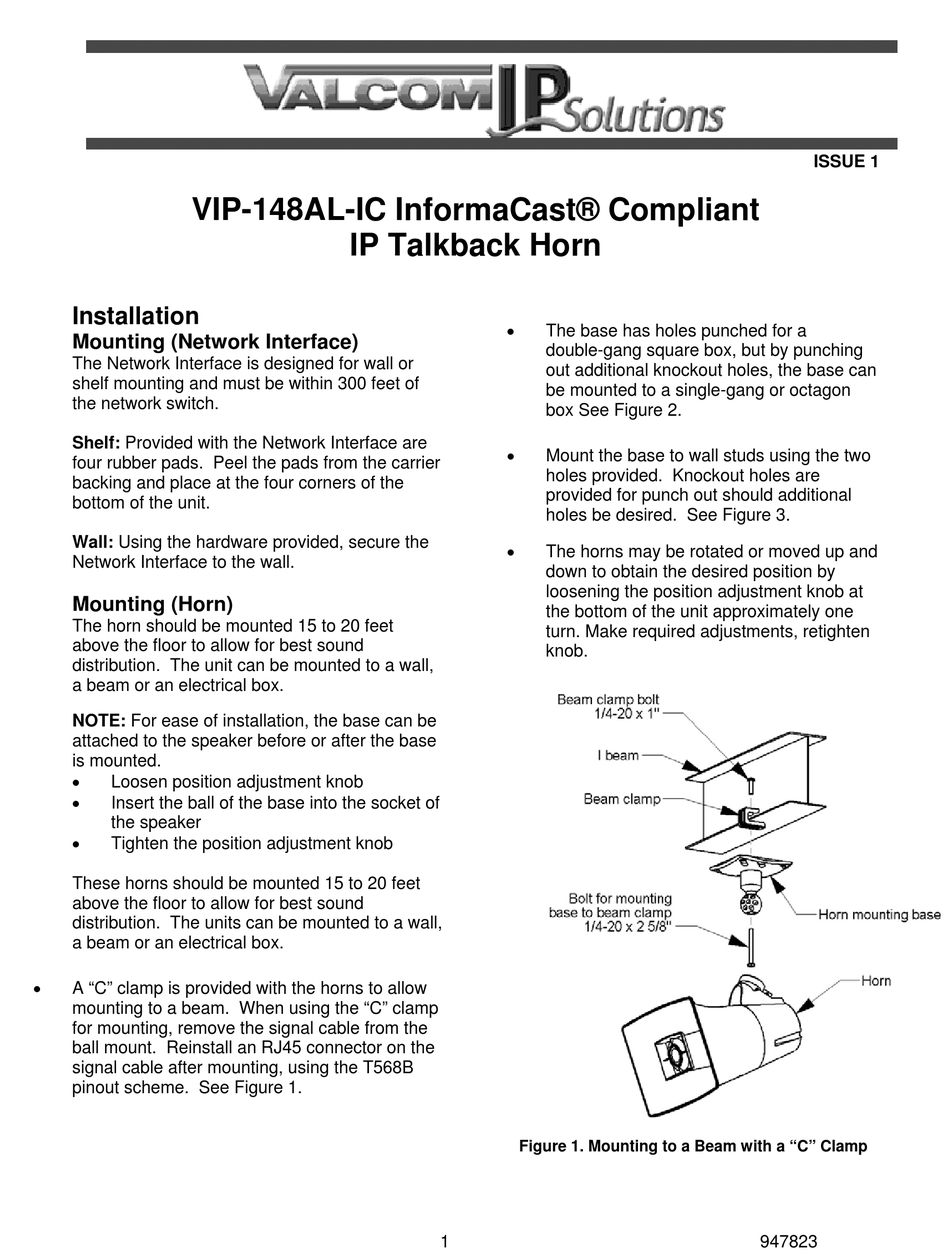

Valcom VIP-148AL-IC Manual

VIP-148AL-IC InformaCast® Compliant
Installation
Mounting (Network Interface)
The Network Interface is designed for wall or
shelf mounting and must be within 300 feet of
the network switch.
Shelf: Provided with the Network Interface are
four rubber pads. Peel the pads from the carrier
backing and place at the four corners of the
bottom of the unit.
Wall: Using the hardware provided, secure the
Network Interface to the wall.
Mounting (Horn)
The horn should be mounted 15 to 20 feet
above the floor to allow for best sound
distribution. The unit can be mounted to a wall,
a beam or an electrical box.
NOTE: For ease of installation, the base can be
attached to the speaker before or after the base
is mounted.

Loosen position adjustment knob

Insert the ball of the base into the socket of
the speaker

Tighten the position adjustment knob
These horns should be mounted 15 to 20 feet
above the floor to allow for best sound
distribution. The units can be mounted to a wall,
a beam or an electrical box.

A "C" clamp is provided with the horns to allow
mounting to a beam. When using the "C" clamp
for mounting, remove the signal cable from the
ball mount. Reinstall an RJ45 connector on the
signal cable after mounting, using the T568B
pinout scheme. See Figure 1.
IP Talkback Horn



Figure 1. Mounting to a Beam with a "C" Clamp
1
The base has holes punched for a
double-gang square box, but by punching
out additional knockout holes, the base can
be mounted to a single-gang or octagon
box See Figure 2.
Mount the base to wall studs using the two
holes provided. Knockout holes are
provided for punch out should additional
holes be desired. See Figure 3.
The horns may be rotated or moved up and
down to obtain the desired position by
loosening the position adjustment knob at
the bottom of the unit approximately one
turn. Make required adjustments, retighten
knob.
