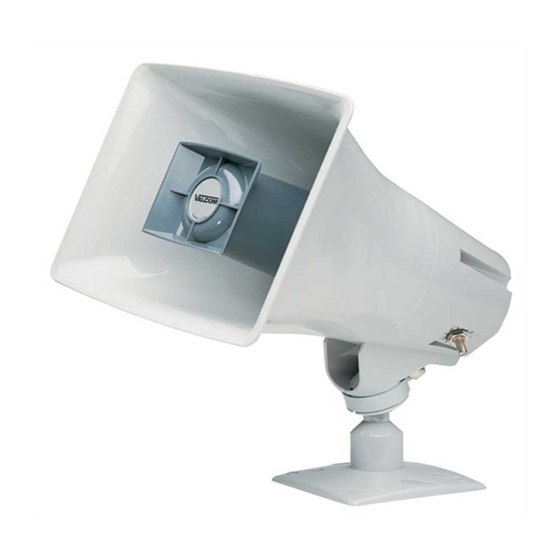

VIP-148AL IP Talkback Horn

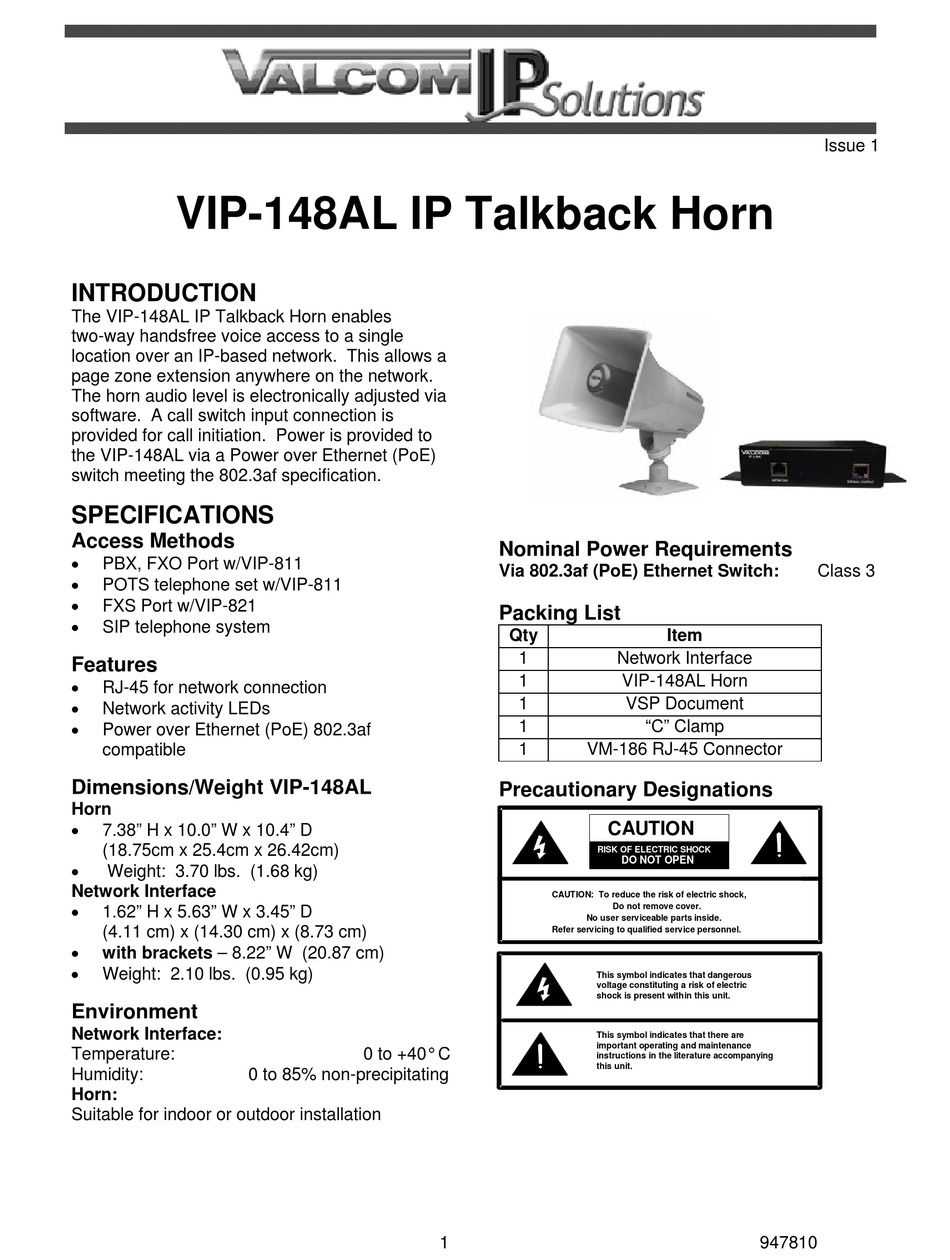

INTRODUCTION
The VIP-148AL IP Talkback Horn enables
two-way handsfree voice access to a single
location over an IP-based network. This allows a
page zone extension anywhere on the network.
The horn audio level is electronically adjusted via
software. A call switch input connection is
provided for call initiation. Power is provided to
the VIP-148AL via a Power over Ethernet (PoE)
switch meeting the 802.3af specification.
SPECIFICATIONS
Access Methods
PBX, FXO Port w/VIP-811
POTS telephone set w/VIP-811
FXS Port w/VIP-821
SIP telephone system
Features
RJ-45 for network connection
Network activity LEDs
Power over Ethernet (PoE) 802.3af
compatible
Dimensions/Weight VIP-148AL
Horn
7.38" H x 10.0" W x 10.4" D
(18.75cm x 25.4cm x 26.42cm)
Weight: 3.70 lbs. (1.68 kg)
Network Interface
1.62" H x 5.63" W x 3.45" D
(4.11 cm) x (14.30 cm) x (8.73 cm)
with brackets – 8.22" W (20.87 cm)
Weight: 2.10 lbs. (0.95 kg)
Environment
Network Interface:
Temperature:
Humidity:
0 to 85% non-precipitating
Horn:
Suitable for indoor or outdoor installation
Nominal Power Requirements
Via 802.3af (PoE) Ethernet Switch:
Packing List
Qty
1
1
1
1
1
Precautionary Designations
0 to +40° C
1
Item
Network Interface
VIP-148AL Horn
VSP Document
"C" Clamp
VM-186 RJ-45 Connector
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: To reduce the risk of electric shock,
Do not remove cover.
No user serviceable parts inside.
Refer servicing to qualified service personnel.
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
Issue 1
Class 3
947810
