- Page 2 Instagram: @foxpro_inc Twitter: @FOXPROInc TikTok: @foxpro_inc Website: www.gofoxpro.com This manual, the animal sounds stored in your caller, and animal sounds purchased from FOXPRO ® Inc. for installation in your caller is protected by copyright. Publication Date: September 14, 2023, REV2 Copyright ©℗...
-
Page 3: Table Of Contents
Contents Getting Started .................... 4 Prowler Overview ................4 TX433XL Transmitter Overview ............6 Playing Sounds ..................8 Favorites ....................9 User Buttons ..................10 TX433XL Menu System ................10 Primary Display Area ................. 10 Main Menu ..................11 Sound Settings Menu ................ 11 Display/Power Menu ................. -
Page 4: Getting Started

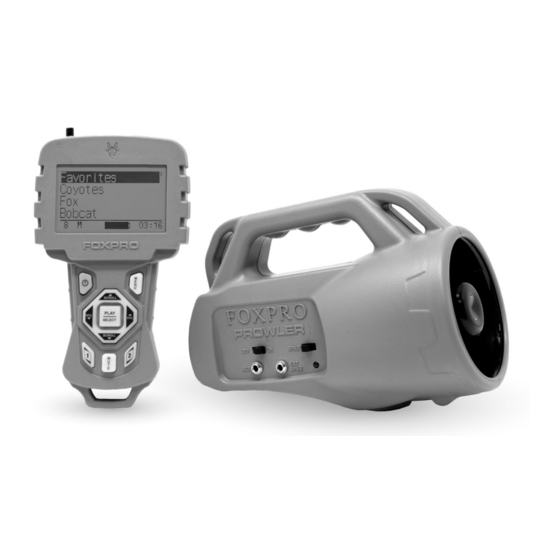

1. The handle is located at the top of the Prowler. 2. The horn speaker is located on the right side. 3. The horn speaker on/off switch is located to the right of the power switch. 4. The tripod mount is located on the bottom side of the Prowler. - Page 5 Place the batteries into each battery cavity while observing correct polarity. Double check the power connector is connected, return the battery holder into the Prowler, and secure the battery compartment door. To verify power, slide the power switch to “on”...
-
Page 6: Tx433Xl Transmitter Overview
1-2 TX433XL Transmitter Overview Figure 2 TX433XL Transmitter The image above depicts the TX433XL transmitter. The image contains numbered lines pointing to various areas of the transmitter. The following text describes each of those areas. The transmitter has two main sections. The handle portion contains buttons that allow you to interact with the transmitter. - Page 7 3. On the front side of the upper portion of the transmitter is the screen. The screen can be viewed as two areas: the sound list/categories/selectable elements consume the largest portion, and the bottom line of the screen is the status line. 4.
-
Page 8: Playing Sounds
“Favorites” and the first few categories. 1-3 Playing Sounds Turn on the Prowler as described previously. Make sure that the internal horn speaker is turned on. Turn on the TX433XL remote control. Notice the black highlight bar horizontally situated across the screen;... -
Page 9: Favorites
To turn off the Prowler, slide the power switch to the left or “off” position. To turn off the TX433XL, push and hold the power button for 1-2 seconds and it will turn off. 1-4 Favorites The TX433XL allows you to create a list of your 25 most frequently used sounds. -
Page 10: User Buttons
• Favorite 1,2 or 3 (see section 1-4 for set up) • AUX triggers auxiliary function if FOXPRO decoy is attached. • Recall will recall and play the last sound played through the Prowler at the volume it was last playing at. -
Page 11: Main Menu
This menu allows you to specify which mode of sound playback the Prowler operates on. The available options are repeat, single play, and jukebox. The default setting is repeat. In Repeat mode, the Prowler will play the selected sound repeatedly until you interrupt it. In Single play mode the sound will play a single time, then stop. -
Page 12: Display/Power Menu
The elapsed timer (located on the bottom right of the display) allows you to see how long you have been on a stand. The timer starts as soon as you turn on the Prowler transmitter. You can reset the timer by... -
Page 13: Remote Settings
00:00 if it is allowed to continue beyond 99:59. Alarm The Prowler remote features a visual alarm that can be set to go off after a span of time. The available times are represented in minutes: 1 – 15 (individual steps) and 20-60 (steps of 5). When the alarm is set and the configured time span passes, the stand timer will display a confirmation message “Stand Timer Alarm Triggered”. -
Page 14: Auxiliary Jack
3. Auxiliary Jack The auxiliary jack (located on the lower left side of the main panel) is primarily used to connect a FOXPRO decoy such as the XDECOY. When a FOXPRO decoy is connected to the jack with the appropriate 3.5mm cable, you can use the AUX button on the TX433XL to turn the motion off and on. -
Page 15: External Speakers
Prowler. 5. Programming Sounds The Prowler has a USB port and can be connected to a home computer for reprogramming. FOXPRO offers free software for both PC and Mac that assists you in this process. The FOXPRO website contains an extensive library of free sounds and sounds that can be purchased and installed in the Prowler. -
Page 16: Product Care And Maintenance
• Keep the transmitter a minimum of six inches away from your body, gun barrel, and metal shooting sticks as these things can detune the transmitter. • Hold the transmitter vertically with the antenna pointing skyward (reference image below): Figure 3 Example of proper transmitter orientation •... -
Page 17: Troubleshooting
8. Troubleshooting If the Prowler doesn’t turn on, make sure you have fresh batteries installed. If the Prowler does not produce any sound, make sure that the speaker switch is in the on position (to the right). If the TX433XL does not turn on, try replacing the battery. - Page 18 harmful. Additionally, operation in close proximity to your body can detune the antenna causing a decrease in operating performance. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
-
Page 19: Warranty Information
10. Warranty Information Your FOXPRO® game call is warranted to be free from defects in materials and workmanship for a period of 3 years from the date of purchase if the item was purchased from a FOXPRO Authorized Retailer. - Page 20 FOXPRO. Include a note describing the defect or problem. This limited warranty is void if the unit is physically damaged, used in a manner contrary to intended use, or otherwise abused, either intentionally or unintentionally. Also specifically excluded are batteries and damage caused by attempts to charge batteries not intended to be recharged, and water damage.
