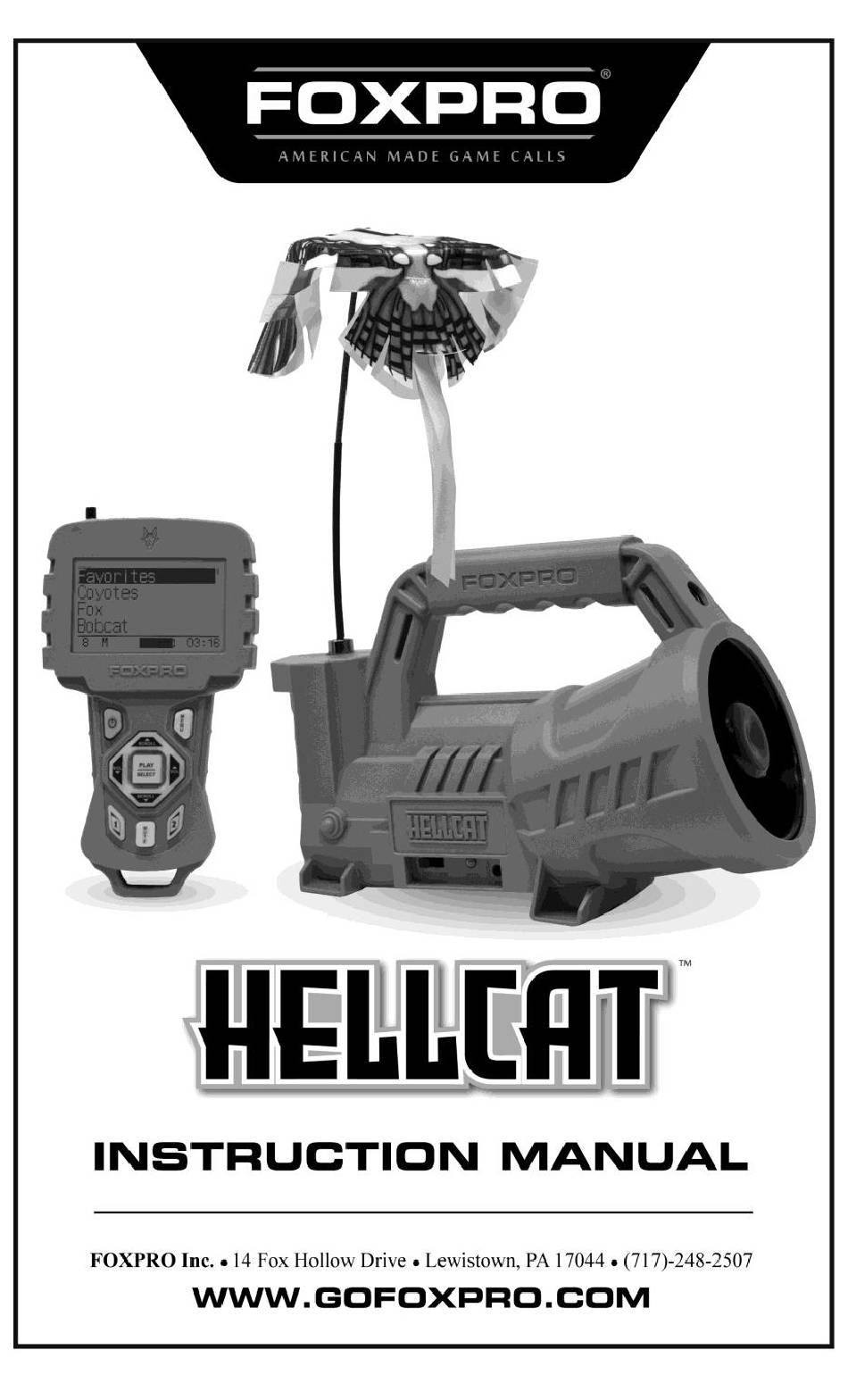

Summary of Contents for Foxpro HELLCAT TX433XL
- Page 2 YouTube: @FOXPROINC Instagram: @foxpro_inc Twitter: @FOXPROInc TikTok: @foxpro_inc Website: www.gofoxpro.com ® This manual, the animal sounds stored in your caller, and animal sounds purchased from FOXPRO Inc. are protected by copyright. ® Copyright ©℗ 2023 by FOXPRO Inc. Publication Date: June 1, 2023 Rev 1.0...
-
Page 3: Table Of Contents
4-17 Remote Settings: About Info ............. 11 4-18 Remote Settings: Cable Detect ............11 5. Programming the Hellcat ................11 5-1 Obtaining New FOXPRO Sounds .............. 12 5-2 Programming the Hellcat ................ 12 5-3 Updating the Transmitter Playlist ............13... -
Page 4: Getting Started
10.Warranty Statement ..................16 1. Getting Started Congratulations on your purchase of the FOXPRO Hellcat digital game call! To avoid personal injury and product damage, be sure to read all operating instructions before using the FOXPRO Hellcat. 1-1 Hellcat Overview... -
Page 5: Tx433Xl Transmitter Overview
1-2 TX433XL Transmitter Overview The following graphic highlights the functions and details of the Hellcat TX433XL transmitter: Power on/off Play/select Volume up/down Decoy / User 1 Lanyard loop Mute User 2 Scroll up/down Menu/back Elapsed timer Sounds/categories Volume level Mute status indicator... -
Page 6: Tx433Xl Requirements
Place the battery holder back into the battery compartment and replace the battery compartment door (see image on next page). To verify that you have power: Slide the power switch to the “on” position (to the right). The pilot LED should illuminate green, indicating that the Hellcat is on. If the LED does not illuminate, verify that your batteries are fresh and double-check the connections. -
Page 7: Favorites
To silence the sound: Push the “Mute” button a single time. When muted, the mute status indicator on the TX433XL display shows an “M” and the current sound is silenced. Un-muting is accomplished by pushing the “Mute” button a second time (the “M” will no longer be displayed, and the sound will resume playing). -
Page 8: Built In Decoy Operation
Keep in mind that any damage to the FOXPRO caller as a result of improper use of the AUX jack is not covered by the warranty, nor will FOXPRO be liable for damage to any connected devices. -
Page 9: Sound Settings: Volume Step
4-3 Sound Settings: Volume Step The TX433XL has a range of volume steps from 0 – 20. Increasing the volume in the field by increments of 1 may be too slow for some, therefore, this stepping value is configurable. You can choose from 1, 2, and 3. To change the volume step value, highlight the “Volume Step”... -
Page 10: Display/Power: Lcd Mode
4-9 Display/Power: LCD Mode This setting allows you to set the desired display mode. Available options include normal and inverse. In normal mode, the text will be black, and the background will be light. In inverse mode, the background will be black with light text. -
Page 11: Remote Settings: Download List
Fav Mut OR turned on (see section 3-5), it will not begin to play until you hit the Mute button to Unmute the Hellcat. Decoy/Aux allows for remote operation of the Hellcat’s built-in decoy, as well as anything connected to the Aux jack. If you have an external decoy connected to the Aux Jack, please note that both decoys will turn on and off at the same time. -
Page 12: Obtaining New Foxpro Sounds
5-1 Obtaining New FOXPRO Sounds Access the FOXPRO website to purchase new sounds or download new free sounds. The website is located at: http://www.gofoxpro.com. To purchase and download new sounds, click on the desired sound pack choice and work through the ordering steps. At the end of the process, you will be able to save your sound pack to the computer. -
Page 13: Updating The Transmitter Playlist
File menu on the utility screen and then click on the “Download Free Sounds” menu item. This displays a list of all free sounds available from FOXPRO. You can select one or all of the free sounds to highlight them. - Page 14 Disconnect the Hellcat from your computer if it is still connected. Disconnect all accessories from the Hellcat (i.e. external decoy) and make sure that it is turned off. Turn on the TX433XL transmitter. Connect one end of the 3.5mm cable to the sound upload jack on the top of the TX433XL. You will see a message displayed on the screen stating, “Turn caller off.
- Page 15 7. Product Care & Maintenance Avoid exposure to all precipitation and moisture. Moisture (perhaps from rain, snow, condensation, or other) can potentially enter the unit or the battery compartment and cause serious problems. Proper care should be taken to mitigate the introduction of moisture into the machine and make sure that no moisture is present during storage.
- Page 16 Note: Units exported beyond the boundaries of North America are not FCC certified. FOXPRO Inc. makes every attempt at complying with regional regulations governing radio spectrum. However, it is the user’s responsibility to ensure compliance with local laws and ordinances that govern the use of radio controlled devices in the area of operation.
