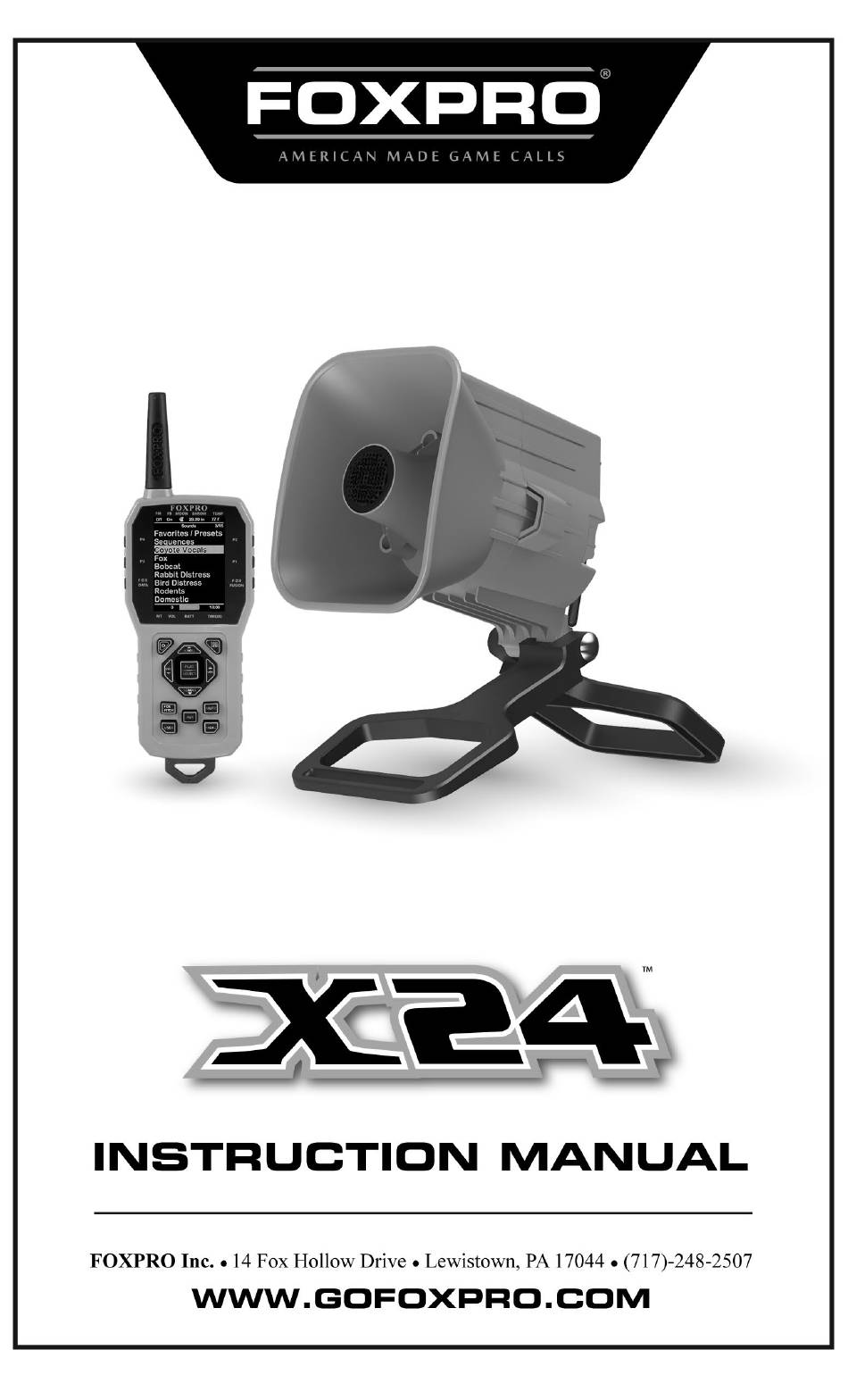

Foxpro X24 Instruction Manual
  1. Manuals
  2. Brands
  3. Foxpro Manuals
  4. Speakers
  5. X24
  6. Instruction manual

Foxpro X24 Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X24 and is the answer not in the manual?

Questions and answers

Related Manuals for Foxpro X24

Summary of Contents for Foxpro X24

  • Page 2 ’s goal is to provide our customers with the highest quality products in the industry. We take great pride in manufacturing our products in the USA. Please do not hesitate to contact us for assistance, comments, or questions. FOXPRO® Inc. 14 Fox Hollow Drive -Lewistown, PA 17044 Hours of Operation Monday – Friday 8AM –...

  • Page 3: Table Of Contents

    5-3 Navigating the X24 Remote ..............18 5-4 Understanding the X24 Remote Display ..........19 5-5 Access the X24 Remote Configuration Menu ......... 21 5-6 Playing Sounds with the X24 Remote ............. 21 5-7 Volume & Mute Control ................22...
  • Page 4 5-8 Presets / Favorites................... 22 FOX FEATURES ................... 23 6-1 FOXMOTION .................... 23 6-2 FOXBANG ....................24 6-3 AUTO VOLUME ..................25 6-4 User Button ..................... 26 6-5 FOXDATA ....................26 6-6 FOXGRIP ....................28 Sound Settings ..................29 7-1 Volume Step .................... 29 7-2 Pri.
  • Page 5 12. Programming the X24 ................37 13. Creating FOXCAST Sequence Files ............38 13-1 Creating FOXCAST Sequences Manually ..........38 13-3 Placing Sequences in the X24 ..............40 13-4 Creating FOXCAST Sequences Online ........... 40 13-5 Synchronizing the X24 Remote ............. 40 14.

  • Page 6: Getting Started

    1. Getting Started Congratulations on your purchase of the FOXPRO X24 digital game call! To get the full advantage of the X24 and its array of capabilities, please read and understand the operating instructions in full. 1-1 X24: First Glance The following graphic corresponds to the list below that highlights the main features of the X24 caller.

  • Page 7: X24: Requirements

    Installing the Battery Pack in the X24 Access the battery compartment by removing the door on the back of the X24. Once the door is removed, locate the power wire that is inside the battery compartment. It will have a white, plastic connector on the end.

  • Page 8: X24 Remote: First Glance

    • Recharge your batteries periodically—even when not in use—to prevent deep discharge. 2. X24 Remote: First Glance The following chart corresponds to a graphic on the next page that depicts the X24 remote. Certain aspects of the X24 remote will be...
  • Page 9 Figure 2 Image of the X24 Remote Control The second item from the left on the top status line is the ANG/FOXGRIP status indicator. FOXB 2. Next item to the right is the moon phase indicator.
  • Page 10 5. The largest part of the screen is the primary display area. 6. The first button on the top right side of the remote is P2. 7. The P1 button is located under P2. 8. The FOXFUSION button is the last button on the right, just under the P1 button.

  • Page 11: X24 Remote: Requirements

    3-1 Powering on the X24 The X24 is powered-on by moving the power switch to the on position. When powered-on, the green LED pilot lamp blinks rapidly several times and then illuminates solidly, signaling that it is ready to be operated from the remote control.

  • Page 12: Playing Sounds

    3-3 Playing Sounds Make sure that you have properly installed the battery pack the X24 and batteries in the X24 remote as described in Chapter 1. The X24 remote control is not intended to operate the caller at distances shorter than 1 meter (3 feet).

  • Page 13: Using Presets/Favorites

    “Recall” button. 3-4 Using Presets/Favorites The X24 remote can store up to 50 unique presets or favorites. A preset is a shortcut to a particular sound which has a defined volume level. The X24 remote has 4 quick access preset buttons located on the top left and right (see image on page 8).

  • Page 14: X24 Detailed Overview

    To initiate playback of presets 1-4, make sure that both the X24 and X24 remote are turned on, and then push the corresponding preset button (P1 – P4) on the top sides of the remote. The X24 will then instantly switch to that sound and volume level.

  • Page 15: Picatinny Rail Mount/Ir Port

    4-2 Picatinny Rail Mount/IR Port The X24 includes a picatinny rail mount located on top of the caller (rail not included). To install the rail, remove the 2 set screws that are included with the caller. Mount the rail so the holes line up and re- install the screws.

  • Page 16: Auxiliary Device Jack

    Connect the X24 to a Computer Make sure that the X24 is turned off. Connect one end of your USB cable to the USB port in the X24. Connect the other end of the USB cable to a USB port on your computer. On most major operating systems, you will hear an alert as well as see visual notification on the screen that a new device has been attached.
  • Page 17 two positions are referred to as “on” and “off”. The “on” position is selected by moving the switch to the right. The “off” position is selected by moving the switch to the left. Use the tip of a pen or pencil to change the position of the switches.

  • Page 18: X24 Remote Control Detailed Overview

    This chapter provides a more detailed oriented overview of the X24 remote. The model number for the X24 Remote is “TX1000”. In this manual, we tend to refer to the remote as “X24 Remote”, but you will encounter “TX1000” later as it referenced in specific menu options. The X24 remote control is not intended to operate the caller at distances shorter than 1 meter (3 feet).

  • Page 19: Understanding The X24 Remote Display

    X24 Remote configuration options as well as navigate back one level in the menu system. 5-4 Understanding the X24 Remote Display The X24 Remote display can be viewed as three main segments: top status line, primary display area, and bottom status line. The top and bottom status lines are static meaning, they will always be present.
  • Page 20 The image above shows the primary display area for the X24 remote. Above the menu items you will see “Categories” which is the title of this screen. When you enter other menu sections, the title will change accordingly. The two main items on the screen “Favorites/Presets” and “FoxCast”...

  • Page 21: Access The X24 Remote Configuration Menu

    The method of playing a sound is identical for both modes; the way the sounds are displayed on the screen is the only difference. By default, the X24 remote is set up to display the sounds by categories.

  • Page 22: Volume & Mute Control

    40 and the volume is increased in steps. These steps are configured through the main menu under Sound Settings. The available stepping values are 1, 2, 3, and 5. By default, the X24 remote is set for a volume stepping value of 2. Volume can be controlled automatically by a feature called Auto Volume.

  • Page 23: Fox Features

    FOXMOTION operate. The lower the setting, the more gradual the transition from one speaker to the other will be. To activate FOXMOTION, turn on the X24 and X24 remote. Begin sound playback like normal. Access the X24 remote main menu...

  • Page 24: Foxbang

    When activated, FOXBANG reacts to the report of a firearm by automatically switching to an assigned function established within the X24 remote. There are 8 different settings for FOXBANG. The available functions you can link to FOXBANG activation include: FOXDATA, mute (toggles mute on/off), auxiliary (toggles auxiliary device on/off), preset 1, preset 2, preset 3, preset 4, and preset 5.

  • Page 25: Auto Volume

    The FOXBANG sensor is located inside of the X24 remote. For it to detect the gunshot, the remote needs to be relatively close to the firearm. It is assumed that most hunters will have the remote on a lanyard around their neck. An unintended and unavoidable...

  • Page 26: User Button

    VOLUME is turned on, it will be automatically turned off. 6-4 User Button The User button is located on the bottom left side of your X24 remote keypad. This button can be assigned a function of your choice for quick one button access.
  • Page 27 The recorded data is stored in a CSV file within the remote control. You can access this file by connecting the X24 remote to a PC (see chapter 10). CSV files can be opened with popular software titles such as Microsoft Excel.

  • Page 28: Foxgrip

    Snow. 6-6 FOXGRIP This allows you to pair a FOXPRO Fox Grip or Fox Grip 2 with the X24 Remote control. Detailed instructions for using each Fox Grip model can be found on our website. The following provides general instructions for basic setup.

  • Page 29: Sound Settings

    The modes are Stereo, Reverse Stereo, and Mono. By default, the device will be setup for stereo speaker mode. As the X24 has a single speaker setup a stereo audio file will be split so that the...

  • Page 30: Main Speaker

    7-7 Preset Mute Override During normal operation, if the X24 is muted and you play a preset, the preset is queued for playback, but it cannot be heard until the caller is un-muted. Preset mute override will take care of this and eliminate the need for un-muting the call upon preset activation.

  • Page 31: Display / Power

    X24 being un-muted if it is muted when the activation occurs. 8. Display / Power The Display/Power menu allows for control of on-screen display options such as backlight, screen timeout, and operational theme. 8-1 Brightness This controls the brightness of the display.

  • Page 32: Auto Off

    X24 remote is turned on. 9-2 Alarm The X24 remote features a visual alarm that can be set to go off after a span of time. The available times are represented in minutes: 1 – 60. When the alarm is set and the configured time span passes, the stand timer (or clock if set to display the clock) will begin to flash alerting you.

  • Page 33: Time

    9-3 Time The X24 remote has a real time clock. This clock must be set when you first install or change batteries. The clock can be displayed in either the standard 12-hour format or 24-hour format (military time). The bottom status line of the X24 display can show either the current time or the stand timer.

  • Page 34: Aux

    All FOXPRO Jack Predator Decoys require that the jack be setup for momentary. 10-3 View The X24 remote control can display your sounds either by general listing or by category listing. Sound categories are the best route to go if you have many sounds.

  • Page 35: About Info

    Connecting the X24 Remote to a Computer: Connect the USB cable from the jack on the X24 remote to a USB port in the computer. Power on the X24 remote. The screen should activate and show “USB Active” instead of the sound screen.

  • Page 36: Editing The Presets File

    From there, you should receive some sort of visual or audible notification that something has been plugged in. When the X24 remote is connected to a computer, you can browse through the device just as you would any other USB storage device.

  • Page 37: Viewing The Foxdata File

    ‘foxdata.csv’ file and have that file turned into easy-to-read charts, graphs, and tables. Let’s say you have 3 months of hunts recorded in your X24 remote through FOXDATA. You can login to your account, upload the file, and then the system will take care of the rest. You can then erase the current FOXDATA file from the X24 remote to start recording again.

  • Page 38: Creating Foxcast Sequence Files

    13. Creating FOXCAST Sequence Files This section will provide you with detailed information on creating and installing FOXCAST sequence files in your X24 digital game caller. 13-1 Creating FOXCAST Sequences Manually This process requires some basic computer operations experience. If you are not very experienced with computers, it is recommended that you seek help prior to taking any of the following steps.
  • Page 39 “J”, once the sequence has played through a single time, it will automatically begin playing the next FOXAST sequence. “Q” represents quit. Once the sequence has played entirely, the X24 will go silent. “R” represents repeat. Once the sequence has been played entirely, the X24 will play that sequence again until it is interrupted by the operator.

  • Page 40: Placing Sequences In The X24

    The X24 expects to find FOXCAST sequence files inside of the “Sounds” folder in the X24. If you are loading the sequence files manually, the first step is to connect the X24 to your computer. Browse to X24 and open it up. Locate the “Sounds” folder. Copy your sequence files from wherever they are stored on your hard drive, into this folder (drag and drop).

  • Page 41: Product Care & Maintenance

    You should now see the new firmware version number. 15. Product Care & Maintenance To help get years of trouble-free service with your FOXPRO game call, it is strongly recommended that you read and understand the following points. Many of these are considered proactive or preventative.

  • Page 42: Troubleshooting

    Problem: X24 does not produce any sound Solution: Check that the speaker is not turned off in the X24 remote control. Try connecting the X24 to a computer and inspect the sound files for missing files or signs of corruption.

  • Page 43: Maximizing Remote Range

    Problem: Having trouble with programming new sounds Solution: Check out FOXPRO’s website for detailed programming information for your X24. Solutions for many common issues can be found there. Problem: X24 remote will not turn on after firmware update Solution: Contact FOXPRO technical support.

  • Page 44: Fcc & Ic Information

    This can greatly maximize your overall remote-control range. • If you are using the X24 remotely from a long distance, be sure to allow enough time for device reaction before sending multiple signals. For example, if you request a sound change,...
  • Page 45 RF exposure compliance. Note: Units exported beyond the boundaries of North America are not FCC certified. FOXPRO Inc. makes every attempt at complying with regional regulations governing radio spectrum. However, it is the user’s...

  • Page 46: Warranty Statement

    19. Warranty Statement Your FOXPRO® game call is warranted to be free from defects in materials and workmanship that diminish its usefulness for a period of five years from the date of purchase if the item was purchased from a FOXPRO Authorized Retailer.
  • Page 47 Online Warranty Registration You can register your X24 digital game call online at the following address): http://www.gofoxpro.com/warranty Make sure that you retain a hard copy of your proof of purchase (i.e., store receipt) for any future warranty claims.
