Summary of Contents for Foxpro TURKEY PRO

  • Page 2 ’s goal is to provide our customers with the highest quality products in the industry. We take great pride in manufacturing our products in the USA. Please do not hesitate to contact us for assistance, comments, or questions. FOXPRO® Inc. 14 Fox Hollow Drive -Lewistown, PA 17044 Hours of Operation Monday – Friday 8AM –...

  • Page 3: Table Of Contents

    Table of Contents Getting Started .................... 5 TurkeyPro Overview ................5 TX433 Transmitter Overview .............. 6 Quick Start Guide ..................7 2-1 TurkeyPro Requirements ................7 2-2 TX433 Requirements ................. 8 2-3 Playing Sounds ..................8 2-4 Favorites ....................10 Auxiliary Jack Function ................
  • Page 4 6-14 Remote Settings: Download List ............18 6-15 Remote Settings: Channel ..............18 6-16 Remote Settings: AUX Cntrl ..............19 6-17 Remote Settings: View ................19 6-18 Remote Settings: Snd Nums ..............20 6-19 Remote Settings: About Info ..............20 6-19 Remote Settings: Cable Detect .............

  • Page 5: Getting Started

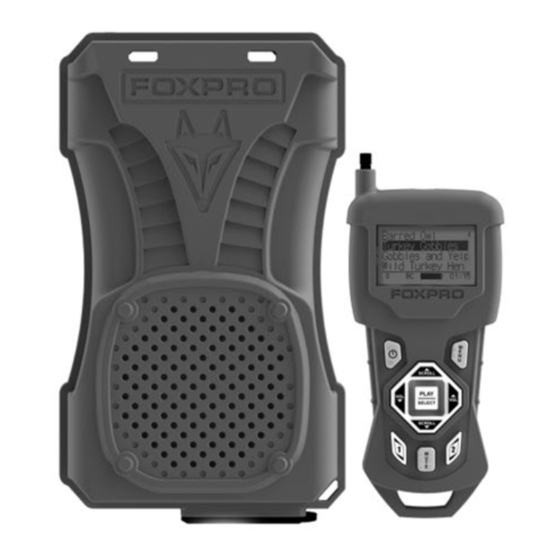

    1. Getting Started Congratulations on your purchase of the FOXPRO TurkeyPro digital game call! To avoid personal injury and product damage, be sure to read all operating instructions before using the FOXPRO TurkeyPro. 1-1 TurkeyPro Overview The following image features the TurkeyPro game call. Certain aspects of the TurkeyPro are marked with a number that corresponds to the list below defining that element.

  • Page 6: Tx433 Transmitter Overview

    1-2 TX433 Transmitter Overview The following is an image of the TX433 transmitter. Certain aspects of the TX433 are marked with a number that corresponds to a list, located after the image, defining each element. Figure 2 TX433 Remote Control 1.

  • Page 7: Quick Start Guide

    7. The Mute button is located to the left of the User 2 button. 8. The lanyard loop is located on the bottom of the TX433. 9. The User 1 button is located to the left of the Mute button. 10.

  • Page 8: Tx433 Requirements

    2. Locate and remove the plastic battery holder from the battery compartment. The battery holder features a white connector that plugs into two pins inside the battery compartment. 3. Place the ‘AA’ batteries into each battery cavity of the battery holder while observing correct polarity as indicated.
  • Page 9 and the TX433 and how to start playing sounds. THE TX433 IS NOT INTENDED TO OPERATE THE CALLER AT DISTANCES SHORTER THAN 1 METER (3 FEET). IF THE TRANSMITTER IS LOCATED TOO CLOSE TO THE CALLER, PROPER OPERATION CANNOT BE ENSURED. 1.

  • Page 10: Favorites

    button to decrease the volume level. The transmitter has 20 volume steps. 8. To silence the sound: Push the “Mute” button a single time. When muted, the mute status indicator on the TX433 display shows an “M” and the current sound is silenced. Un-muting is accomplished by pushing the “Mute”...

  • Page 11: Auxiliary Jack Function

    TurkeyPro playing the selected sound at the preset volume level. 3. Auxiliary Jack Function The AUX jack is provided primarily for the control of FOXPRO decoys and may be suitable for controlling other similar devices. 4. Using an External Speaker The TurkeyPro is equipped with an external speaker jack which allows you to connect an additional speaker.

  • Page 12: Batteries And Charging

    Consequently, the running time of these batteries can be very short. Your FOXPRO ® unit incorporates circuitry to terminate charge current if high battery temperatures are detected. Battery temperatures increase at the end of the charge cycle.
  • Page 13 6 to 15 hours of run time, depending on the volume level. Remember that very loud volumes are rarely needed as animals hear much better than we do. All FOXPRO rechargeable battery kits are shipped with individual instruction sets that pertain to their unique operations.

  • Page 14: Tx433 Transmitter Detailed Information

    Make sure that the rechargeable battery pack is installed in the • TurkeyPro properly. Connect the approved FOXPRO charger to the charger jack on • the TurkeyPro and attach the transformer to the appropriate outlet. Remember that NiMH batteries self-discharge about 1% per day.

  • Page 15: Main Menu

    also works as a back button to navigate through the menu system. For example, if you push the “Menu” button a single time from the primary display area, you will view the main menu. If you push the “Menu” button from the main menu, it returns you to the primary display area. As you work through the menu’s options, you will use the “Menu”...

  • Page 16: Sound Settings: Fav Mute Or

    6-5 Sound Settings: Fav Mute OR During normal operation, if the TurkeyPro is muted and you request to play a favorite, the sound is queued for playback, but it cannot be heard until the caller is un-muted. Favorite mute override will take care of this and eliminate the need for un-muting the sound upon preset activation.

  • Page 17: Display/Power: Lcd Mode

    6-9 Display/Power: LCD Mode This item allows you to set the desired display mode. Available options include normal and inverse. In normal mode, the text will appear black, and the background will be light. In inverse mode, the background will be black with light text.

  • Page 18: Timer/User: User 1 & User 2

    6-13 Timer/User: USER 1 & USER 2 User buttons 1 and 2 can be assigned a function of your choice for quick one-button access. You can choose from: favorite 1, favorite 2, favorite 3, AUX, channel, recall, timer reset, and backlight. 6-14 Remote Settings: Download List Any time you reprogram the TurkeyPro to add new sounds or rearrange existing sounds, you must download a new copy of the play list to the...

  • Page 19: Remote Settings: Aux Cntrl

    6-16 Remote Settings: AUX Cntrl The auxiliary jack operation specifications can be changed from either momentary or latched. All FOXPRO decoys require that the jack be setup for momentary. 6-17 Remote Settings: View The TX433 can display your sounds either by general listing or by category listing.

  • Page 20: Remote Settings: Snd Nums

    6-18 Remote Settings: Snd Nums The TX433 displays your sound list in a logical format based upon the index value of each sound file. The sounds are numbered from 000 – 299. You can choose to either have the index values visible in your sound list or you can hide them.
  • Page 21 Figure 4 TurkeyPro Mounted on a Tripod Figure 5 Position 1 for Using the Strap Figure 6 Position 2 for Using the Strap...
  • Page 22 TurkeyPro unit. After you have the strap fed through the strap slots, secure the TurkeyPro to a tree. The series of images (Figure 5-8) provide an overview of securing the Turkey Pro to a tree. Figure 8 Turkey Pro Strapped to Tree Finally, while not ideal, you can sit the TurkeyPro on the ground.

  • Page 23: Programming The Turkeypro

    The TurkeyPro can store up to 300 sounds in total. From the factory, it’s loaded with 45 premium sounds. FOXPRO offers free software for both PC and Mac that assists you in this process. The FOXPRO website contains an extensive library of free sounds and sounds that can be purchased and installed in the TurkeyPro.

  • Page 24: Product Care & Maintenance

    • Avoid using the device remotely when you are near power lines, cellular phone towers, and radar (such as near airports or military installations). • Try to elevate the caller off the ground by approximately three feet. This can greatly maximize your overall remote-control range.

  • Page 25: Troubleshooting

    simply remove all batteries from all devices before you put them away. Keep in mind: damage caused by battery leakage is not covered under warranty. 11. Troubleshooting The most common problems are battery related. Before doing anything else, try installing fresh batteries. Problem: TurkeyPro will not turn on.

  • Page 26: Fcc & Ic Information

    rechargeable NiMH batteries to get the best performance in cold weather. Problem: TurkeyPro not being recognized by computer. Solution: Make sure that the TurkeyPro is turned OFF while connected to the computer. Make sure that the memory card is properly situated in the socket.
  • Page 27 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 28: Warranty Statement

    13. Warranty Statement Your FOXPRO® game call is warranted to be free from defects in materials and workmanship for a period of 3 years from the date of purchase if the item was purchased from a FOXPRO Authorized Retailer.
