Instructions-Parts List
55 GALLON STANDARD DRUM
Hot Melt Wiper Kits
Designed to fit straight sided drums with a 22.5" (571 mm) ID
Model 243279 (built prior to May 2006)
Model 253292 (built May 2006 and after)
Dual Tee Wipers
Maximum Temperature 250_F (121_C)
Model 245668 (built prior to May 2006)
Model 253290 (built May 2006 and after)
Tee Wiper / Steam Hose
Maximum Temperature 375_F (190_C)
Model C31007 (built prior to May 2006)
Model 253291 (built May 2006 and after)
Silicone Hose / Steam Hose
Maximum Temperature 400_F (204_C)
Model 234995 (built prior to May 2006)
Model 253289 (built May 2006 and after)
Spring / Hose Wipers
Maximum Temperature 400_F (204_C)
Table of Contents
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
. . . . . . . . . . . . . . . . . . . . . .
2
2
2
3
7
15
16
16
309196F

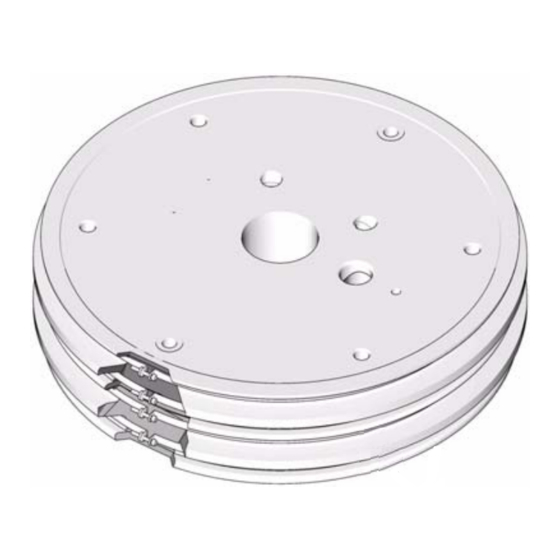

TI0410
Advertisement
Related Manuals for Graco 243279
Summary of Contents for Graco 243279
-
Page 1: Table Of Contents
55 GALLON STANDARD DRUM Hot Melt Wiper Kits 309196F Designed to fit straight sided drums with a 22.5” (571 mm) ID Model 243279 (built prior to May 2006) Model 253292 (built May 2006 and after) Dual Tee Wipers Maximum Temperature 250_F (121_C) -
Page 2: Symbols
Symbols Warning Symbol Caution Symbol WARNING CAUTION This symbol alerts you to the possibility of serious This symbol alerts you to the possibility of damage to injury or death if you do not follow the instructions. or destruction of equipment if you do not follow the instructions. -
Page 3: Installation
Installation Twin Tee Wiper Kit 243279 / 253292 5. Secure the top band using the screw in the band. Clean the seal groves as follows: 6. Roll the second wiper ring up from the bottom of the plate to the bottom ring groove. - Page 4 Installation Tee Wiper / Steam Hose Kit 245668 / 3. Secure the top band using the screw in the band. 253290 4. Install the second upper band onto the bottom of Clean the seal grooves as follows: the wiper ring on the top groove of the wiper. 1.
- Page 5 Installation Silicone Hose / Steam Hose Kit C31007 / NOTE: Upper wiper is green hose, lower is black hose. 253291 1. Assemble and cut band as shown in Fig. 3. Clean the seal grooves as follows: 2. Install screw jack in slot. Tape around tab in slot. 1.
- Page 6 Installation Spring / Hose Wipers Kit 234995 / 253289 Install the wiper ring seals as follows: Clean the seal grooves as follows: 1. Install hose and spring so that the angled ends of the hose press against each other. 1. Using a wooden or plastic tool to prevent damage to the wiper, clean all material from the seal 2.
-
Page 7: Parts
Parts Model 243279 Dual Tee Wipers TI0410 Ref. Part No. Description Qty. Ref. Part No. Description Qty. 115656 SEAL, wiper ring, upper 115655 SEAL, wiper ring, lower 115658 BAND, wiper ring, upper 115657 BAND, wiper ring, lower 309196 7... - Page 8 Parts Model 245668 Tee Wiper / Steam Hose TI2346 Ref. Part No. Description Qty. Ref. Part No. Description Qty. C31005 HOSE, follower, lower 115656 SEAL, tee wiper C33040 CLAMP, kit, single seal 115658 BAND, wiper ring, upper 8 309196...
- Page 9 Parts Model C31007 Silicone Hose / Steam Hose TI2346 Ref. Part No. Description Qty. Ref. Part No. Description Qty. C31005 HOSE, follower, lower C31002 CLAMP, tire C31003 HOSE, follower, upper 309196 9...
- Page 10 Parts Model 234995 Spring / Hose Wipers ti1594a Ref. Part No. Description Qty. Ref. Part No. Description Qty. 119415 SPRING, wiper retaining 119413 HOSE, follower, upper; 1” 119414 HOSE, follower, lower; 3/4” 10 309196...
- Page 11 Parts Model 253289, Tire Plate Seal 2 Black EPDM/EPDM, SS wire braid Hose Wipers w/spring retention Ref. Part No. Description Qty. HOSE, follower upper SPRING, retaining wiper 309196 11...
- Page 12 Parts Model 253290, Tire Plate Seal 1 Lower Black EPDM/Chlorobutyl, SS Wire Braid Hose Wiper and 1 Upper White Silicone T–Wiper Ref. Part No. Description Qty. SEAL, T–wiper, 19.70 ID BAND, wiper ring, upper HOSE, follower upper 1” CLAMP, kit, single seal 12 309196...
- Page 13 Parts Model 253291 1 Lower Black EPDM / Chlorobutyl, SS wire braid Hose Wiper and 1 upper Green Silicone, Fiberglass Braid hose wiper Ref. Part No. Description Qty. C31003 HOSE, follower upper 119413 HOSE, follower lower C31002 CLAMP, tire 309196 13...
- Page 14 Parts Model 253292, Tire Plate Seal 2 White Silicone F T–Wipers Ref. Part No. Description Qty. SEAL, T–wiper, 19.70 ID BAND, wiper ring 14 309196...
-
Page 15: Technical Data
Technical Data Model Upper Wiper Lower Wiper Maximum Temperature 243279 / 253292 white silicone, tee style white silicone, tee style 250_ F 121_ C 245668 / 253290 white silicone, tee style black steam hose 375_ F (chlorobutyl) 190_ C C31007 / 253291... -
Page 16: Graco Standard Warranty
With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
