Graco TI12552a Installation Instructions Manual

Graco TI12552a Installation Instructions Manual

Plural component proportioner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Installation
ProMix
Plural Component Proportioner
Automatic system for proportional mixing of plural component coatings, with Wall Mount
Fluid Station or RoboMix Fluid Station. For professional use only.
Approved for use in explosive atmospheres (except the EasyKey).
Important Safety Instructions
Read all warnings and instructions in this
manual. Save these instructions.

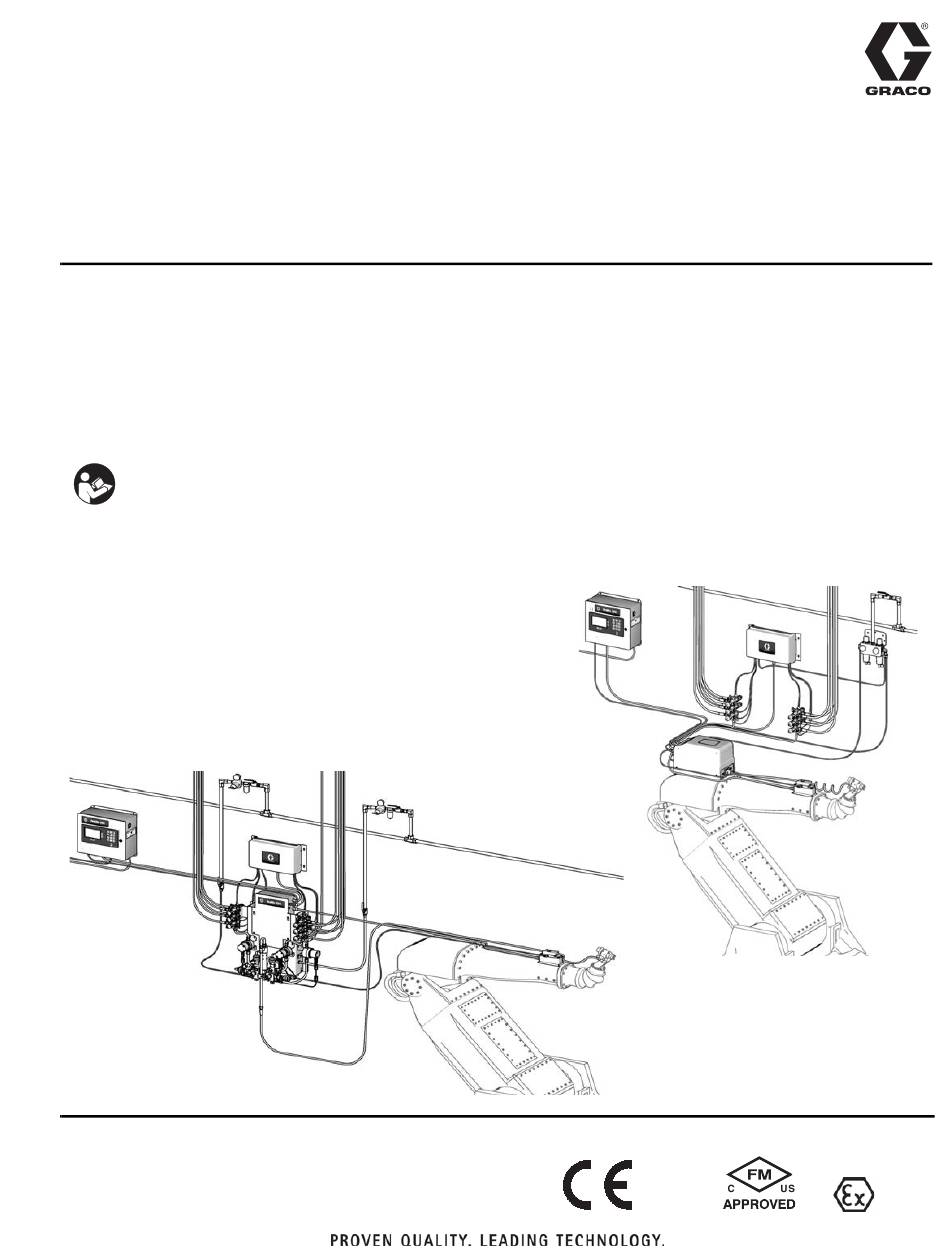

Automatic System with Wall Mount Fluid Station
®
2KS
See pages 4-7 for model information, including maxi-
mum working pressure. Equipment approval labels are
on page 3. Some components shown are not included
with all systems.
Automatic System with RoboMix Fluid Station
TI12553a
0359
312778G
EN
TI12552a
II 2 G
