Time4Sleep MAYA Manual page 8

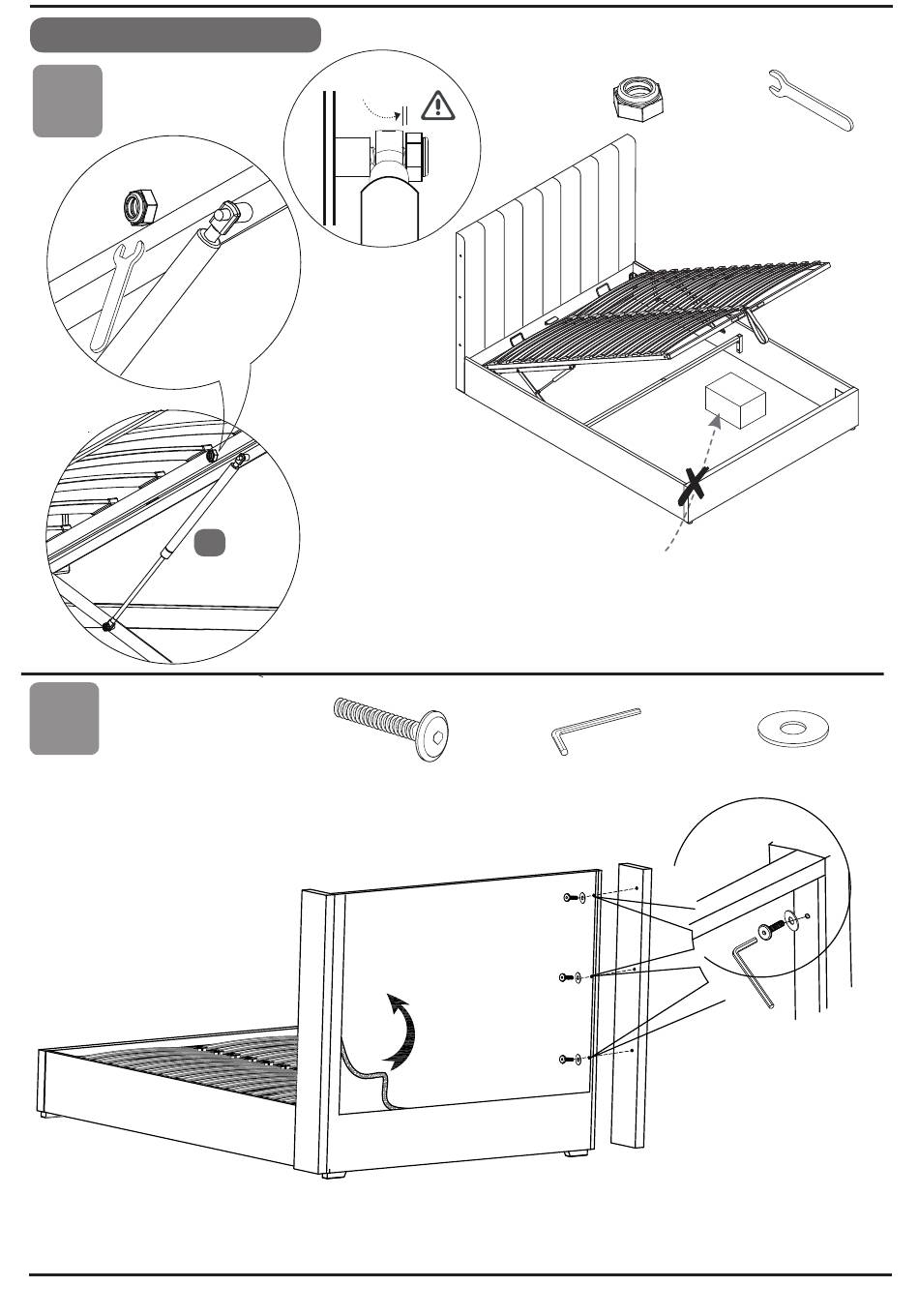

Bed Assembly
Stage
8
D
F
D
14
Stage
9
Note: Open the back fabric cover of the headboard,then to fix the both wings
SMALL GAP
x
y
Slide gas-lift piston stem (x)
onto the axle (y) then fit the
flange lock-nut (D).
Tighten nut with spanner (F)
- do not over-tighten.
A small gap must be left so
stem can move freely - this
is normal, see sketch above.
A x6
Page 8 of 9
D
x2
Note: Be careful what you store
under the bed - the top of an item,
like a suitcase or a box , must not
touch the slats or they may be
damaged. Maximum storage height
is 25cm.
E x1
F x1
G x6
