Time4Sleep MAYA Manual page 6

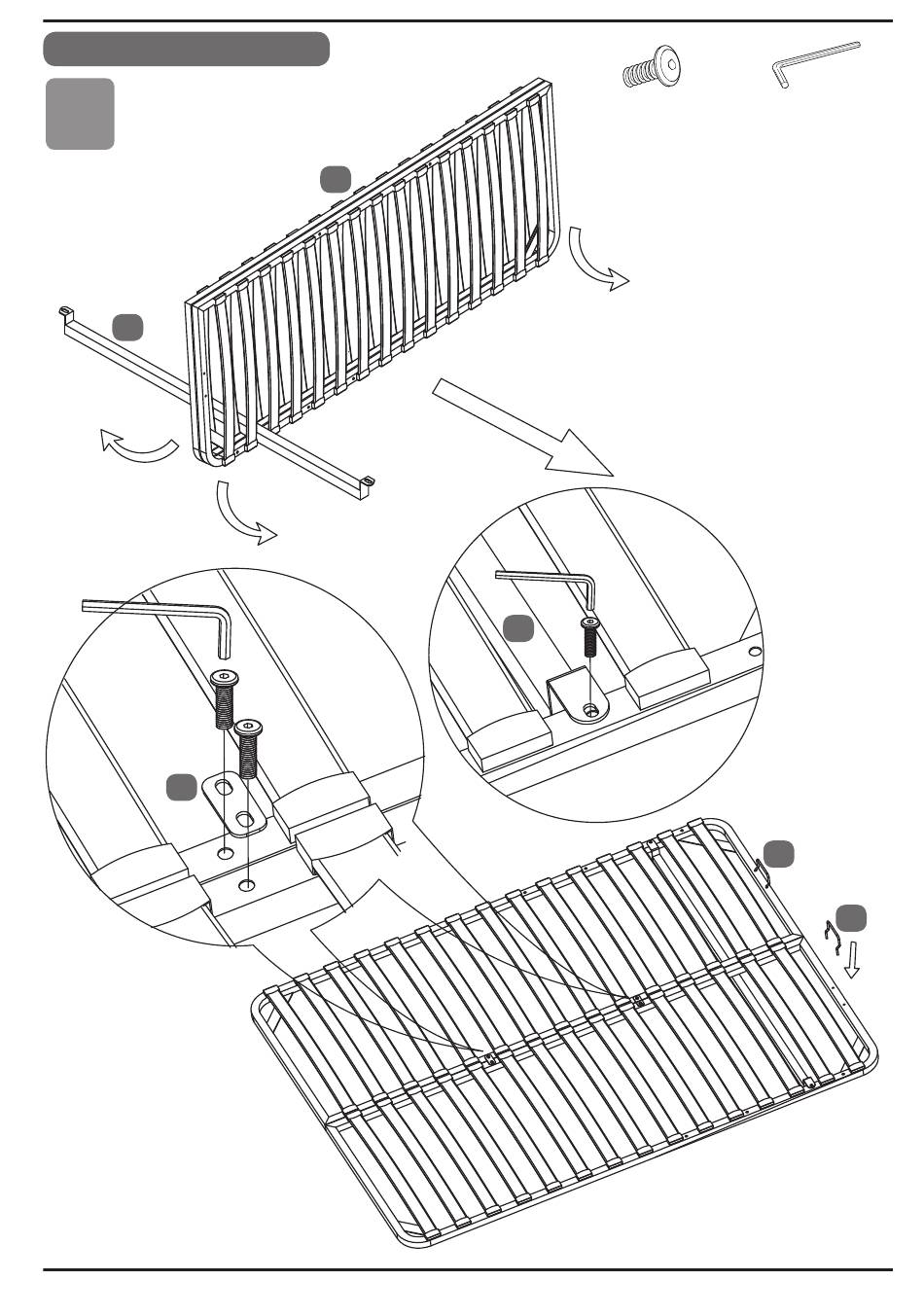

Bed Assembly
Stage
5
7
6
iii)
The cross bar fixing
plates sit on top of each
side of the slat frame (5),
sit the plates on the round
labels. Align with the
threaded holes and loosely
fix through the plates using
two bolts (C).
Using Allen key (E), tighten
all six bolts 100%.
5
C x2
Page 6 of 9
C
i)
Fitting position for the slat-frame cross
bar (7) is clearly labeled . At the end of
the slat frame (5) , pass the bar through
the gap between second & third slat.
Carefully open the frame.
ii)
To top of the slat frame, fit two
connection plates (6) using four
bolts (C). Screw the bolts into
the threaded inserts on top of
the frame.
Please do not tighten 100% yet.
C
7
E x1
x6
12
12
