IMPORTANT: BEFORE STARTING TO ASSEMBLE THE BED - PLEASE READ THESE INSTRUCTIONS CAREFULLY.

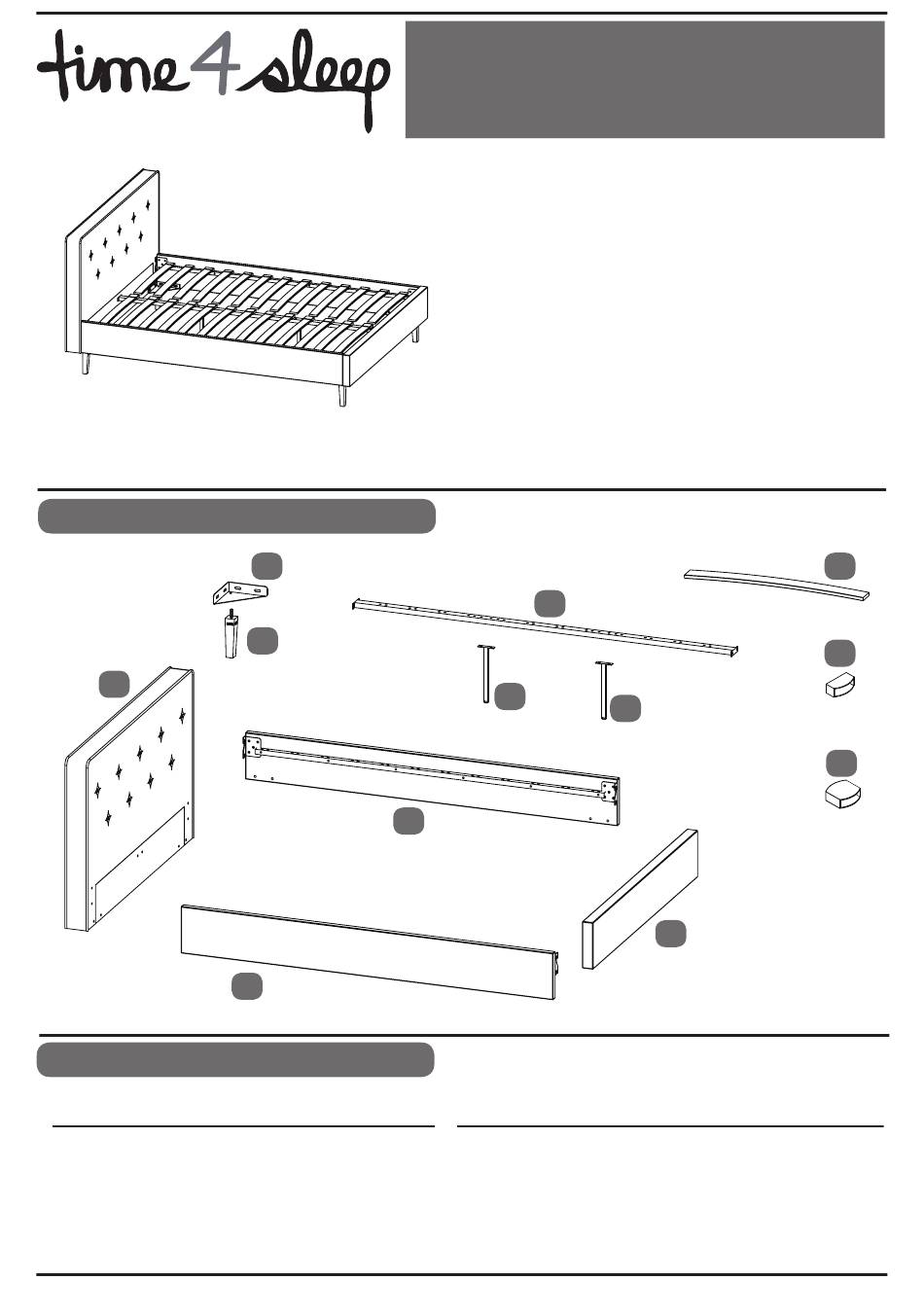

Parts Identification
1
Parts Checklist
Ref.
Description
1
Headboard
2
Footboard
3
Side Rails
Angle Brackets
4
5
Wooden Legs
180822
4
5
3
3
Qty
1
1
2
4
4
Page 1 of 5
SANTORINI BEDSTEAD
Double and King Size
PLEASE READ this sheet prior to assembly to familiarise
yourself with the various stages of construction. Carefully
open the pack supplied and check the contents against the
parts and fittings check list.
Do not destroy any of the packaging until you are certain
that you have all the necessary parts for the assembly.
Please ensure that the packaging is disposed of in
a safe environmentally friendly way.
CAUTION: There are small components used in the
construction of this unit. These loose items should be
e k
t p
a
w
a
f y
o r
m
o y
u
n
g
h c
the danger of choking.
6
7
7
Ref.
Description
6
Centre Support Bar
7
Centre Support Bar Legs
8
Wooden Slats
9
Single Plastic Caps
10
Double Plastic Caps
d l i
e r
n
d
r u
n i
g
s a
e s
m
b
, y l
o t
2
Double/King
Double/King
Double/King
a
o v
d i
8
9
10
Qty
1
2
24/26
24/26
12/13
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Time4Sleep SANTORINI BEDSTEAD
Summary of Contents for Time4Sleep SANTORINI BEDSTEAD
- Page 1 SANTORINI BEDSTEAD Double and King Size PLEASE READ this sheet prior to assembly to familiarise yourself with the various stages of construction. Carefully open the pack supplied and check the contents against the parts and fittings check list. Do not destroy any of the packaging until you are certain that you have all the necessary parts for the assembly.
-
Page 2: Additional Tools Required
Fittings Checklist HARDWARE NEEDED FOR BED ASSEMBLY Code Description Code Description Bolts (M8x30mm) for Bolts (M8x40mm) for fitting fitting side rails (3) and to Centre Support Bar Legs (7) to headboard & footboard (1&2) Centre Support Bar (6) Spring Washers (for M8 bolts) M8 nuts for fixing Legs (5) to corner brackets (4) and fitting centre bar support legs (7) -
Page 3: Bed Assembly
Bed Assembly Stage Fit two sets of bolts (A), spring washers (B) , and flat washers (C) to the holes in the headboard (1) and footboard (2) as shown. Note: Do not tighten fully but leave 10mm protruding as in the diagram. Fit the side rails (3) to the headboard and footboard locating the brackets behind the flat washers. - Page 4 Bed Assembly Stage MAKE CERTAIN THE BED IS SQUARED UP, AS SHOWN IN THE DIAGRAM. Once all four corners are located, make sure the bed is square as in the sketch, then tighten all the bolts 100% using allen key (D). Stage Page 4 of 5...
-
Page 5: Double Size
Bed Assembly Stage Fit single plastic caps (9) to each end of a pair DOUBLE SIZE of slats (8) then slide into the double cap (10) in the centre. Connect each set onto centre support bar (6) & the supports on the side rails (3) - carefully align the lugs &...
