Time4Sleep HAMILTON OTTOMAN STORAGE BED Assembly Instructions Manual

Double and king size

Advertisement

Quick Links

IMPORTANT: BEFORE STARTING TO ASSEMBLE THE BED - PLEASE READ THESE INSTRUCTIONS CAREFULLY.
An instructional video of the Operation of the Ottoman Lift Up system is available via YouTube using
the following address:

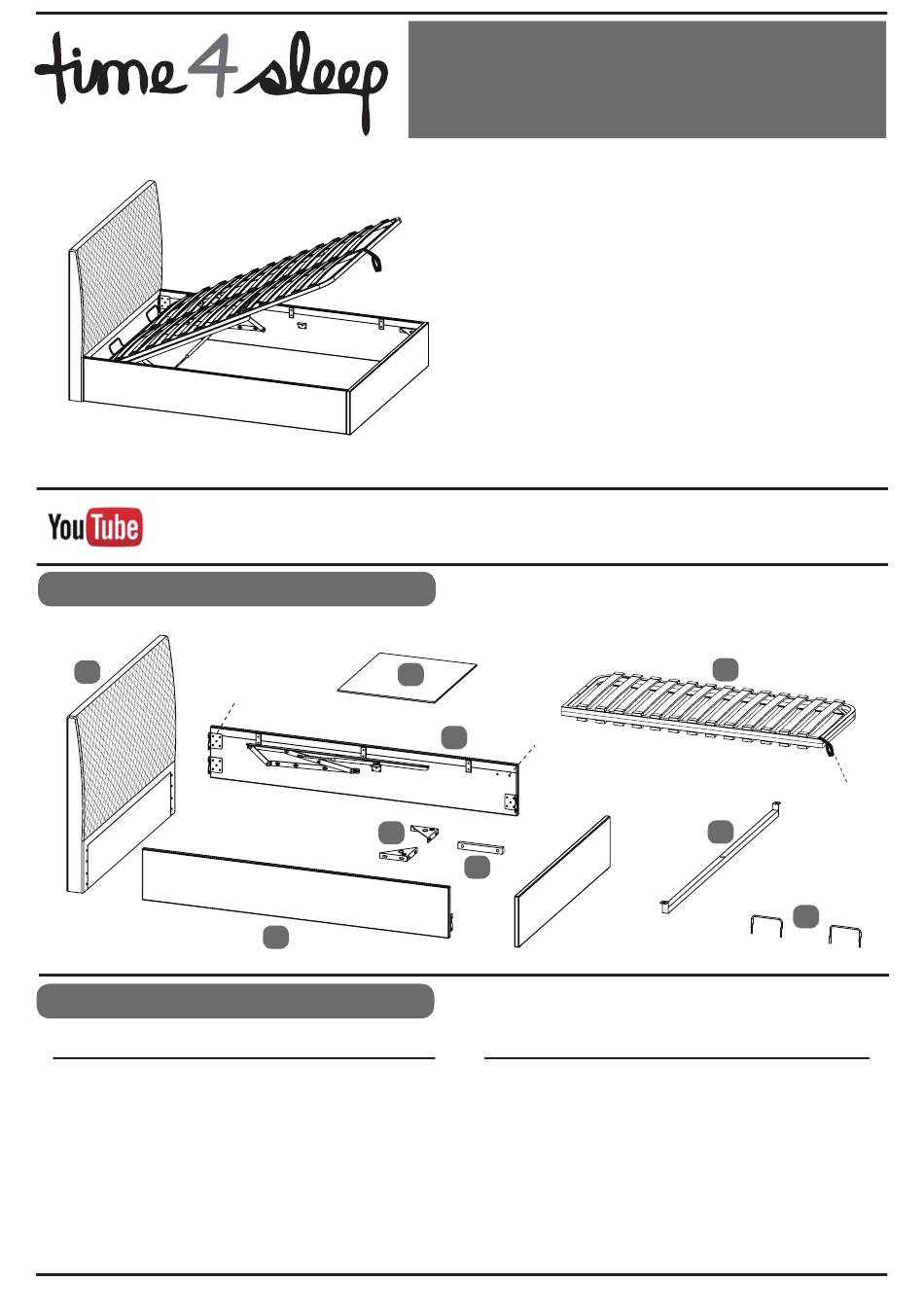

Parts Identification
1
HEADEND
Parts Checklist
Ref.
Description
1
Headboard
2
Footboard
3
Side Rail - Left
4
Side Rail - Right
5
Base Fabric Cover
200422
HAMILTON OTTOMAN STORAGE BED
5
6
3
Qty
1
1
1
1
1
Page 1 of 8
DOUBLE AND KING SIZE
PLEASE READ this sheet prior to assembly to familiarise
yourself with the various stages of construction. Carefully
open the pack supplied and check the contents against the
parts and fittings check list.
Do not destroy any of the packaging until you are certain
that you have all the necessary parts for the assembly.
Please ensure that the packaging is disposed of in
a safe environmentally friendly way.
CAUTION: There are small components used in the
construction of this unit. These loose items should be
kept away from young children during assembly, to avoid
the danger of choking.
https://youtu.be/hyq4zm7h_yU
FOOTEND
4
7
Ref.
Description
6
Angle Brackets
7
Slat Frame Support Rail
8
Metal Slat Frame
9
Cross Bar
10
Mattress Stoppers
8
FABRIC
9
10
Qty
2
1
1
1
2

Advertisement

loading
Need help?

Need help?

Do you have a question about the HAMILTON OTTOMAN STORAGE BED and is the answer not in the manual?

Questions and answers

Summary of Contents for Time4Sleep HAMILTON OTTOMAN STORAGE BED

  • Page 1 HAMILTON OTTOMAN STORAGE BED DOUBLE AND KING SIZE PLEASE READ this sheet prior to assembly to familiarise yourself with the various stages of construction. Carefully open the pack supplied and check the contents against the parts and fittings check list.
  • Page 2: Additional Tools Required

    Fittings Checklist HARDWARE NEEDED FOR BED ASSEMBLY (PACK A) Ref. Description Ref. Description Bolts (M8x30mm) for fitting side rails (3&4) and to Allen Key (for M8 bolt) headboard & footboard (1&2) Spring Washers (for M8 bolts) Bolts (M8x50mm) for fitting Slat Frame Support Rail (6) to Footboard (2) Flat Washers (for M8 bolts)
  • Page 3 Bed Assembly - Use Pack 'A' Stage 10mm Fit slat frame support rail (9) to footboard using two bolts (E) & flat washers (C). Using Allen Key (D) tighten 100%. Page 3 of 8...
  • Page 4 Bed Assembly - Use Pack 'A' Stage & & Loosely screw in the bolts but do not tighten them 100% yet. Page 4 of 8...
  • Page 5 Bed Assembly - Use Pack 'A' Stage 100% Make certain the bed is squared up as shown in the diagram then tighten all bed assembly bolts 100%. CAREFULLY LIFT BOTH HEADBOARD WARNING WARNING Stage & FOOTBOARD AT THE SAME TIME, TEAM LIFT ITEM DO NOT LET THE BED TWIST This item is either too heavy or too bulky...
  • Page 6 Assembling Slat Frame - Use Pack ‘B’ Stage iii) Fitting position for cross Bar (9) is clearly Using four sets of bolts (J) ,spring washer (B) labeled. Pass bar through Metal Slat Frame & flat washers (C) fit two pieces of the m etal (8) between first &...
  • Page 7 Bed Assembly - Use Pack 'B' Stage With help from your assistant, lift slat frame (8) onto slat frame support bars aligning first set of holes on slat frame with first set of holes in support bars (nearest to headboard). Bolt into centre of long holes Using three bolt sets on each side (E), (C), (B) &...
  • Page 8 Bed Assembly - Use Pack 'B' Stage Note: Be very careful what you store under the bed - the top of an item, like a suitcase or a box must not touch the slats or they may be damaged. Maximum storage height is 185mm.
