Warning: Flying material can cause eye injury or blindness and sharp edges could cause cuts or
lacerations. Wear safety glasses and gloves when installing or working on drain.
1. Cut pipe so that the height of the finished drain is at or just
below the height of the finished floor. (See Zurn Engineering
Handbook or EZ1
Submittal for dimensional heights). Ensure
TM
pipe is cut square and free of burrs or debris. See Fig. 1
2. Install drain body on pipe and pressure test connection per local
code requirements. See Fig. 2 (Neo-loc body shown for
reference)
Note: All plastic bodies to be solvent welded to pipe
3. Pour the rough floor slab flush with the top of the drain body.
See Fig. 3
WARNING: Cancer and Reproductive Harm -
ADVERTENCIA: Cáncer y daño reproductivo -
AVERTISSEMENT: Cancer et effets néfastes sur la reproduction -
Zurn Industries, LLC
|
Specification Drainage Operation
1801 Pittsburgh Avenue, Erie, PA U.S.A. 16502 · Ph. 855-663-9876, Fax 814-454-7929
In Canada
|
Zurn Industries Limited
3544 Nashua Drive, Mississauga, Ontario L4V 1L2 · Ph. 905-405-8272, Fax 905-405-1292
www.zurn.com
EZ1
DRAINAGE SERIES
TM

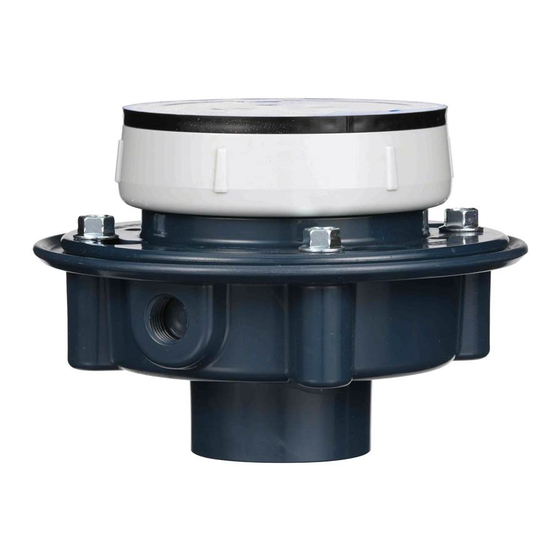

EZ1
FLOOR DRAIN INSTALLATION INSTRUCTIONS
TM
www.P65Warnings.ca.gov
www.P65Warnings.ca.gov
Fig. 1
Fig. 2
Fig. 3
www.P65Warnings.ca.gov
Rev.
C
Date:
02/27/2018
C.N. No.
139680
Form No. FD97
Page 1 of 6
Advertisement
Table of Contents
Related Manuals for ZURN EZ1
Summary of Contents for ZURN EZ1
- Page 1 Wear safety glasses and gloves when installing or working on drain. 1. Cut pipe so that the height of the finished drain is at or just below the height of the finished floor. (See Zurn Engineering Handbook or EZ1 Submittal for dimensional heights).
- Page 2 Note: If fixture is above floor surface, it is recommended to hand finish concrete around fixture to avoid damage. Fig. 6 Zurn Industries, LLC Specification Drainage Operation Rev. 1801 Pittsburgh Avenue, Erie, PA U.S.A. 16502 · Ph. 855-663-9876, Fax 814-454-7929...
- Page 3 See Fig. 9 Above the concrete Fig. 9 Zurn Industries, LLC Specification Drainage Operation Rev. 1801 Pittsburgh Avenue, Erie, PA U.S.A. 16502 · Ph. 855-663-9876, Fax 814-454-7929 Date: 02/27/2018...
- Page 4 Remove protective label once construction is complete. See Fig. 12S Fig. 11S Fig. 12S Zurn Industries, LLC Specification Drainage Operation Rev. 1801 Pittsburgh Avenue, Erie, PA U.S.A. 16502 · Ph. 855-663-9876, Fax 814-454-7929 Date:...
- Page 5 14. Install finished flooring per manufacturers instructions. Remove protective label from strainer once construction is complete. See Fig. 14S Fig. 14S Fig. 13S Zurn Industries, LLC Specification Drainage Operation Rev. 1801 Pittsburgh Avenue, Erie, PA U.S.A. 16502 · Ph. 855-663-9876, Fax 814-454-7929 Date: 02/27/2018...
- Page 6 Remove protective label from strainer once construction is complete. See Fig. 17a for Slab on Grade Installation and Fig. 17b for tile installation Fig. 17b Fig. 17a Zurn Industries, LLC Specification Drainage Operation Rev. 1801 Pittsburgh Avenue, Erie, PA U.S.A. 16502 · Ph. 855-663-9876, Fax 814-454-7929 Date:...
