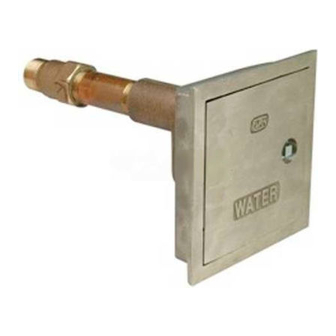

Z1300 ECOLOTROL WALL HYDRANT – Encased, Non-Freeze, Anti-Siphon, Automatic Draining
ENGINEERING SPECIFICATION: ZURN Z1300 Encased Ecolotrol "anti-siphon" automatic
draining wall hydrant for flush installation. Complete with non-freeze type integral
backflow preventer, bronze casing, all bronze interior parts, non-turning operating rod
with free-floating compression closure valve, replaceable bronze seat and seat washer,
and combination 3/4" [19 mm] female or 1" [25 mm] male straight IP inlet. Nickel
bronze box and hinged cover with operating key lock and "WATER" cast on cover.
Wall Thickness 6" 8"
Inches [mm] [152] [203] [254]
Overall Length*
8 ⁄ " 10 ⁄ " 12
3 3
4 4
Inches [mm] [222] [273] [324]
Approx. Weight 9 9
Lbs. [Kg]
[4] [4]
*3/4" [19 mm] female and 1" [25 mm] male IPS connections.
ZURN INDUSTRIES, LLC Specification Drainage Operation , 1801 Pittsburgh Avenue, Erie, PA 16502, 855.663.9876 Form No. ZMKTG210-15, 7/18
10" 12" 14" 16" 18"
[305] [356] [406] [457]
⁄ " 14 ⁄ " 16 ⁄ " 18 ⁄ " 20 ⁄ "
3 3 3 3 3
4 4 4 4 4
[375] [425] [476] [527]
12 12 12 15 15
[5] [5] [5] [7] [7]

Z1300 Ecolotrol Wall Hydrant

The Z1300 Ecolotrol is an encased, automatic draining, non-freeze, anti-
siphon wall hydrant designed for commercial applications such as office
buildings, institutions, hospitals, malls and retail outlets, and schools.

Hydrant Features

• Certification – IAPMO
Approved under ASSE standard 1019-A.
• Integral Anti-Siphon Vacuum Breaker/Backflow Preventer – Unique
design utilizes an internal Equa-Balance
tion of the potable water supply through back siphonage. The use of an
additional hose-connection vacuum breaker with ASSE 1011 approval
is not necessary.
• Valve Seat – Removable bronze valve seat with circular seating surface.
• Valve – One-piece assembly, replaceable, free-floating compression
closure valve plunger operates the water flow and drainage with a maxi-
mum of two and one-half (2-1/2) turns. No adjustments are necessary.
• Casing – Threaded brass pipe nipple.
• Operating Screw – Chrome-plated brass.
• Operating Rod – 3/8" [10 mm] solid brass.
• Faceplate – Constructed of type 304 stainless steel with brush finish.
• Box and Cover – Cast nickel bronze box and hinged cover with "WATER"
stamping.
• Drainage – Through circular drain ports of the nozzle.
• Operating Pressures – Minimum running pressure 8 psi. Maximum static
pressure 125 psi.
• Water Temperature Range – Minimum 33°F. Maximum 130°F.
SUFFIXES
–CL Cylinder Lock
–PB Polished Bronze Face
–RA2 12" [305 mm] Replacement Rod Assembly with Repair Kit (-RK)
–RA4 24" [610 mm] Replacement Rod Assembly with Repair Kit (-RK)
–RK
Hydrant Parts Repair Kit
–SB Statuary Bronze Face (Specify light, medium, or dark finish.)
20" 22" 24"
–SS Stainless Steel Box and Cover
[508] [559] [610]
–WC Wall Clamp
22 ⁄ " 24 ⁄ " 26 ⁄ "
3 3 3
4 4 4
–34FS 3/4" [19 mm] Solder Female Inlet Adapter
[578] [629] [679]
–34UN 3/4" [19 mm] IP 90° Inlet Elbow with Union Nut
18 18 18
[8] [8] [8]
Inlet Descriptions
Standard
® and City of L.A. listed.
®
seal to prevent contam ina-
®

OPTIONS

-34FS
-34UN
