AquaSense

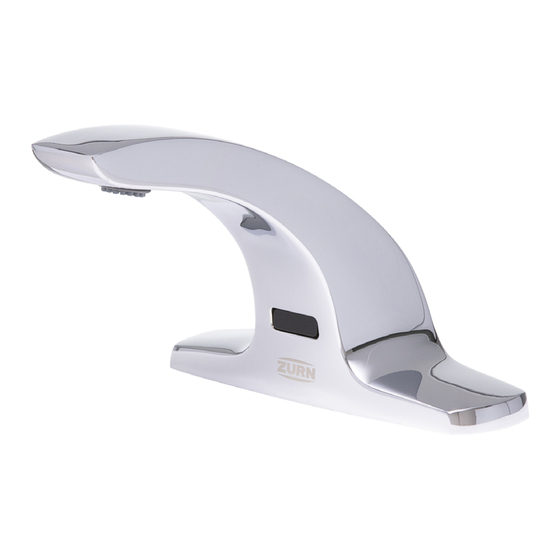

ZG6913 & ZG6915 Series
Sensor-Operated Gear Driven Type
Faucets with Battery Powered,
Hardwired or Connected
Installation, Operation, Maintenance
and Parts Manual
LIMITED WARRANTY
®
ZG6915
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ZURN AquaSense ZG6913
Summary of Contents for ZURN AquaSense ZG6913
- Page 1 All weights stated in our catalogs and lists are approximate and are not guaranteed. NOTICE: READ ENTIRE MANUAL PRIOR TO INSTALLING PRODUCT. Rev: A | Date: 03/11/24 | C.N. No. 145873 | Prod./Dwg. No. FV846 Patent zurn.com/patents US 1.855.ONE.ZURN CANADA 1.877.892.5216 ZURN.COM...
-
Page 2: Specifications
Aerator: 0.5 GPM Vandal-Resistant (Standard) Important Safety Information • Do not convert or modify this Zurn product. All warranties will be voided. • All plumbing is to be installed in accordance with applicable codes and regulations. • Water supply lines must be sized to provide an adequate volume of water for each fixture. • Flush all water lines prior to making connections. - Page 3 • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult an authorized dealer or service representative for help. Zurn is not responsible for any radio or television interference caused by using other than specified or recommended cables and connectors or by unauthorized changes or modifications to this equipment. Unauthorized changes or modifications could void the user's authority to operate the equipment.
-
Page 4: Package Contents
Package Contents Hydro Generator Electronic Box Batteries ZG6913 ZG6915 Faucet Spout Faucet Spout & Mounting & Mounting Hardware Hardware Connected Monitor Aerator & Key (If ordeded) Required Tools Optional Accessories 3/32” & M3 Hex Key Wrenches Adjustable Wrench (Supplied) Magic Magnet P6900-AT-MAG AC/DC Power Supply P6900-ACA... - Page 5 Cover Plate Installation Instructions (ZG6913 Series) (For ZG6913 faucets with -CP4 or -CP8 suffix). Thread the sensor connector wire and shank through the gasket. Align the gasket with the bottom of the faucet and firmly press them together. Then, pass the sensor connector and shank through the cover plate, securing them to the faucet using the supplied screws. Spout Installation Instructions (All Configurations) NOTE: Before installation, turn off water supplies to existing faucet and remove faucet if replacing an existing device.
- Page 6 Electronics Module Installation Instructions (-HYD) 1. Connect hydrogenerator and electronics module with the swivel 2. Connect electronics module power cable to hydrogenerator. nut turning counter clockwise. Hydro Generator Electronic 3. Open battery module using supplied Allen wrench and install 4. Tighten electronics module assembly with hydrogenerator to supplied alkaline batteries in the electronics module in the shank and connect water line(s).
- Page 7 Connected Monitor Installation Instructions (-W2) NOTE: Follow and complete Electronics Module Installation instruction before continue. 1. Install Monitor on wall surface within 2 feet radius of faucet with 2. Loosen lid screw with supplied 3mm Allen wrench and Open the dry wall anchors &...
- Page 8 Mixing Valve Installation (All Configurations) Faucet Control Box -SSH Option P6900-MV-ADAP Braided Hose Supplied Adapter -MV Option Mixing Valve -TMV-1 Option 3/8 Copper Tube Thermostatic (Not Supplied) Mixing Valve Note:To install Braided Hose, need to hold swivel nut on control box or mixing valve in position then apply torque by hand or wrench to install.
- Page 9 Sensor Range Adjustment (All configurations when necessary) 1. Ensure that the faucet is installed and powered has been applied. 2. Place and hold the Magic Magnet (optional accessory: P6900-AT-MAG) in the upper right hand corner of the sensor as shown. An indicating light will activate when the magnet is correctly positioned. 3. Wait until the light starts to blink, then remove the magnet. (Faucet has entered the calibration mode.) 4. Place a target at the desired activation range in front of the faucet sensor. (Cardboard, hand, etc.) 5.
- Page 10 Zurn connected product. 3. Drill holes for the screws and insert anchors. 4. Zurn Gateways have been set to DHCP by default. Please 4. Place the mounting bracket and secure it with screws. consult local IT support for possible additional access requirements for your network.
- Page 11 If the shank, is missing. gasket is not installed, proceed to install it. In case of any damage, replace the gasket with a new one. For further assistance with troubleshooting visit http://www.zurn.com FV846 Rev.A 03/11/24 Page 10...
- Page 12 Details tab is listed as “Activated” NETWORK: Senet SUBSCRIPTION STATUS: Activated LAST HEARD FROM: 07/14/2020, 04:29 PM CDT If listed as “Deactivated”, contact Zurn Customer Service at 1.855.ONE.ZURN (1.855.663.9876) for assistance. “Status – Good” posted in plumbSMART and faucet not Step 1 actuating Verify LoRa Monitor’s cables are connected to IR sensor...
- Page 13 If LORA LED does not turn ON solid and ethernet cable connected, contact facility IT administrator to modify port rules to allow Zurn gateway to access the internet via local router. If gateway model is ETH/LTE, visually verify SIM card is installed in designated slot on the side of gateway.
- Page 14 ZG6913 & ZG6915 Parts List 9 & 10 Description Product No. Description Product No. Item 1: ZG6913 Spout Assembly with Item 8: 8” Cast Cover Plate w/Gasket P6900-CP8 PG6913-1 Sensor Item 9: Single Stainless Supply Hose (XL) P6900-SSH Item 2: ZG6915 Spout Assembly with Item 10: Dual Stainless Supply Hose (XL) P6900-SSH-2 PG6915-1...
- Page 15 This Page Intentionally Left Blank FV846 Rev.A 03/11/24 Page 14...
- Page 16 Rev: A | Date: 03/11/24 | C.N. No. 145873 | Prod./Dwg. No. FV846 Patent zurn.com/patents US 1.855.ONE.ZURN CANADA 1.877.892.5216 ZURN.COM...
