Tine Pattern Layouts

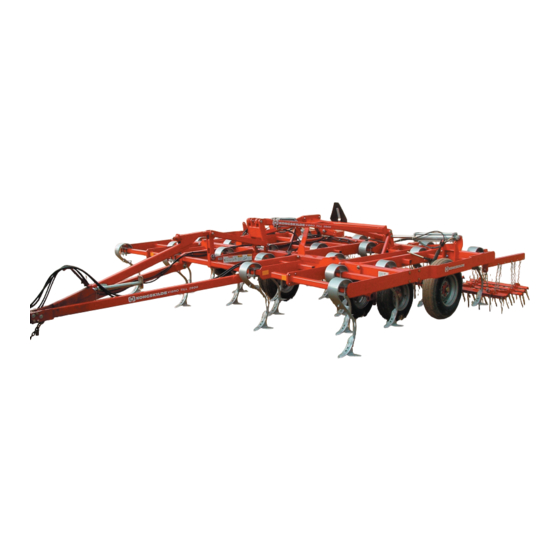

VIBRO TILL 2800
FIELD CULTIVATOR

Advertisement

loading
Need help?

Need help?

Do you have a question about the VIBRO TILL 2800 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kongskilde VIBRO TILL 2800

  • Page 1 VIBRO TILL 2800 FIELD CULTIVATOR *Model may not be exactly as shown. Kongskilde reserves the right to make changes to product designs and specifications without notice or obligation to rework. Levelling attachments pictured on above unit sold separatly. See your local Kongskilde representative for current product specifications and options.
  • Page 2 Index Introduction..........................3 10' Center / 16'8" Wide 4" Tine spacing 51 Tines ................4 10' Center / 20'0" Wide 4" Tine spacing 61 Tines ................5 10' Center / 23'4" Wide 4" Tine spacing 71 Tines ................6 10' Center / 26'8" Wide 4" Tine spacing 81 Tines ................7 10' Center / 16'8"...
  • Page 3 2800 Vibro -Till Assembly Supplement: This Booklet is meant as a supplement to the 2800 Vibro-Till assembly manual. Use this tine pattern booklet, the parts book and the 2800 Vibro-Till assembly manual as you assemble the Vibro-Till Unit. Tine Pattern Reference Section: Tines Patterns in this booklet are organized by machine model and spacing as follows: 10' (3m) Centre and Wings - 4"...
