TERRA-D
Directions for use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TERRA-D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kongskilde TERRA-D

Summary of Contents for Kongskilde TERRA-D

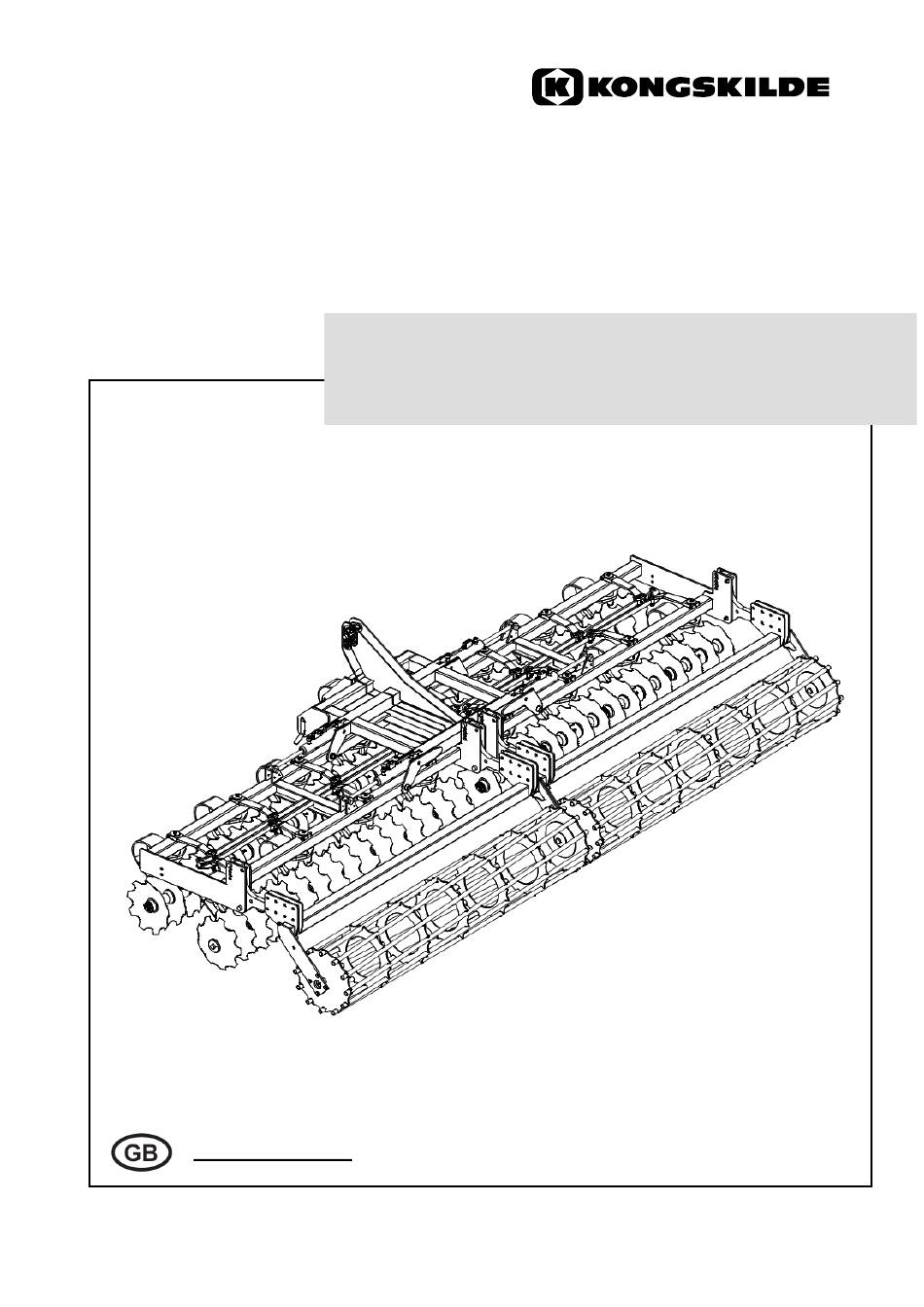

  • Page 1 TERRA-D Directions for use...

  • Page 2: Table Of Contents

    Coupling of the TERRA-D Uncoupling of the TERRA-D Road Transport Technical data and dimensions Lifting points Operation Adjustment and use of the TERRA-D Adjustment of the working depth Adjusting the working angle Adjustment of the main angling Front-rear relation Adjustment of centre tine...

  • Page 3: Introduction

    The hydraulic adjustable working angle of the discs, makes it easy to adjust the implement to different soil types and working speeds. In general TERRA-D is a mean to reduce field costs by reducing the number of passes on the field.

  • Page 4: Safety

    The manufacturer declines any responsibility for accidents and damages to the TERRA-D resulting from failure to apply safety advice. − The TERRA-D should only be used, maintained and repaired by persons, who are familiar with the safety advice and who are informed about the dangers.

  • Page 5: Three Point Hitch

    − Unauthorised persons are not allowed to stay in the working area during work. No work is to be carried out, if there are unauthorised persons, especially children, near the TERRA-D or in the danger zone of foldable parts without keeping a safe distance.

  • Page 6: During Transportation

    Remove ignition key and apply hand brake. − For maintenance on a raised up implement, always secure the TERRA-D on suitable stands. − When changing work tools, which have cutting edges, use suitable tools and gloves.

  • Page 7: Safety Decals

    Safety decals Inctructions Read and observe the operating instructions. Before commissioning the TERRA-D, read and observe both operating instructions and safety advice. Part no.: 71 000 187 250 Danger of crushing Never reach into the danger zone, as long as there could be moving parts.
  • Page 8 Park in lowered position. The TERRA-D must ONLY be parked in working position. Part no.: 71 000 646 708 Always keep safety decals in clean and readable condition! Request substitutes for damaged or missing decals from the dealer and place...

  • Page 9: Coupling Of The Terra-D

    If they do not correspond, the three-point linkage on the tractor must be adjusted. Make sure that the TERRA-D is parked on solid ground and secure it against rolling. Insert correct category ball bushes on the pins for the lower linkage and head stock connections on the TERRA-D.

  • Page 10: Road Transport

    Road transport Pay attention to the following points before driving on public roads: − The tractor must be suitable for the TERRA-D. − The local traffic rules must be followed. Hitch up the machine as far as it is necessary to ensure a safe road transport.

  • Page 11: Technical Data And Dimensions

    Technical data and dimensions TERRA-D 3000 TERRA-D 4000 H TERRA-D 6000 H Working width 3,0 m 4,0 m 6,0 m Transport width 3,0 m 3,0 m 3,0 m Weight w. crumble rollers 1600 kg 2400 kg 2800 kg Working depth 0 –...

  • Page 12: Lifting Points

    Lifting points When the TERRA-D should be lifted up or down from a truck by a crane or a forklift the following lifting recommendations must be followed. − Always use a crane or a forklift with the suffients strength and ballast to carry the weight of the TERRA-D.

  • Page 13: Operation

    Open the valve and unfold the TERRA-D (hydraulic foldable versions only) and lower it. Fold and unfold only when lifted off the ground. Adjust the TERRA-D with the top link in such way that the front disc row runs a little higher than the rear one (approx. 10-20 mm).

  • Page 14: Adjusting The Working Angle

    The rollers with a diameter above 550 mm should be assembled using the bottom row of holes. Adjusting the working angle The disc sections of the TERRA-D can be angled to find the most optimal working position. Speed, type of soil and working depth decides the setting of the angle, which always has to be adjusted to the actual field conditions.

  • Page 15: Adjustment Of The Main Angling

    Adjustment of the main angling The main working angle can be adjusted hydraulically from the tractor cabin during work. The indicator on the frame shows how much the sections are angled. The hydraulic cylinder setting the main angle Front-rear relation The relation between the front and rear row of discs can also be set, so the most optimal flow in the machine is achieved.
  • Page 16 Pos 2: Minus 5 deg The hydraulic adjustment of the working angle does not require additional hydraulic connections on the tractor. The position of the valve placed on the folding cylinders decides the operation. Folding the TERRA-D. Adjusting the working angle.

  • Page 17: Adjustment Of Centre Tine

    Adjustment of the centre tine The TERRA-D is equipped with a centre tine in the front, to work the zone between the centre discs. The tine is a standard Vibro Flex tine, which should always work in the same depth as the discs.

  • Page 18: Adjustment Of The Bank Leveller

    Adjustment of the bank leveller (optional) The bank levellers can be adjusted in the height position only. The bank leveller plate must work just above the soil surface and not into the ground. − Pull out the pin − Adjust the bank leveller to the correct level −...

  • Page 19: Transportation By Road/Traffic Safety

    − Never leave the driver’s cab during transportation! − When driving around corners and bends take the extra width and/or the inertia of the TERRA-D as well as the high centre of gravity of the folded frame into consideration. After transportation −...

  • Page 20: Transport Security

    Transport security Hydraulic foldable frame parts must be secured for transportation on public roads against any accidental folding out by turning the stop valve on the implement to the close position. Note: The locking device on the hydraulic cylinders prevents from accidental folding in case of a defect in the hydraulic hoses.

  • Page 21: Maintenance

    − Worn and damaged parts must be changed at the earliest possible moment in order to secure correct and safe function. − Use only original KONGSKILDE wearing and spare parts. Lubrication Disc sections, front and rear row, grease for every 20 hrs...
  • Page 22 Angle adjustment bars, grease for every 100 hrs. Cylinger joint for angle adjustment, grease for every 100 hrs. (Hydraulic adjustment versions only)
  • Page 23 Folding joints (hydraulic foldable version only), grease for every 20 hrs. Cylinder joints (hydraulic foldable only), grease for every 20 hrs.

  • Page 24: Optional Equipment

    Scraper system General use − When using the TERRA-D in wet and heavy soil types, a scraper system can be necessary in order to keep the hollow discs clean during work. − Using a scraper system for TERRA-D does not mean, that the implement can work in all possible conditions.
  • Page 25 372 100 434 05.04.2013.
