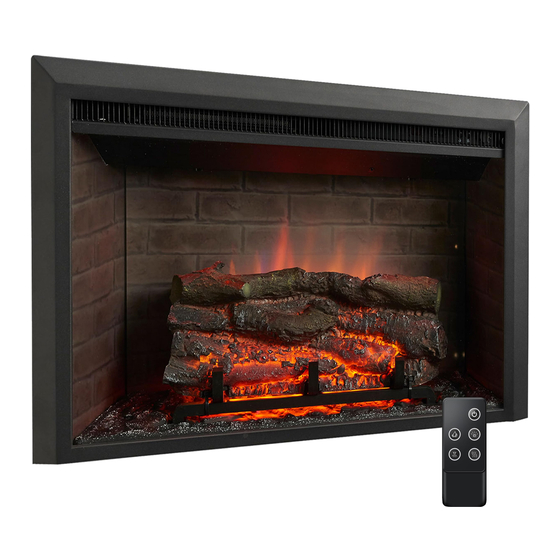

SimpliFire GI-32-ZC Installation Instructions

Leave this manual with party responsible for use
and operation.
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during instal-
lation. Sheet metal edges are sharp.
CAUTION! Do not install damaged components.
INTRODUCTION
The surround is an optional finishing method of the GI-32-
ZC. The surround is designed to overlap the opening of
the existing fireplace or constructed chase.
SURROUND KIT COMPONENTS
• (1) Top
• (1) Left Side
• (1) Right Side
• (1) Bottom
• (12) ST4X8 Screws
TOP
BOTTOM
Figure 1 Surround Components
SimpliFire • IS-36-GI32, IS-42-GI32 Installation Insructions • 2048-922 Rev. B • 10/22
IS-36-GI32, IS-42-GI32
Model: GI-32-ZC
Installation Instructions -
TOOLS NEEDED
• Magnetic Phillips Screwdriver
Surround Assembly
1. Remove the kit components from the packaging.
2. Attached Right and Left Sides to the Top using 8
screws. See Figure 2.
3. If 4-Sided surround is desired, leave the bottom side
unattached, and proceed to Surround Installation.
IF 4-SIDED SURROUND, WAIT TO ATTACH THE BOTTOM
UNTIL AFTER THE 3-SIDED ASSEMBLY HAS BEEN
INSTALLED ONTO THE APPLIANCE.
Figure 2 Surround Assembly
ATTACH USING
FOUR (4) SCREWS
1
