Waldorf PC8140G Installation And Operation Manual
Gas pasta cooker
Hide thumbs
Also See for PC8140G:
- Installation and operation manual (24 pages) ,
- Installation and operation manual (25 pages)
Related Manuals for Waldorf PC8140G
Summary of Contents for Waldorf PC8140G

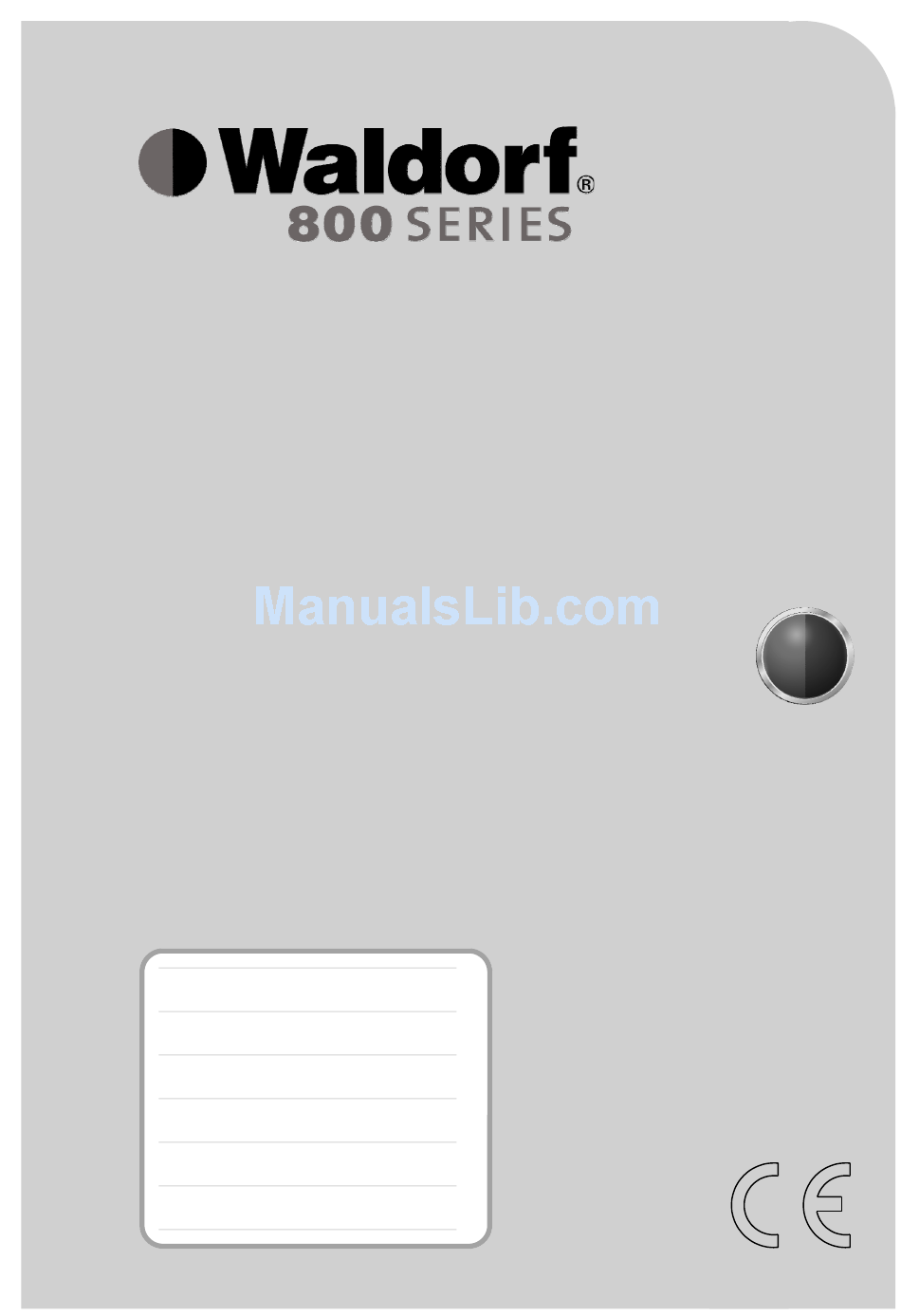

- Page 1 I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l Gas Pasta Cooker PC8140G PCL8140G Date Purchased Serial Number Dealer Service Provider For use in GB &...
- Page 2 MANUFACTURED BY Moffat Limited PO Box 10001 Christchurch New Zealand (03) 389 1007 Fax: (03) 389 1276 WORLD-WIDE BRANCHES UNITED KINGDOM Blue Seal 67 Gravelly Business Park Gravelly Park Birmingham West Midlands B24 8TQ (121) 327 5575 Fax: (121) 327 9711 UNITED STATES Moffat Inc 3765 Champion Blvd...
-
Page 3: Table Of Contents
Contents PC(L)8140G GAS PASTA COOKER (Single Tank - 40 Ltr) Introduction ..................... 2 Specifications ................... 3 Model Numbers Covered in this Specification General Optional Accessories Gas Supply Requirements Gas Connection Water Supply Requirements Dimensions ....................5 Installation ....................6 Installation Requirements Unpacking Location Clearances... -
Page 4: Introduction
Introduction We are confident that you will be delighted with your WALDORF GAS PASTA COOKER and it will become a most valued appliance in your commercial kitchen. To ensure you receive the utmost benefit from your new Waldorf appliance, there are two important things you can do. -
Page 5: Specifications
Specifications Model Numbers Covered in this Specification PC[1]8140G GAS PASTA COOKER (Single Tank - 40 Ltr) NOTE: [1]: - Back Options; - Standard Models. - Low Back Models. General A commercial heavy duty, gas fired high performance Pasta Cooker designed for pasta cooking commercial high production output, using LPG (Propane) or Natural Gas. -
Page 6: Water Supply Requirements
Specifications Gas Connection Gas supply connection point is located 190 mm from the right hand side, 36 mm from the rear of the appliance and 124 mm from the floor and is entered from beneath the appliance. An optional rear connection is available. -
Page 7: Dimensions
Dimensions PC(L)8140G... -
Page 8: Installation
Waldorf pasta cookers are designed to provide years of satisfactory service and correct installation is essential to achieve the best performance, efficiency and trouble-free operation. -
Page 9: Clearances
Installation All air for burner combustion is supplied from underneath the appliance. The legs must always be fitted and no obstructions placed on the underside or around the base of the appliance, as obstructions will cause incorrect operation and / or failure of the appliance. Components having adjustments protected (e.g. -
Page 10: Gas Connection
Gas Connection NOTE: ALL GAS FITTING MUST ONLY BE CARRIED OUT BY A QUALIFIED SERVICE PERSON. Waldorf Pasta Cookers do not require an electrical connection, they function totally on the gas supply only. It is essential that the gas supply is correct for the appliance to be installed and that adequate supply pressure and volume are available. -
Page 11: Water Connection
Installation Turn ‘OFF’ the mains gas supply and bleed the Burner Operating gas out of the appliance gas lines. Pressure Test Point Turn ‘ON’ the gas supply and the appliance. Verify the operating pressure remains correct Check the pilot flame size. (Re-adjust if Gas Control Valve required by changing the pilot injector. -
Page 12: Operation
/ operator. WALDORF 'Pasta Cookers have been designed to provide simplicity of operation and 100% safety protection. Improper operation is therefore almost impossible, however bad operation practices can produce a poor quality product. -
Page 13: Before Use
Operation WARNING: REAT CARE MUST BE TAKEN BY THE OPERATOR TO USE THE PASTA COOKER SAFELY TO GUARD AGAINST THE RISK OF INJURY AND FIRE • DO NOT LEAVE THE PASTA COOKER UNATTENDED DURING OPERATION • DO NOT OVER FILL THE WATER IN THE PASTA COOKER ABOVE THE UPPER FILL LEVEL MARK •... -
Page 14: Lighting The Pilot Burner
Operation Lighting the Pilot Burner AUTIO N Do NOT ignite the burner if the tank is empty (No Water). Ensure that the tank is filled to the correct level before igniting the main burner. With the pasta cooker tank full of water, the pilot burner can be lit. Check that the gas supply is turned on at the mains supply. -
Page 15: Cleaning And Maintenance
Cleaning and Maintenance WARNING: DO NOT USE FLAMMIBLE SOLVENTS AND CLEANING AIDS ON OR IN CLOSE PROXIMITY TO THE PASTA COOKER HOT. WHILST THE COOKER IS STILL AUTIO N Always turn off the gas supply at the mains supply before cleaning. This appliance is not water proof. -
Page 16: After Each Use
Cleaning and Maintenance Locking Slide Locking Slide Fig 6 Fig 5 After Each Use WARNING: HOT WATER WILL SCALD - DO NOT RUSH THIS JOB. Clean the interior of the pan regularly after each use. Do not use wire brushes on the pan. Clean using a mild detergent and a hot water solution using soft cloth or a soft bristled brush. -
Page 17: Weekly Cleaning
Cleaning and Maintenance Weekly Cleaning WARNING: DO NOT ATTEMPT TO MOVE THE PASTA COOKER WHILST THE COOKER IS FULL OF WATER. BEFORE ATTEMPTING TO MOVE THE PASTA COOKER, ENSURE THAT ALL THE WATER HAS BEEN DRAINED FROM THE TANK. REFER TO THE INFORMATION ON THE PREVIOUS PAGE ON HOW TO DRAIN THE WATER FROM THE PASTA COOKER. -
Page 18: Fault Finding
Fault Finding This section provides an easy reference guide to the more common problems that may occur during the operation of your equipment. The fault finding guide in this section is intended to help you correct, or at least accurately diagnose problems with your equipment. Although this section covers the most common problems reported, you may encounter a problem not covered in this section. -
Page 19: Wiring Schematic
Wiring Schematics PC8140G Pasta Cooker... -
Page 20: Gas Conversion And Specifications
Gas Conversion and Specifications Conversion Procedure AUTIO N Ensure the unit is isolated from the gas supply before commencing servicing. NOTE: • These conversions should only be carried out by qualified service persons. connections must be checked for leaks before re-commissioning the appliance. •... - Page 21 Gas Conversion and Specifications Low Fire Adjustment a. To adjust the burner low fire adjustment, adjust the Low Fire low fire adjustment screw on the open burner gas Adjusting Screw control valves to obtain the desired flame size. NOTE: The ‘Low Fire Screw’ should be sealed with coloured paint on completion of the low fire adjustment.
- Page 22 Gas Conversion and Specifications Commissioning Before leaving the converted installation; Check all gas connections for leakages using soapy water or other gas detecting equipment. WARNING: NAKED FLAME O NOT USE A TO CHECK FOR GAS LEAKAGES Check the following functions in accordance with the operating instructions specified in the ‘Operation’...
-
Page 23: Gas Specifications
Gas Conversion and Specifications Gas Specifications - Australia / New Zealand Only: Natural Gas. LP Gas (Propane) Main Burner Injectors Ø 3.10mm Ø 1.90mm Pilot Burner Injectors 0.62 0.35 Ø 1.55mm Ø 1.55mm Low Fire Screw 2 turns out (c.c.w.) Fully In (c.w.) Fully Out (c.c.w.) Fully Out (c.c.w.) -
Page 24: Replacement Parts List
Regulator (RV48CLM) - (Natural Gas/LPG - convertible) - ¾” BSP female. Gas Conversion Kits Gas Type to Convert to: Model Australia / New Zealand Only UK Only Nat. Gas Nat. Gas PC8140G 232061 232060 232061 232060 Accessories (Optional) 228793 Plinth Kit.
